COGIS - WELL SCOUT CARD

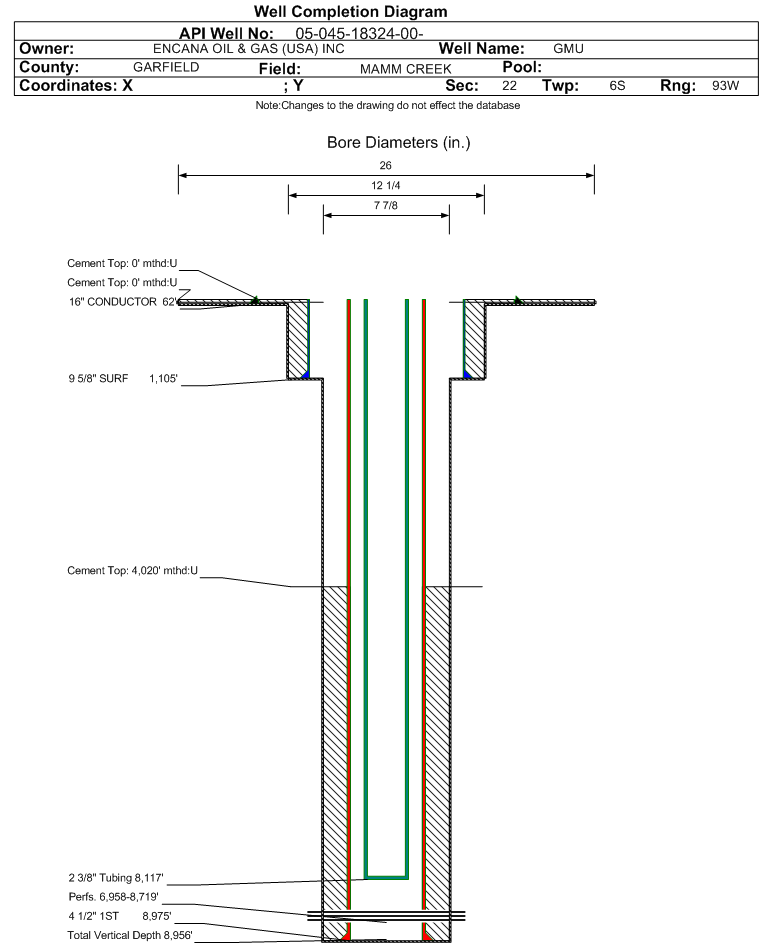

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-18324		Well Classification: GW Status: PR - 1/1/2019
Well Name/No:GMU #22-11 (K22NW)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC54736
Facility Status:PRStatus Date1/1/2019
FacilityID:301916LocationID:383334
County:GARFIELD #045Location:NESW 22 6S93W 6
Field:MAMM CREEK - #52500Elevation:6218 ft.
Basin:PICEANCE BASIN
Planned Location:1459FSL  2266 FWLLat/Long: 39.508556 / -107.763103Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.508573 / -107.763118Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/1/2019             Measured TD: 8985 ft.    Vertical TD: 8956 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/1/2019
Wellbore PermitDIRECTIONAL
Permit #:20090159 Expiration Date:3/8/2010
Proposed Top PZ Location:Sec:22 Twp: 6S 93W Footage: 1848 FSL  2050 FWL
Bottom Hole Location:Sec:22 Twp: 6S 93W Footage: 1960 FSL  1985 FWL
Proposed Depth/Form:9200 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit:GRASS MESA Unit Number:COC56608
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 40 ft., Weight: LINEPIPE , Citings Type: PLANNED
Cement:Sacks: 5, Top: 0 ft., Bottom: 40 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 925 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 249, Top: 0 ft., Bottom: 925 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 9226 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 1116, Top: 500 ft., Bottom: 9226 ft.
Wellbore Completed
Completion Date:4/5/2010
Spud Date:2/15/2010Spud Date Is:ACTUAL
Measured TD:8985 ft.Measured PB depth:8895 ft.
True Vertical TD:8956 ft.True Vertical PB depth:8866 ft.
Top PZ Location:Sec:22 Twp: 6S 93WFootage: 1848 FSL  2050 FWL
Bottom Hole Location:Sec:22 Twp: 6S 93WFootage: 1960 FSL  1985 FWL
Log Types:CBL & RST
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 62 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 0, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1105 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 379, Top: 0 ft., Bottom: 1115 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8975 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 992, Top: 4020 ft., Bottom: 8976 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK5104 ft.8823 ft.
ROLLINS8824 ft.8958 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 1/1/2019                  Interval Top: 6958 ft.    Interval Bottom: 8719 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:7/14/2010Choke Size:
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:6/21/2010
Treatment Summary:STAGES 1-8 TREATED WITH A TOTAL OF 66,485 BBLS OF SLICKWATER.
Tubing Size:2.375 in.Tubing Setting Depth:8117 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/26/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 552
BTU_GAS 1170
CALC_BBLS_H2O 552
CALC_MCF_GAS 580
CASING_PRESS 1500
MCF_GAS 580
TUBING_PRESS 440
Perforation Data:
Interval Top:6958 ft.# Of Holes:216
Interval Bottom:8719 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)116
Total Gas Produced (MCF)18164
GOR156586
GOR DeterminationMCFE
Average BOE per Day8.911
Average MCFE per Day51.682

 Federal Financial Assurance  i Y

 Tribal Well  i No
