Wellbore #00 Wellbore Classification: GW Status: PR - 4/1/2025 Measured TD: 9940 ft. Vertical TD: 9927 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20090161 | Expiration Date: | 3/8/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1320 FSL 2000 FWL | | Bottom Hole Location: | Sec:22 Twp: 6S 93W | Footage: 1320 FSL 2000 FWL | | Proposed Depth/Form: | 9005 ft. | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | GRASS MESA | Unit Number: | COC56608 | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 40 ft., Weight: LINEPIPE , Citings Type: PLANNED | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 902 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 242, Top: 0 ft., Bottom: 902 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 9015 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 1086, Top: 500 ft., Bottom: 9015 ft. |
| | |

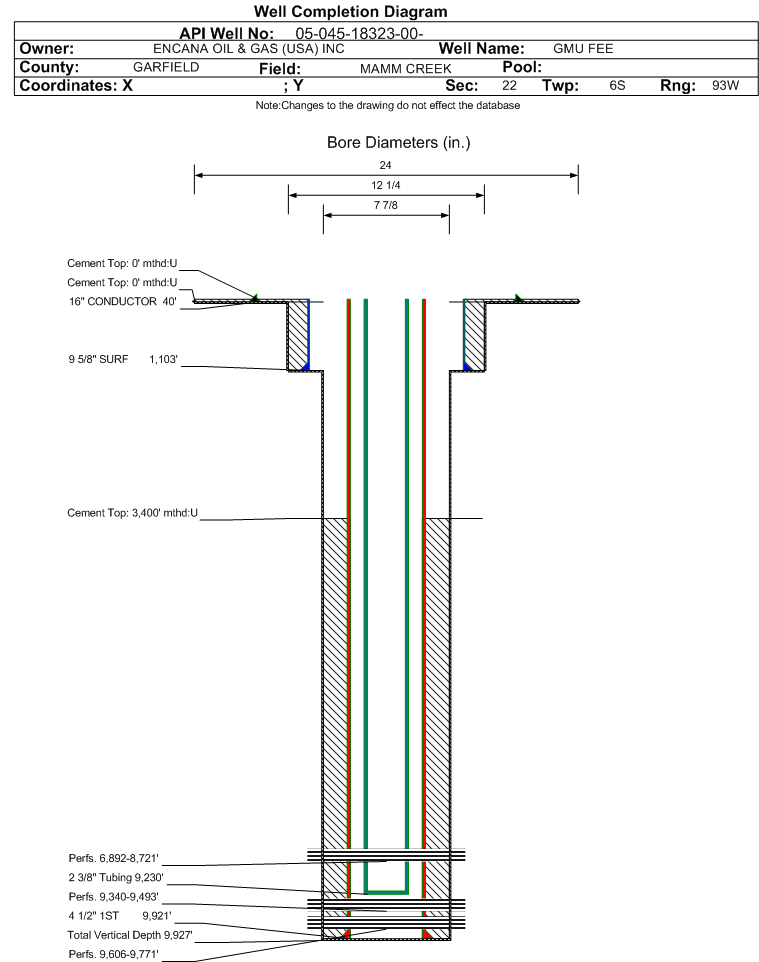

| Wellbore Completed | | Completion Date: | 4/15/2010 | | Spud Date: | 2/12/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 9940 ft. | Measured PB depth: | 9876 ft. | | True Vertical TD: | 9927 ft. | True Vertical PB depth: | 9863 ft. | | Top PZ Location: | Sec:22 Twp: 6S 93W | Footage: 1339 FSL 2076 FWL | | Bottom Hole Location: | Sec:22 Twp: 6S 93W | Footage: 1275 FSL 1980 FWL | | Log Types: | CBL AND RST. | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 4, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1103 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 379, Top: 0 ft., Bottom: 1115 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9921 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1070, Top: 3400 ft., Bottom: 9921 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 5063 ft. | 9330 ft. | | | | COZZETTE | 9331 ft. | 9598 ft. | | | | CORCORAN | 9599 ft. | 9935 ft. | | |
Formation CRCRN Formation Classification: GW Status: PR - 4/1/2025 Interval Top: 9606 ft. Interval Bottom: 9771 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 7/10/2010 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 8/7/2010 | | Treatment Summary: | STAGES 1 TREATED WITH A TOTAL OF: 11207 BBLS OF SLICKWATER, 120000 BLS 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9230 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/7/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 690 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 690 | | CALC_MCF_GAS | 1184 | | CASING_PRESS | 1840 | | MCF_GAS | 1184 | | TUBING_PRESS | 930 |
| | Perforation Data: | | Interval Top: | 9606 ft. | # Of Holes: | 24 | | Interval Bottom: | 9771 ft. | Hole Size: | 0.34 in. |
|
Formation COZZ Formation Classification: GW Status: PR - 4/1/2025 Interval Top: 9340 ft. Interval Bottom: 9493 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 7/10/2010 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 8/7/2010 | | Treatment Summary: | STAGES 2 TREATED WITH A TOTAL OF : 10,662 BBLS OF SLICKWATER; 928,000 LBS 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9230 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/7/2010 | Test Method: | SOLD | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 690 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 690 | | CALC_MCF_GAS | 1184 | | CASING_PRESS | 1840 | | MCF_GAS | 1184 | | TUBING_PRESS | 930 |
| | Perforation Data: | | Interval Top: | 9340 ft. | # Of Holes: | 27 | | Interval Bottom: | 9493 ft. | Hole Size: | 0.34 in. |
|
Formation WMFK Formation Classification: GW Status: PR - 4/1/2025 Interval Top: 6892 ft. Interval Bottom: 8721 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 7/10/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 6/21/2010 | | Treatment Summary: | STAGES 3-10 TREATED WITH A TOTAL OF 72803 BBLS OF SLICKWATER, 766200 LBS 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9230 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/7/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 690 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 690 | | CALC_MCF_GAS | 1184 | | CASING_PRESS | 1840 | | MCF_GAS | 1184 | | TUBING_PRESS | 930 |
| | Perforation Data: | | Interval Top: | 6892 ft. | # Of Holes: | 216 | | Interval Bottom: | 8721 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 49 |
| Total Gas Produced (MCF) | 8063 |
| GOR | 164551 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.928 |
| Average MCFE per Day | 22.818 |
| Federal Financial Assurance | i | Y |
|
|
