Wellbore #00 Wellbore Classification: GW Status: PR - 8/1/2019 Measured TD: 8326 ft. Vertical TD: 8277 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/1/2019 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20088547 | Expiration Date: | 2/25/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1834 FSL 2305 FEL | | Bottom Hole Location: | Sec:9 Twp: 6S 96W | Footage: 1834 FSL 2305 FEL | | Proposed Depth/Form: | 10042 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: , Drill Unit: |
| | |

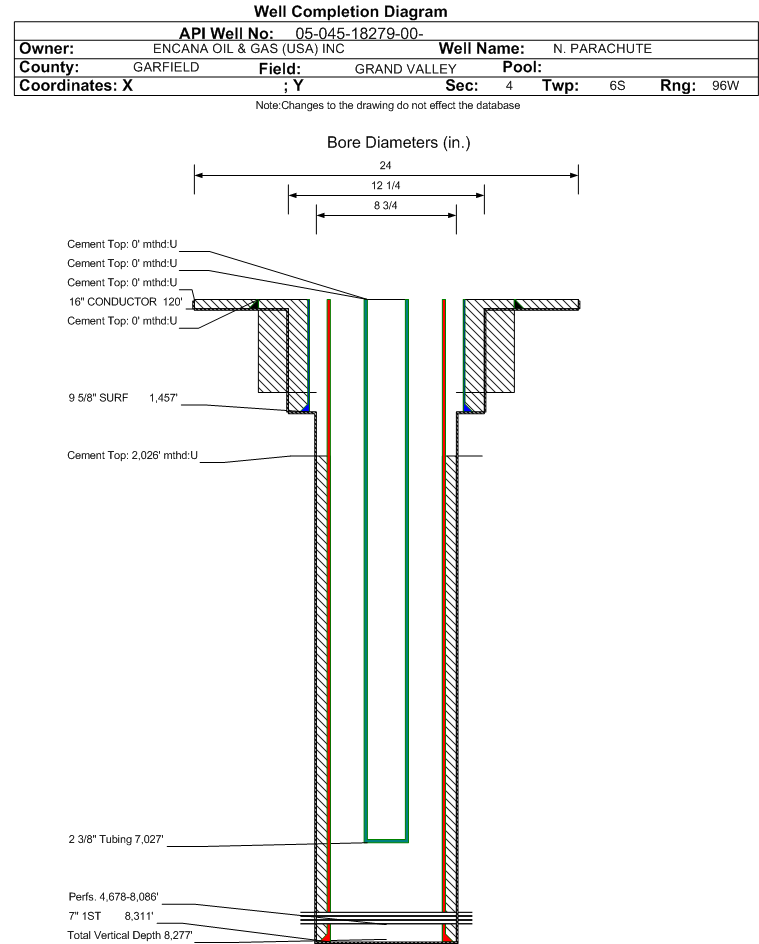

| Wellbore Completed | | Completion Date: | 7/21/2009 | | Spud Date: | 6/24/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 8326 ft. | Measured PB depth: | 8286 ft. | | True Vertical TD: | 8277 ft. | True Vertical PB depth: | 8237 ft. | | Top PZ Location: | Sec:4 Twp: 6S 96W | Footage: 1840 FSL 2292 FEL | | Bottom Hole Location: | Sec:4 Twp: 6S 96W | Footage: 1840 FSL 2292 FEL | | Log Types: | CBL,MUD,RST,ARRAY INDUCTION | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 390, Top: 0 ft., Bottom: 1203 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1457 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 332, Top: 0 ft., Bottom: 1457 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 8311 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 611, Top: 2026 ft., Bottom: 8311 ft., Determination Method: CBL | | Casing: | String Type: 3RD, Hole Size: , Size: , Top: 0 ft., Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Casing: | String Type: 1ST LINER, Hole Size: , Size: , Top: 0 ft., Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 4669 ft. | 8132 ft. | N | N | | ROLLINS | 8132 ft. | 8326 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 8/1/2019 Interval Top: 4678 ft. Interval Bottom: 8086 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 11/25/2009 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/15/2009 | | Treatment Summary: | STAGES 01-14 TREATED WITH A TOTAL OF : 105287 BBLS OF SLICKWATER, 23000 LBS 20-40 OPTIPROP, 354000 LBS 20-40 SAND, 157000 LBS 30-50 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7027 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/30/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1170 | | CALC_MCF_GAS | 1610 | | CASING_PRESS | 1372 | | MCF_GAS | 1610 | | TUBING_PRESS | 711 |
| | Perforation Data: | | Interval Top: | 4678 ft. | # Of Holes: | 840 | | Interval Bottom: | 8086 ft. | Hole Size: | 0.46 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 118 |
| Total Gas Produced (MCF) | 21845 |
| GOR | 185127 |
| GOR Determination | MCFE |
| Average BOE per Day | 10.656 |
| Average MCFE per Day | 61.797 |
| Federal Financial Assurance | i | |
|
|
