Wellbore #00 Wellbore Classification: GW Status: PR - 4/16/2011 Measured TD: 10062 ft. Vertical TD: 9957 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/16/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 2/29/2012 | | Proposed Top PZ Location: | Sec:5 Twp: 7S 93W | Footage: 936 FNL 1714 FEL | | Bottom Hole Location: | Sec:5 Twp: 7S 93W | Footage: 936 FNL 1714 FEL | | Proposed Depth/Form: | 10054 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-76 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1106 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 1106 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 10054 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 775, Top: , Bottom: 10054 ft. |
| | |

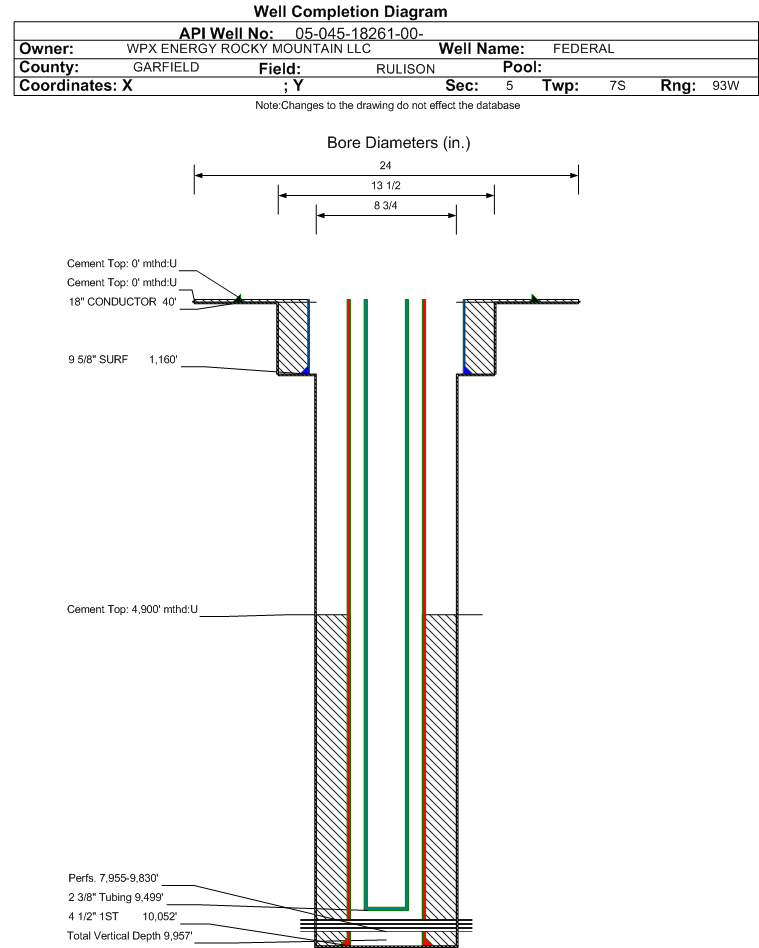

| Wellbore Completed | | Completion Date: | 10/22/2010 | | Spud Date: | 10/12/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 10062 ft. | Measured PB depth: | 10019 ft. | | True Vertical TD: | 9957 ft. | True Vertical PB depth: | 9914 ft. | | Top PZ Location: | Sec:5 Twp: 7S 93W | Footage: 921 FNL 1655 FEL | | Bottom Hole Location: | Sec:5 Twp: 7S 93W | Footage: 933 FNL 1670 FEL | | Log Types: | RPM AND CBL, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 15, Top: 0 ft., Bottom: 40 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1160 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 1160 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10052 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1030, Top: 4900 ft., Bottom: 10052 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 3603 ft. | | | | | MESAVERDE | 6295 ft. | | | | | CAMEO | 9076 ft. | | | | | ROLLINS | 9929 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 1/22/2011 Interval Top: 7955 ft. Interval Bottom: 9830 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/19/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 11/16/2010 | | Treatment Summary: | 4517 GALS 7 1/2% HCL; 1120300 # 20/40 SAND; 25964 BBLS SLICKWATER (SUMMARY). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9499 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/22/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1130 | | CASING_PRESS | 2594 | | MCF_GAS | 533 | | TUBING_PRESS | 2186 |
| | Perforation Data: | | Interval Top: | 7955 ft. | # Of Holes: | 155 | | Interval Bottom: | 9830 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 119 |
| Total Gas Produced (MCF) | 21896 |
| GOR | 184000 |
| GOR Determination | MCFE |
| Average BOE per Day | 10.674 |
| Average MCFE per Day | 61.896 |
| Federal Financial Assurance | i | Y |
|
|
