COGIS - WELL SCOUT CARD

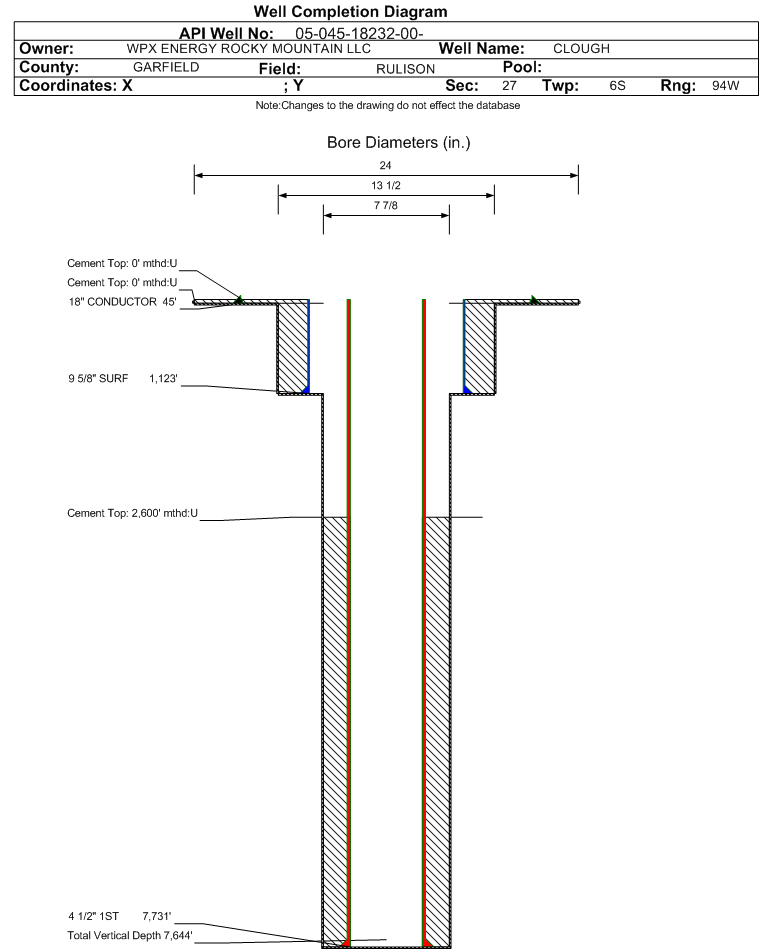

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-18232		Well Classification: GW Status: PR - 8/1/2010
Well Name/No:CLOUGH #RWF 42-27
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:CACOC56657
Facility Status:PRStatus Date8/1/2010
FacilityID:301697LocationID:324065
County:GARFIELD #045Location:SWNE 27 6S94W 6
Field:RULISON - #75400Elevation:5129 ft.
Basin:PICEANCE BASIN
Planned Location:1745FNL  2192 FELLat/Long: 39.498714 / -107.872717Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.498713 / -107.872718Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/1/2010             Measured TD: 7755 ft.    Vertical TD: 7644 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/1/2010
Wellbore PermitDIRECTIONAL
Permit #:20088286 Expiration Date:2/23/2010
Proposed Top PZ Location:Sec: Twp: Footage: 1824 FNL  923 FEL
Bottom Hole Location:Sec:27 Twp: 6S 94W Footage: 1766 FNL  1174 FEL
Proposed Depth/Form:7829 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-66 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:9/24/2009
Spud Date:9/15/2009Spud Date Is:ACTUAL
Measured TD:7755 ft.Measured PB depth:
True Vertical TD:7644 ft.True Vertical PB depth:
Bottom Hole Location:Sec: Twp: Footage:  FNL   FEL
Log Types:CBL, HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON, MUD
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1123 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 1123 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7731 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1400, Top: 2600 ft., Bottom: 7731 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1350 ft.NN
MESAVERDE3932 ft.NN
CAMEO6683 ft.NN
ROLLINS7659 ft.NN
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)45
Total Gas Produced (MCF)25267
GOR561488
GOR DeterminationMCFE
Average BOE per Day12.078
Average MCFE per Day70.042

 Federal Financial Assurance  i

 Tribal Well  i No
