Wellbore #00 Wellbore Classification: GW Status: PR - 4/16/2011 Measured TD: 7450 ft. Vertical TD: 7122 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/16/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 5/8/2011 | | Proposed Top PZ Location: | Sec:27 Twp: 6S 96W | Footage: 687 FNL 1950 FEL | | Bottom Hole Location: | Sec:27 Twp: 6S 96W | Footage: 687 FNL 1950 FEL | | Proposed Depth/Form: | 7460 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-17 , Unit Acreage: 320, Drill Unit: N/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 956 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 335, Top: 0 ft., Bottom: 956 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7460 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 560, Top: , Bottom: 7460 ft. |
| | |

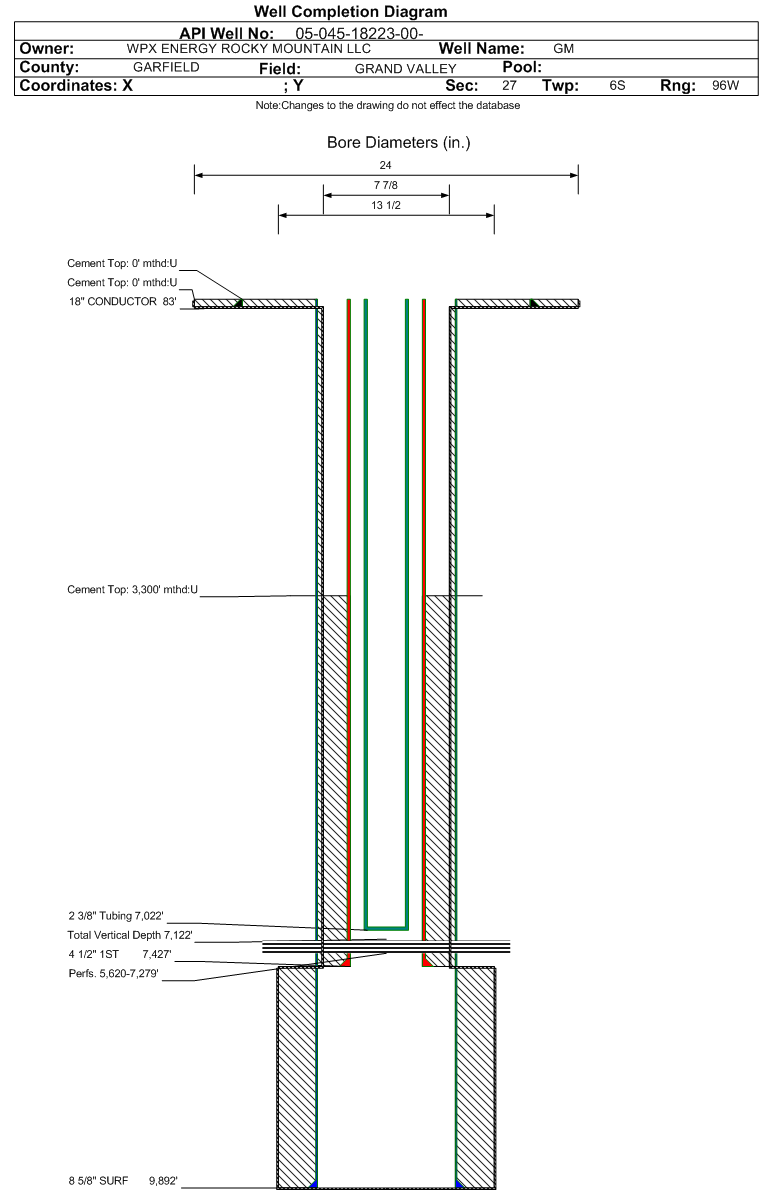

| Wellbore Completed | | Completion Date: | 9/12/2010 | | Spud Date: | 9/5/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 7450 ft. | Measured PB depth: | 7374 ft. | | True Vertical TD: | 7122 ft. | True Vertical PB depth: | 7046 ft. | | Top PZ Location: | Sec:27 Twp: 6S 96W | Footage: 677 FNL 1937 FEL | | Bottom Hole Location: | Sec:27 Twp: 6S 96W | Footage: 685 FNL 1947 FEL | | Log Types: | CBL & RESERVOIR PERFORMANCE MONITOR (RPM), HIGH DEFINITION INDUCTION LOG, COMPENSATED Z DENSILOG, COMPENSATED NEUTRON LOG, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 83 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 31, Top: 0 ft., Bottom: 83 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 8.625 in., Top: 0 ft., Depth: 9892 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 280, Top: 0 ft., Bottom: 9892 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7427 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 790, Top: 3300 ft., Bottom: 7427 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 2262 ft. | | | | | MESAVERDE | 4229 ft. | | | | | CAMEO | 6920 ft. | | | | | ROLLINS | 7337 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 12/31/2010 Interval Top: 5620 ft. Interval Bottom: 7279 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 10/22/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/22/2010 | | Treatment Summary: | 3058 GALS 7 1/2% HCL; 5542084 40/70 SAND; 21028 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7022 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/31/2010 | Test Method: | FLOWING | | Hours Tested: | 21 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1057 | | CASING_PRESS | 1973 | | MCF_GAS | 1302 | | TUBING_PRESS | 1820 |
| | Perforation Data: | | Interval Top: | 5620 ft. | # Of Holes: | 123 | | Interval Bottom: | 7279 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 30 |
| Total Gas Produced (MCF) | 16240 |
| GOR | 541333 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.748 |
| Average MCFE per Day | 44.974 |
| Federal Financial Assurance | i | Y |
|
|
