Wellbore #00 Wellbore Classification: GW Status: PR - 4/16/2011 Measured TD: 7948 ft. Vertical TD: 7121 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/16/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 5/8/2011 | | Proposed Top PZ Location: | Sec:27 Twp: 6S 96W | Footage: 905 FNL 1303 FWL | | Bottom Hole Location: | Sec:27 Twp: 6S 96W | Footage: 905 FNL 1303 FWL | | Proposed Depth/Form: | 7838 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-17 , Unit Acreage: 320, Drill Unit: N/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1213 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 425, Top: 0 ft., Bottom: 1213 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7838 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 570, Top: , Bottom: 7838 ft. |
| | |
| Wellbore Completed | | Completion Date: | 11/21/2010 | | Spud Date: | 10/5/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 7948 ft. | Measured PB depth: | 7869 ft. | | True Vertical TD: | 7121 ft. | True Vertical PB depth: | 7042 ft. | | Top PZ Location: | Sec:27 Twp: 6S 96W | Footage: 888 FNL 1298 FWL | | Bottom Hole Location: | Sec:27 Twp: 6S 96W | Footage: 899 FNL 1298 FWL | | Log Types: | CBL AND RESERVOIR PERFORMANCE MONITOR (RPM), MUD

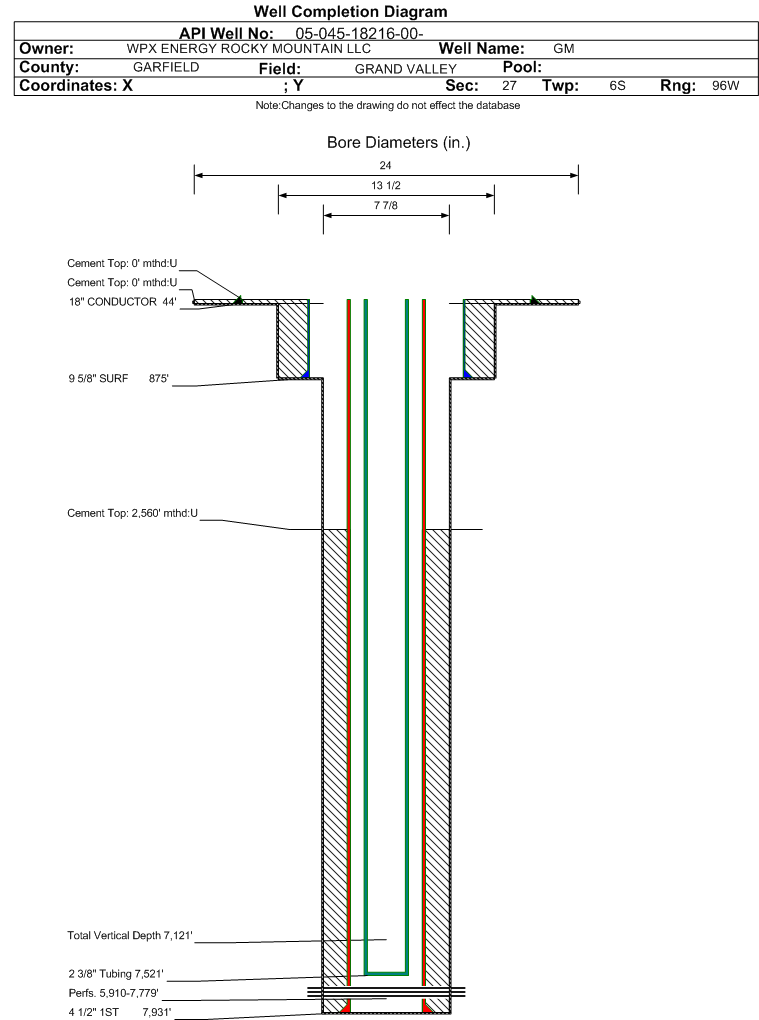

| | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 44 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 17, Top: 0 ft., Bottom: 44 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 875 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 325, Top: 0 ft., Bottom: 875 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7931 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 875, Top: 2560 ft., Bottom: 7931 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2397 ft. | | | | | MESAVERDE | 4671 ft. | | | | | CAMEO | 7357 ft. | | | | | ROLLINS | 7844 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 2/28/2011 Interval Top: 5910 ft. Interval Bottom: 7779 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/21/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 11/20/2010 | | Treatment Summary: | 4506 GALS OF 7 1/2% HCL; 1213500# OF 30/50 SAND; 34341 BBLS SLICKWATER (SUMMARY). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7521 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/28/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1063 | | CASING_PRESS | 1776 | | MCF_GAS | 1115 | | TUBING_PRESS | 1651 |
| | Perforation Data: | | Interval Top: | 5910 ft. | # Of Holes: | 204 | | Interval Bottom: | 7779 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 40 |
| Total Gas Produced (MCF) | 22246 |
| GOR | 556150 |
| GOR Determination | MCFE |
| Average BOE per Day | 10.628 |
| Average MCFE per Day | 61.629 |
| Federal Financial Assurance | i | |
|
|
