Wellbore #00 Wellbore Classification: GW Status: PR - 4/16/2011 Measured TD: 7355 ft. Vertical TD: 7153 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/16/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 5/8/2011 | | Proposed Top PZ Location: | Sec:27 Twp: 6S 96W | Footage: 2485 FNL 2216 FWL | | Bottom Hole Location: | Sec:27 Twp: 6S 96W | Footage: 2485 FNL 2216 FWL | | Proposed Depth/Form: | 7263 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-17 , Unit Acreage: 320, Drill Unit: N/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 726 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 255, Top: 0 ft., Bottom: 726 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7263 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 555, Top: , Bottom: 7263 ft. |
| | |
| Wellbore Completed | | Completion Date: | 11/21/2010 | | Spud Date: | 11/14/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 7355 ft. | Measured PB depth: | 7311 ft. | | True Vertical TD: | 7153 ft. | True Vertical PB depth: | 7109 ft. | | Top PZ Location: | Sec:27 Twp: 6S 96W | Footage: 2472 FNL 2228 FWL | | Bottom Hole Location: | Sec:27 Twp: 6S 96W | Footage: 2498 FNL 2209 FWL | | Log Types: | GAMMA RAY, HIGH DEFINITION INDUCTION LOG, COMPENSATED Z-DENSILOG, COMPENSATED NEUTRON LOG, AND CBL, MUD

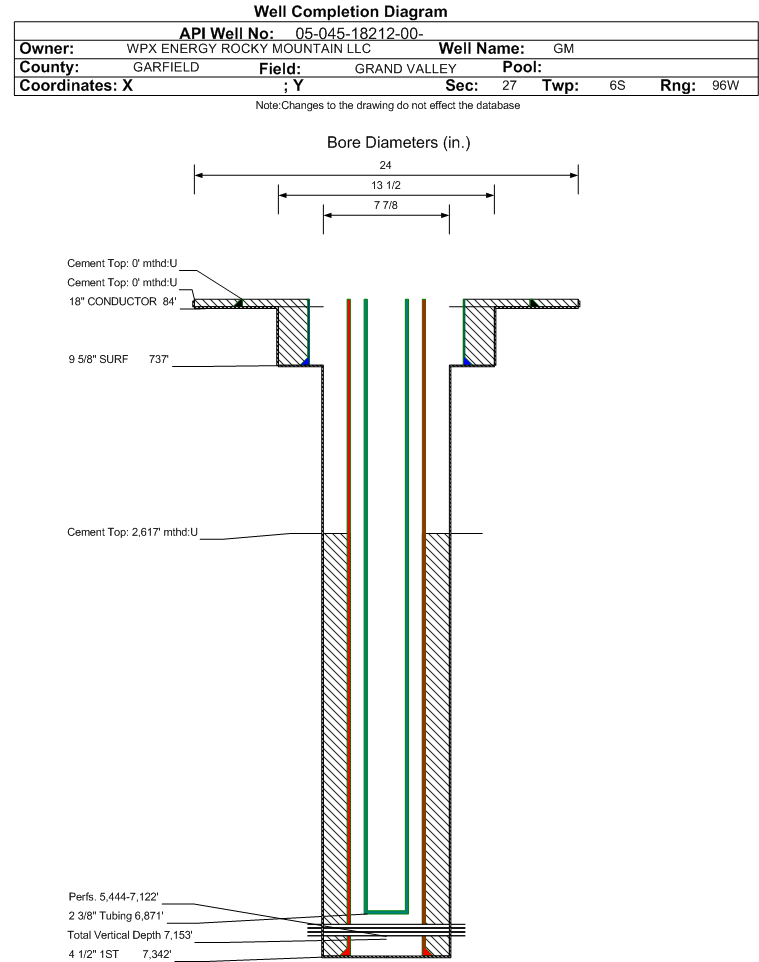

FORM 5A DOC # 2285316 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 84 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 32, Top: 0 ft., Bottom: 84 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 737 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 0 ft., Bottom: 737 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7342 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 820, Top: 2617 ft., Bottom: 7342 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2213 ft. | | | | | MESAVERDE | 4091 ft. | | | | | CAMEO | 6739 ft. | | | | | ROLLINS | 7208 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 2/28/2011 Interval Top: 5444 ft. Interval Bottom: 7122 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 12/24/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 12/23/2010 | | Treatment Summary: | 3538 GALS OF 7 1/2% HCL; 686300# OF 30/50 SAND; 20876 BBLS SLICKWATER (SUMMARY). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6871 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/28/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1067 | | CASING_PRESS | 1218 | | MCF_GAS | 1341 | | TUBING_PRESS | 1088 |
| | Perforation Data: | | Interval Top: | 5444 ft. | # Of Holes: | 117 | | Interval Bottom: | 7122 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 40 |
| Total Gas Produced (MCF) | 21543 |
| GOR | 538575 |
| GOR Determination | MCFE |
| Average BOE per Day | 10.287 |
| Average MCFE per Day | 59.666 |
| Federal Financial Assurance | i | Y |
|
|
