COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-18193		Well Classification: GW Status: PR - 1/31/2010
Well Name/No:BATTLEMENT MESA #PA 14-5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/31/2010
FacilityID:301584LocationID:334825
County:GARFIELD #045Location:NWSE 5 7S95W 6
Field:PARACHUTE - #67350Elevation:5104 ft.
Basin:PICEANCE BASIN
Planned Location:1795FSL  2310 FELLat/Long: 39.464462 / -108.020208Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.464465 / -108.020203Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/31/2010             Measured TD: 7155 ft.    Vertical TD: 6407 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/31/2010
Wellbore PermitDIRECTIONAL
Permit #:20088155 Expiration Date:2/16/2010
Proposed Top PZ Location:Sec: Twp: Footage: 1301 FSL  662 FWL
Bottom Hole Location:Sec:5 Twp: 7S 95W Footage: 1301 FSL  662 FWL
Proposed Depth/Form:7188 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-36 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:10/13/2009
Spud Date:10/7/2009Spud Date Is:ACTUAL
Measured TD:7155 ft.Measured PB depth:7014 ft.
True Vertical TD:6407 ft.True Vertical PB depth:6266 ft.
Top PZ Location:Sec:5 Twp: 7S 95WFootage: 1295 FSL  673 FWL
Bottom Hole Location:Sec:5 Twp: 7S 95WFootage: 1295 FSL  673 FWL
Log Types:CBL, RESERVOIR TOOL ELITE, MUD

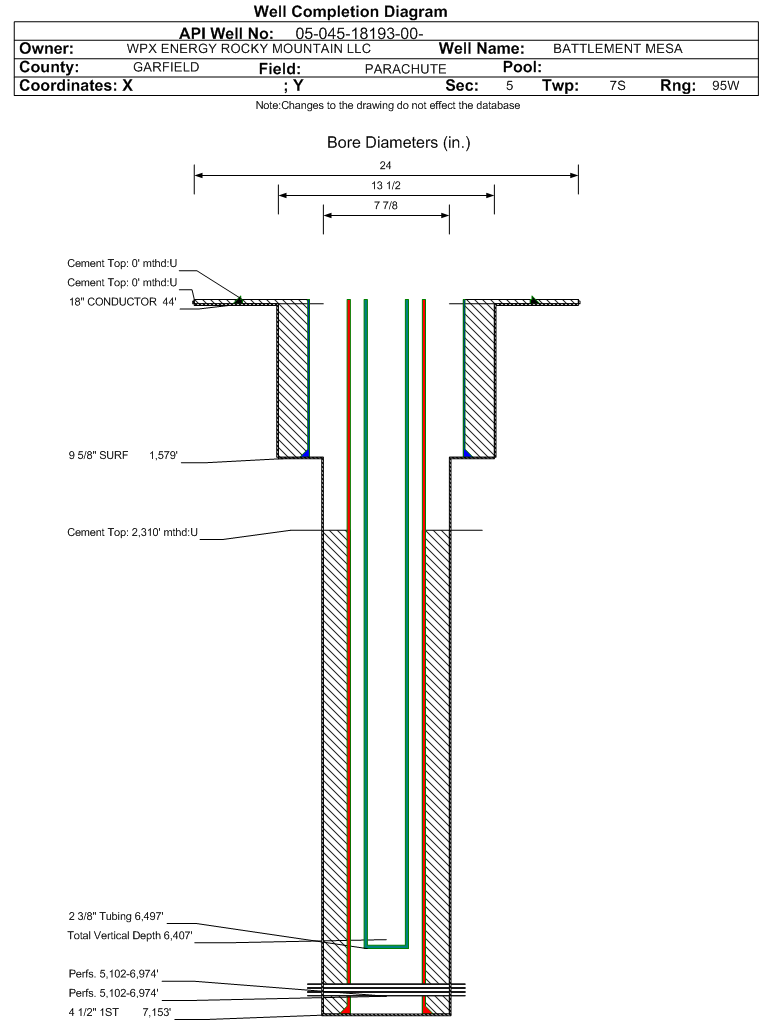

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 44 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 16, Top: 0 ft., Bottom: 44 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1579 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 395, Top: 0 ft., Bottom: 1579 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7153 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 820, Top: 2310 ft., Bottom: 7153 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1634 ft.NN
MESAVERDE3901 ft.NN
CAMEO6494 ft.NN
ROLLINS7066 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 1/31/2010                 Interval Top: 5102 ft.    Interval Bottom: 6974 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:11/17/2009Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/13/2009
Treatment Summary:4026 GALS 7 1/2 % HCL; 770000 # 20/40 SAND; 21427 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:6497 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/31/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1063
CASING_PRESS 1311
MCF_GAS 1014
TUBING_PRESS 1135
Perforation Data:
Interval Top:5102 ft.# Of Holes:134
Interval Bottom:6974 ft.Hole Size:0.35 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 4/16/2011                 Interval Top: 5102 ft.    Interval Bottom: 6974 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:11/17/2009Choke Size:0.188 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/13/2009
Treatment Summary:4026 GALS 7 1/2% HCL: 770000# 20/40 SAND; 21427 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:6497 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/31/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1063
CALC_GOR 0
CASING_PRESS 1311
MCF_GAS 1014
TUBING_PRESS 1135
Perforation Data:
Interval Top:5102 ft.# Of Holes:134
Interval Bottom:6974 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)31
Total Gas Produced (MCF)24332
GOR784903
GOR DeterminationMCFE
Average BOE per Day11.589
Average MCFE per Day67.185

 Federal Financial Assurance  i

 Tribal Well  i No
