COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-18184		Well Classification: GW Status: PR - 2/28/2010
Well Name/No:BATTLEMENT MESA #PA 423-5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/28/2010
FacilityID:301575LocationID:334825
County:GARFIELD #045Location:NWSE 5 7S95W 6
Field:PARACHUTE - #67350Elevation:5104 ft.
Basin:PICEANCE BASIN
Planned Location:1797FSL  2297 FELLat/Long: 39.464466 / -108.020164Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.464467 / -108.020159Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/28/2010             Measured TD: 6485 ft.    Vertical TD: 6409 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/28/2010
Wellbore PermitDIRECTIONAL
Permit #:20088144 Expiration Date:2/12/2010
Proposed Top PZ Location:Sec: Twp: Footage: 1532 FSL  2312 FWL
Bottom Hole Location:Sec:5 Twp: 7S 95W Footage: 1532 FSL  2312 FWL
Proposed Depth/Form:6540 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-36 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:10/25/2009
Spud Date:10/19/2009Spud Date Is:ACTUAL
Measured TD:6485 ft.Measured PB depth:6403 ft.
True Vertical TD:6409 ft.True Vertical PB depth:6327 ft.
Top PZ Location:Sec:5 Twp: 7S 95WFootage: 1537 FSL  2314 FWL
Bottom Hole Location:Sec:5 Twp: 7S 95WFootage: 1537 FSL  2314 FWL
Log Types:CBL, HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL NEUTRON, MUD

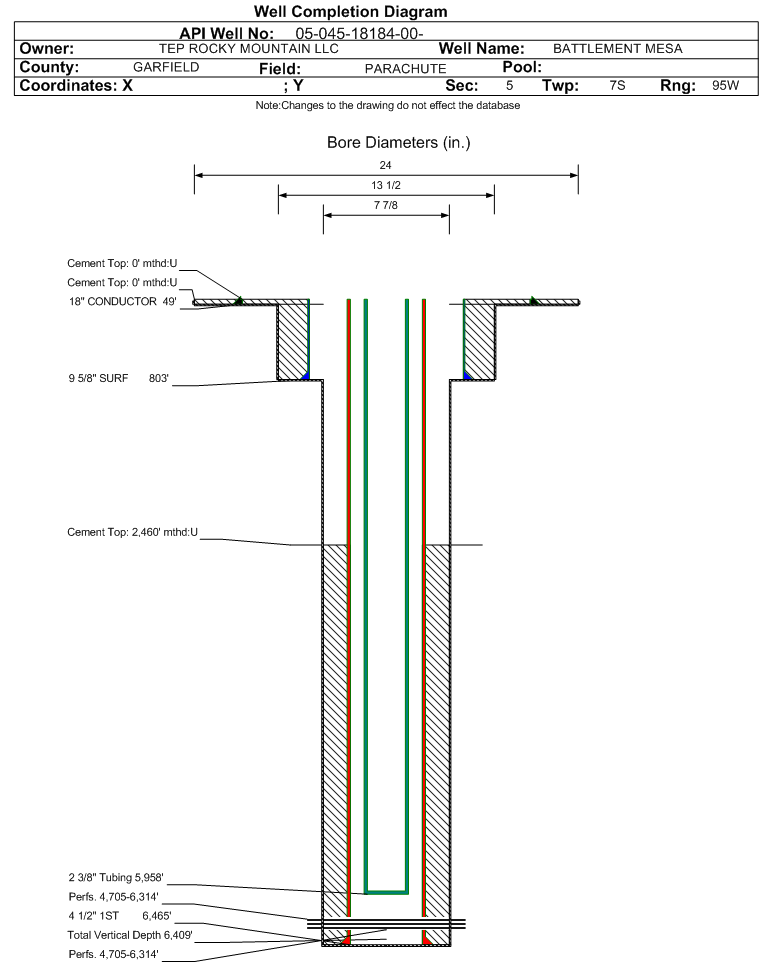

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 49 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 18, Top: 0 ft., Bottom: 49 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 803 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 803 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6465 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 785, Top: 2460 ft., Bottom: 6465 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1243 ft.NN
MESAVERDE3353 ft.NN
CAMEO5837 ft.NN
ROLLINS6390 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/28/2010                 Interval Top: 4705 ft.    Interval Bottom: 6314 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/22/2009Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:12/18/2009
Treatment Summary:2998 GALS 7 1/2 % HCL; 654200 # 20/40 SAND; 18056 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:5958 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/28/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1088
CASING_PRESS 812
MCF_GAS 874
TUBING_PRESS 614
Perforation Data:
Interval Top:4705 ft.# Of Holes:118
Interval Bottom:6314 ft.Hole Size:0.35 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 2/1/2011                  Interval Top: 4705 ft.    Interval Bottom: 6314 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:12/22/2009Choke Size:0.156 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/18/2009
Treatment Summary:2998 GALS 7 1/2% HCL; 654200 #20/40 SAND; 18056 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:5958 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/28/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BTU_GAS 1088
CASING_PRESS 812
MCF_GAS 874
TUBING_PRESS 614
Perforation Data:
Interval Top:4705 ft.# Of Holes:118
Interval Bottom:6314 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)20
Total Gas Produced (MCF)15526
GOR776300
GOR DeterminationMCFE
Average BOE per Day7.383
Average MCFE per Day42.864

 Federal Financial Assurance  i

 Tribal Well  i No
