Wellbore #00 Wellbore Classification: GW Status: PR - 4/16/2011 Measured TD: 9198 ft. Vertical TD: 9018 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/16/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 4/5/2011 | | Proposed Top PZ Location: | Sec:20 Twp: 6S 95W | Footage: 461 FNL 2034 FEL | | Bottom Hole Location: | Sec:20 Twp: 6S 95W | Footage: 461 FNL 2034 FEL | | Proposed Depth/Form: | 9183 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-31 , Unit Acreage: 320, Drill Unit: N/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: , Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1088 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 379, Top: , Bottom: 1088 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 9183 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 618, Top: 200 ft., Bottom: 9183 ft. |
| | |

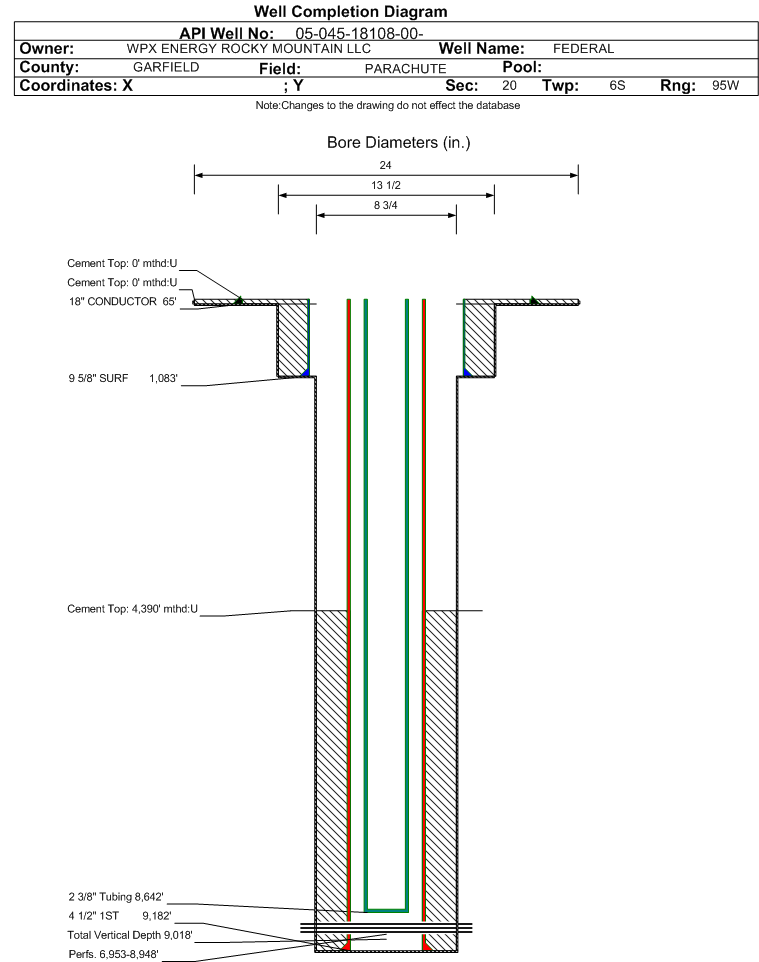

| Wellbore Completed | | Completion Date: | 8/29/2010 | | Spud Date: | 8/20/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 9198 ft. | Measured PB depth: | 9095 ft. | | True Vertical TD: | 9018 ft. | True Vertical PB depth: | 8915 ft. | | Top PZ Location: | Sec:20 Twp: 6S 95W | Footage: 444 FNL 2022 FEL | | Bottom Hole Location: | Sec:20 Twp: 6S 95W | Footage: 454 FNL 2049 FEL | | Log Types: | CBL, mud AND RESERVOIR PERFORMANCE MONITOR (RPM) | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 65 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 23, Top: 0 ft., Bottom: 65 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1083 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 330, Top: 0 ft., Bottom: 1083 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9182 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1175, Top: 4390 ft., Bottom: 9182 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 3335 ft. | | | | | MESAVERDE | 5587 ft. | | | | | CAMEO | 8215 ft. | | | | | ROLLINS | 9009 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 12/11/2010 Interval Top: 6953 ft. Interval Bottom: 8948 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/5/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 11/3/2010 | | Treatment Summary: | 5485 GALS 7 1/2% HCL; 894,098# 30/50 SAND; 546,700# 100-MESH; 38,397 BBLS SLICKWATER (SUMMARY). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8642 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/11/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1073 | | CASING_PRESS | 2099 | | MCF_GAS | 826 | | TUBING_PRESS | 1537 |
| | Perforation Data: | | Interval Top: | 6953 ft. | # Of Holes: | 166 | | Interval Bottom: | 8948 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 15 |
| Total Gas Produced (MCF) | 6886 |
| GOR | 459066 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.295 |
| Average MCFE per Day | 19.104 |
| Federal Financial Assurance | i | Y |
|
|
