Wellbore #00 Wellbore Classification: GW Status: PR - 2/16/2011 Measured TD: 9180 ft. Vertical TD: 8395 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/16/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 12/22/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1255 FSL 258 FEL | | Bottom Hole Location: | Sec:21 Twp: 6S 95W | Footage: 1255 FSL 258 FEL | | Proposed Depth/Form: | 9263 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: , Drill Unit: |
| | |

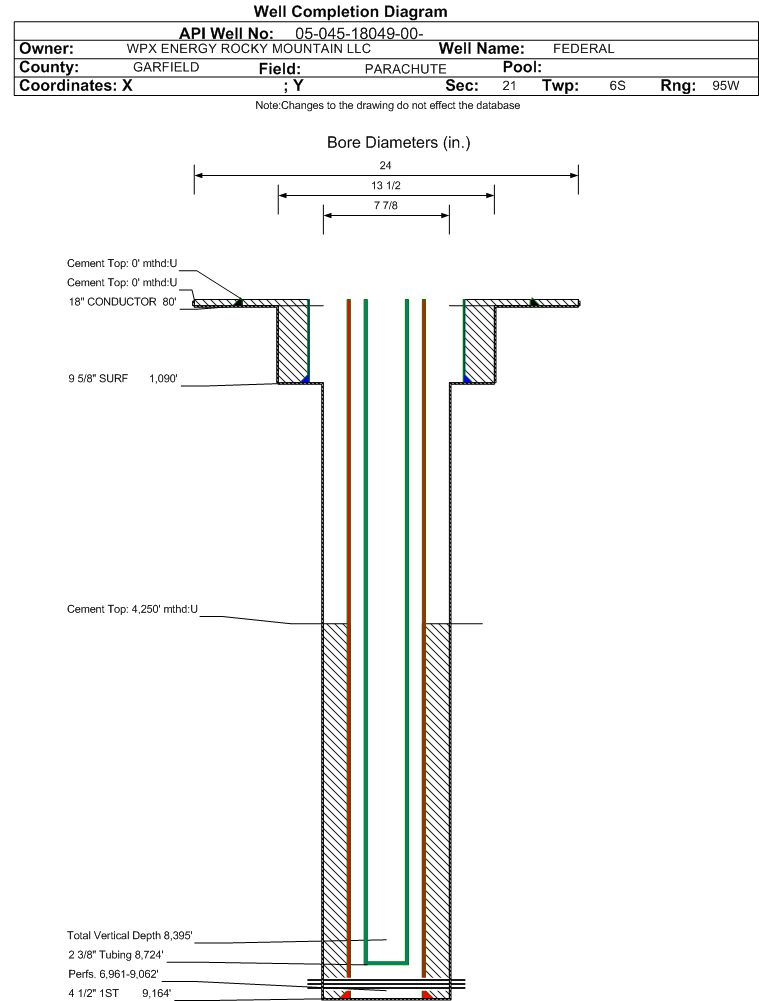

| Wellbore Completed | | Completion Date: | 12/13/2009 | | Spud Date: | 12/5/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 9180 ft. | Measured PB depth: | 9127 ft. | | True Vertical TD: | 8395 ft. | True Vertical PB depth: | 8342 ft. | | Top PZ Location: | Sec:21 Twp: 6S 95W | Footage: 1267 FSL 277 FEL | | Bottom Hole Location: | Sec:21 Twp: 6S 95W | Footage: 1236 FSL 277 FEL | | Log Types: | CBL; RESEVOIR MONITOR TOOL ELITE, MUD | | Log Types: | CBL, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 31, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1090 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 1090 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9164 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 938, Top: 4250 ft., Bottom: 9164 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 2929 ft. | | | | | WASATCH G | 2929 ft. | | N | N | | MESAVERDE | 5487 ft. | | | | | CAMEO | 8353 ft. | | | | | ROLLINS | 9175 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 7/31/2010 Interval Top: 6961 ft. Interval Bottom: 9062 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 2/18/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 2/17/2010 | | Treatment Summary: | 4000 GALS 7 1/2% HCL; 1033400# 30/50 SAND; 29785 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8724 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/31/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1066 | | CASING_PRESS | 2021 | | MCF_GAS | 1055 | | TUBING_PRESS | 1881 |
| | Perforation Data: | | Interval Top: | 6961 ft. | # Of Holes: | 131 | | Interval Bottom: | 9062 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 26 |
| Total Gas Produced (MCF) | 12192 |
| GOR | 468923 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.831 |
| Average MCFE per Day | 33.808 |
| Federal Financial Assurance | i | Y |
|
|
