COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-18047		Well Classification: GW	Status: PR - 2/16/2011
Well Name/No:	FEDERAL #PA 433-21 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	COC62161
Facility Status:	PR	Status Date	2/16/2011
FacilityID:	300848	LocationID:	335256
County:	GARFIELD #045	Location:	NESW 21 6S95W 6
Field:	PARACHUTE - #67350	Elevation:	5839 ft.
Basin:	PICEANCE BASIN
Planned Location:	2375FSL 2175 FWL	Lat/Long: 39.509011 / -108.005403	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.509011 / -108.005402	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 2/16/2011 Measured TD: 8706 ft. Vertical TD: 8524 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 2/16/2011
Wellbore Permit			DIRECTIONAL
Permit #:		Expiration Date:	12/29/2010
Proposed Top PZ Location:	Sec: Twp:	Footage: 1943 FSL 1728 FEL
Bottom Hole Location:	Sec:21 Twp: 6S 95W	Footage: 1943 FSL 1728 FEL
Proposed Depth/Form:	8606 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:	3/2/2010
Spud Date:	2/23/2010	Spud Date Is:	ACTUAL
Measured TD:	8706 ft.	Measured PB depth:	8648 ft.
True Vertical TD:	8524 ft.	True Vertical PB depth:	8466 ft.
Top PZ Location:	Sec:21 Twp: 6S 95W	Footage: 1938 FSL 1718 FEL
Bottom Hole Location:	Sec:21 Twp: 6S 95W	Footage: 1934 FSL 1724 FEL
Log Types:	CBL; RPM, MUD
Log Types:	CBL/RESERVOIR MONITOR TOOL ELITE-(NOT PRESENT), MUD

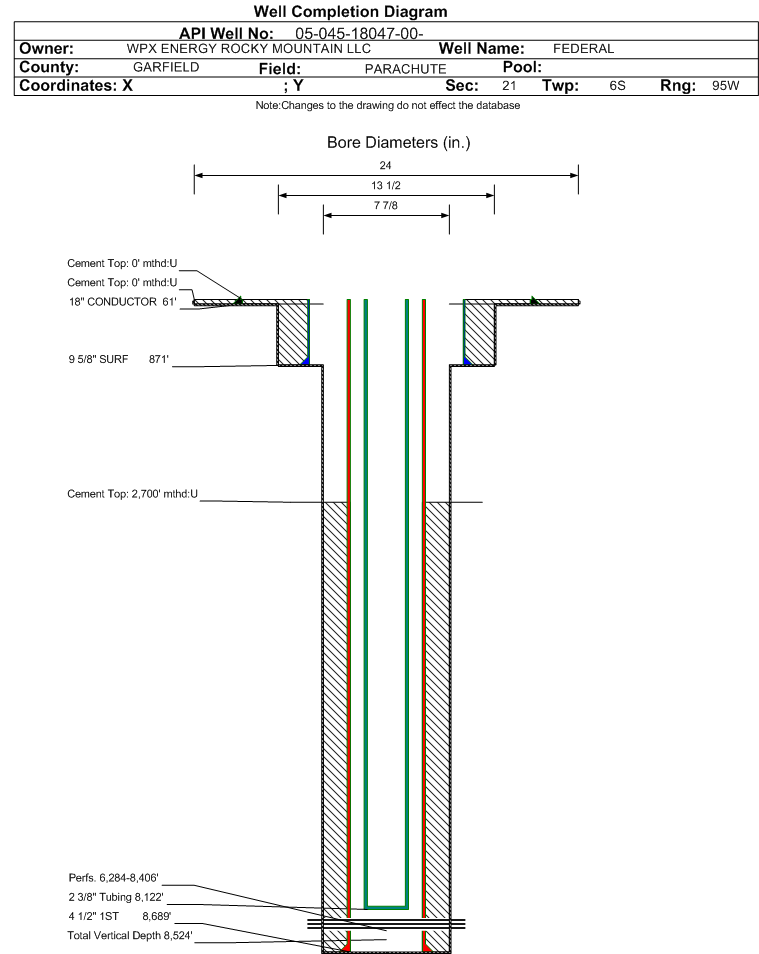

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 61 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 23, Top: 0 ft., Bottom: 61 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 871 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 255, Top: 0 ft., Bottom: 871 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8689 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 967, Top: 2700 ft., Bottom: 8689 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
GREELEY SAND	2700 ft.
WASATCH G	2700 ft.		N	N
MESAVERDE	4963 ft.
CAMEO	7775 ft.
ROLLINS	8499 ft.

Formation WFCM Formation Classification: GW Status: PR - 9/30/2010 Interval Top: 6284 ft. Interval Bottom: 8406 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	7/24/2010	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	7/23/2010
Treatment Summary:	4663 GALS 7 1/2% HCL; 1188932# 30/50 SAND; 33664 BBLS SLICKWATER (SUMMARY).

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	8122 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	9/30/2010	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1063
CASING_PRESS	2038
MCF_GAS	1015
TUBING_PRESS	1835

Perforation Data:
Interval Top:	6284 ft.	# Of Holes:	168
Interval Bottom:	8406 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	33
Total Gas Produced (MCF)	14332
GOR	434303
GOR Determination	MCFE
Average BOE per Day	6.865
Average MCFE per Day	39.797

Federal Financial Assurance

Tribal Well
