Wellbore #00 Wellbore Classification: GW Status: PR - 2/16/2011 Measured TD: 8741 ft. Vertical TD: 8524 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/16/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 12/22/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2239 FNL 1800 FEL | | Bottom Hole Location: | Sec:21 Twp: 6S 95W | Footage: 2239 FNL 1800 FEL | | Proposed Depth/Form: | 8737 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 874 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 305, Top: 0 ft., Bottom: 874 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8737 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 627, Top: , Bottom: 8737 ft. |
| | |

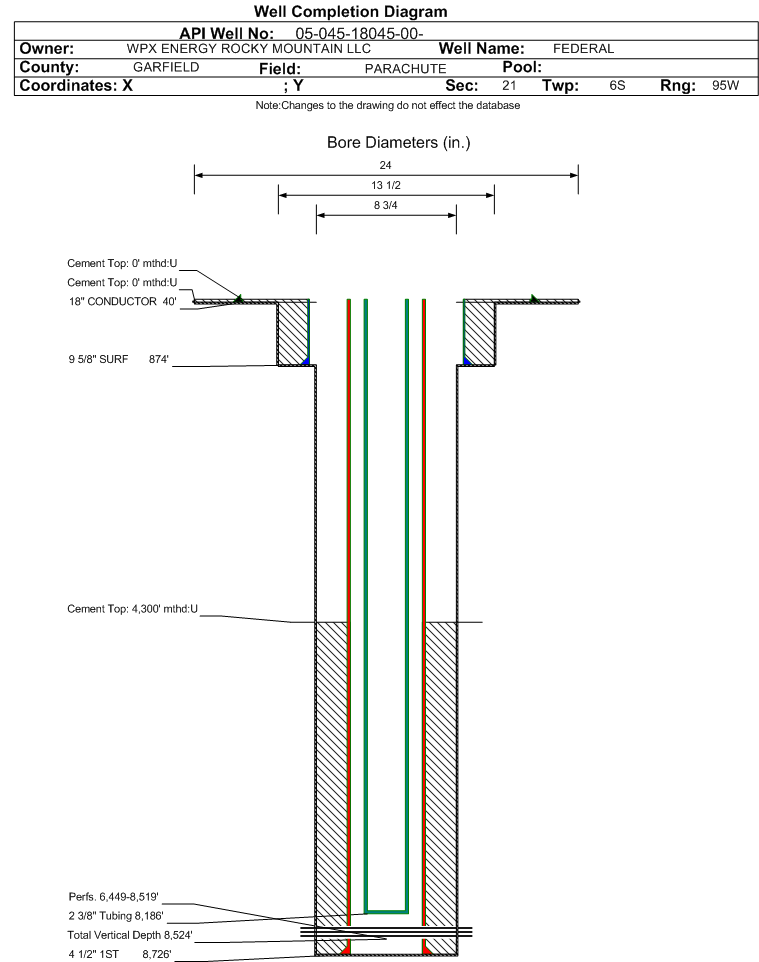

| Wellbore Completed | | Completion Date: | 5/28/2010 | | Spud Date: | 5/20/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 8741 ft. | Measured PB depth: | 8678 ft. | | True Vertical TD: | 8524 ft. | True Vertical PB depth: | 8461 ft. | | Top PZ Location: | Sec:21 Twp: 6S 95W | Footage: 2218 FNL 1826 FEL | | Bottom Hole Location: | Sec:21 Twp: 6S 95W | Footage: 2230 FNL 1820 FEL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 16, Top: 0 ft., Bottom: 40 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 874 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 270, Top: 0 ft., Bottom: 874 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8726 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1200, Top: 4300 ft., Bottom: 8726 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2745 ft. | | | | | MESAVERDE | 5096 ft. | | | | | CAMEO | 7848 ft. | | | | | ROLLINS | 8615 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 10/31/2010 Interval Top: 6449 ft. Interval Bottom: 8519 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 7/30/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 7/26/2010 | | Treatment Summary: | 4562 GASL 7 1/2% HCL; 1415396# 30/50 SAND; 38425 BBLS SLICKWATER(SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8186 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/31/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1043 | | CASING_PRESS | 2172 | | MCF_GAS | 1074 | | TUBING_PRESS | 1928 |
| | Perforation Data: | | Interval Top: | 6449 ft. | # Of Holes: | 178 | | Interval Bottom: | 8519 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 37 |
| Total Gas Produced (MCF) | 15944 |
| GOR | 430918 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.633 |
| Average MCFE per Day | 44.238 |
| Federal Financial Assurance | i | Y |
|
|
