Wellbore #00 Wellbore Classification: GW Status: PR - 2/16/2011 Measured TD: 8381 ft. Vertical TD: 8336 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/16/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 12/22/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1644 FSL 2247 FWL | | Bottom Hole Location: | Sec:21 Twp: 6S 95W | Footage: 1644 FSL 2247 FWL | | Proposed Depth/Form: | 8395 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: , Drill Unit: |
| | |

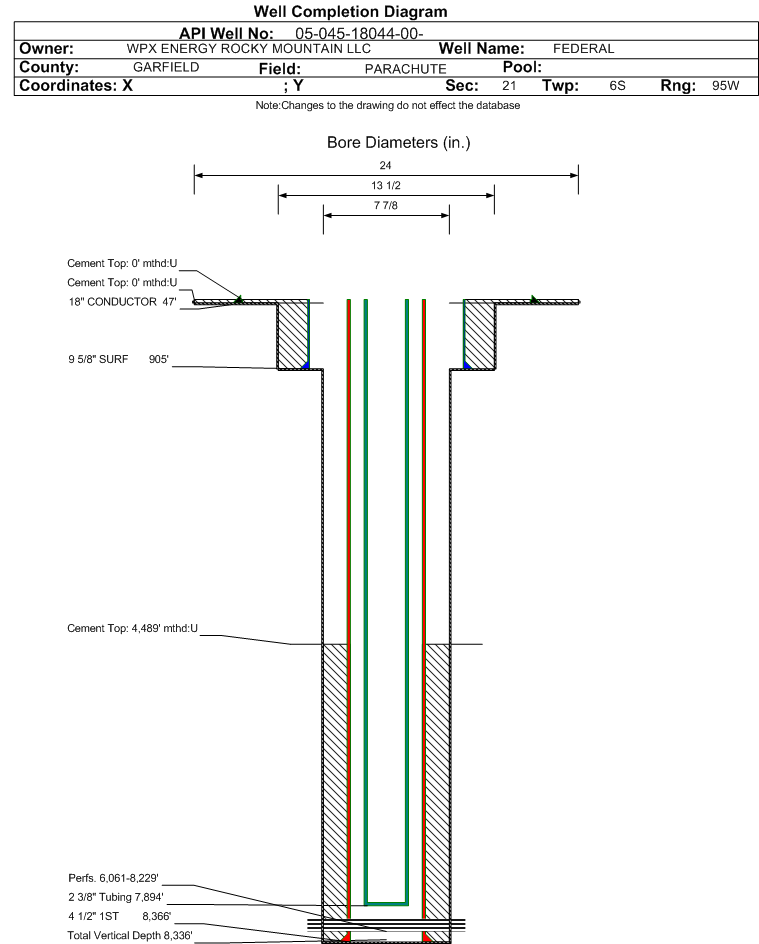

| Wellbore Completed | | Completion Date: | 2/11/2010 | | Spud Date: | 1/31/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 8381 ft. | Measured PB depth: | 8329 ft. | | True Vertical TD: | 8336 ft. | True Vertical PB depth: | 8284 ft. | | Top PZ Location: | Sec:21 Twp: 6S 95W | Footage: 1657 FSL 2239 FWL | | Bottom Hole Location: | Sec:21 Twp: 6S 95W | Footage: 1645 FSL 2227 FWL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE, MUD, RABL, HIGH DEF INDUCT | | Log Types: | CBL, MUD, BAKER OPEN HOLE COMBO, RPM | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 47 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 23, Top: 0 ft., Bottom: 47 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 905 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 280, Top: 0 ft., Bottom: 905 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8366 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1150, Top: 4489 ft., Bottom: 8366 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2608 ft. | | N | N | | MESAVERDE | 4835 ft. | | N | N | | CAMEO | 7529 ft. | | N | N | | ROLLINS | 8316 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 8/31/2010 Interval Top: 6061 ft. Interval Bottom: 8229 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/8/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 4/7/2010 | | Treatment Summary: | 5006 GALS 7 1/2% HCL; 1128600# 30/50 SAND; 38131 BBLS SLICKWATER (SUMMARY). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7894 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/31/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1074 | | CASING_PRESS | 1832 | | MCF_GAS | 933 | | TUBING_PRESS | 1662 |
| | Perforation Data: | | Interval Top: | 6061 ft. | # Of Holes: | 175 | | Interval Bottom: | 8229 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 48 |
| Total Gas Produced (MCF) | 20424 |
| GOR | 425500 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.775 |
| Average MCFE per Day | 56.711 |
| Federal Financial Assurance | i | Y |
|
|
