Wellbore #00 Wellbore Classification: GW Status: PR - 11/1/2009 Measured TD: 8965 ft. Vertical TD: 8703 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/1/2009 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20087419 | Expiration Date: | 1/8/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 340 FSL 620 FWL | | Bottom Hole Location: | Sec:36 Twp: 7S 93W | Footage: 340 FSL 620 FWL | | Proposed Depth/Form: | 8758 ft. | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC55972E | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

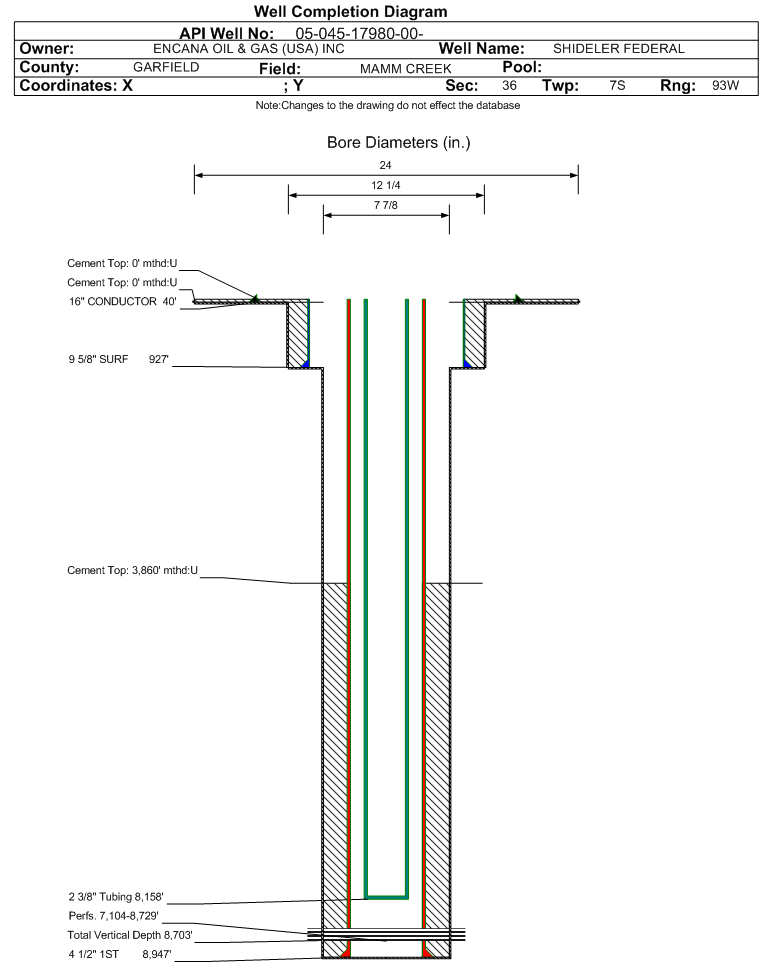

| Wellbore Completed | | Completion Date: | 3/12/2009 | | Spud Date: | 3/3/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 8965 ft. | Measured PB depth: | 8900 ft. | | True Vertical TD: | 8703 ft. | True Vertical PB depth: | 8638 ft. | | Top PZ Location: | Sec:36 Twp: 7S 93W | Footage: 328 FSL 615 FWL | | Bottom Hole Location: | Sec:36 Twp: 7S 93W | Footage: 328 FSL 615 FWL | | Log Types: | CBL, TEMP | | Log Types: | PEX-AIT, TEMP, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 927 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 325, Top: 0 ft., Bottom: 926 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8947 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 876, Top: 3860 ft., Bottom: 8947 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 5109 ft. | N | N | | OHIO CREEK | 5110 ft. | 5924 ft. | N | N | | WILLIAMS FORK | 5925 ft. | 8826 ft. | N | N | | ROLLINS | 8827 ft. | 8965 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 11/1/2009 Interval Top: 7104 ft. Interval Bottom: 8729 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 9/27/2009 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/18/2009 | | Treatment Summary: | STAGES 01-09 TREATED WITH A TOTAL OF: 58135.6 BBLS OF SLICKWATER, 345200 LBS OF 20/40 SAND, 436700 LBS 20/40 WHITE SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8158 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/1/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 16 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 16 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1806 | | CASING_PRESS | 1600 | | MCF_GAS | 1806 | | TUBING_PRESS | 920 |
| | Perforation Data: | | Interval Top: | 7104 ft. | # Of Holes: | 243 | | Interval Bottom: | 8729 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 36 |
| Total Gas Produced (MCF) | 16652 |
| GOR | 462555 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.961 |
| Average MCFE per Day | 46.189 |
| Federal Financial Assurance | i | Y |
|
|
