Wellbore #00 Wellbore Classification: GW Status: PR - 3/31/2010 Measured TD: 8366 ft. Vertical TD: 8162 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/31/2010 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 11/2/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 303 FNL 1776 FEL | | Bottom Hole Location: | Sec:30 Twp: 6S 94W | Footage: 303 FNL 1776 FEL | | Proposed Depth/Form: | 8305 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 320, Drill Unit: N2 |
| | |

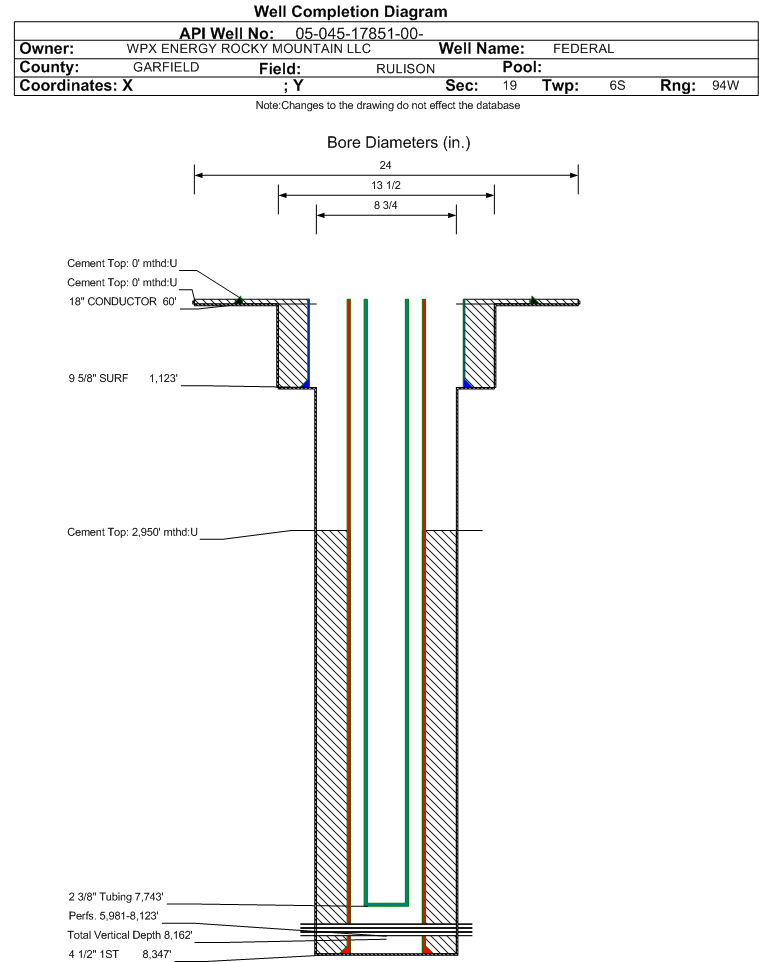

| Wellbore Completed | | Completion Date: | 10/15/2009 | | Spud Date: | 10/4/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 8366 ft. | Measured PB depth: | 8220 ft. | | True Vertical TD: | 8162 ft. | True Vertical PB depth: | 8016 ft. | | Top PZ Location: | Sec:30 Twp: 6S 94W | Footage: 174 FNL 1127 FEL | | Bottom Hole Location: | Sec:19 Twp: 6S 94W | Footage: 183 FNL 1123 FEL | | Log Types: | CBL, IND/DEN/NEU, MUD | | Log Types: | CBL, RESERVOIR MONITOR TOOL ELITE | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 22, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1123 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 1123 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8347 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1245, Top: 2950 ft., Bottom: 8347 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2185 ft. | | | | | MESAVERDE | 4667 ft. | | | | | CAMEO | 7242 ft. | | | | | ROLLINS | 8210 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 3/31/2010 Interval Top: 5981 ft. Interval Bottom: 8123 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/29/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 1/20/2010 | | Treatment Summary: | 3338 gal 7 1/2% hcl; 903500 # 20/40 sand; 29314 bbls slickwater (summary). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7743 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/31/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1087 | | CALC_MCF_GAS | 884 | | CASING_PRESS | 1340 | | MCF_GAS | 884 | | TUBING_PRESS | 2045 |
| | Perforation Data: | | Interval Top: | 5981 ft. | # Of Holes: | 159 | | Interval Bottom: | 8123 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 37 |
| Total Gas Produced (MCF) | 29674 |
| GOR | 802000 |
| GOR Determination | MCFE |
| Average BOE per Day | 14.123 |
| Average MCFE per Day | 81.908 |
| Federal Financial Assurance | i | Y |
|
|
