Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Old GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-17850		Well Classification: GW	Status: PR - 3/31/2010
Well Name/No:	FEDERAL #RWF 332-30 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	COC070819
Facility Status:	PR	Status Date	3/31/2010
FacilityID:	300174	LocationID:	335382
County:	GARFIELD #045	Location:	SWSE 19 6S94W 6
Field:	RULISON - #75400	Elevation:	5539 ft.
Basin:	PICEANCE BASIN
Planned Location:	547FSL 2149 FEL	Lat/Long: 39.504749 / -107.928716	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.504750 / -107.928716	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 3/31/2010 Measured TD: 8800 ft. Vertical TD: 8073 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 3/31/2010
Wellbore Permit			DIRECTIONAL
Permit #:	20086915	Expiration Date:	12/10/2009
Proposed Top PZ Location:	Sec: Twp:	Footage: 1968 FNL 1809 FEL
Bottom Hole Location:	Sec:30 Twp: 62 94W	Footage: 1968 FNL 1809 FEL
Proposed Depth/Form:	8618 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEE	Surface Owner:	FEDERAL
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 320, Drill Unit: N2

Wellbore Completed
Completion Date:	10/26/2010
Spud Date:	10/15/2009	Spud Date Is:	ACTUAL
Measured TD:	8800 ft.	Measured PB depth:	8700 ft.
True Vertical TD:	8073 ft.	True Vertical PB depth:	7973 ft.
Top PZ Location:	Sec:30 Twp: 6S 94W	Footage: 1980 FNL 1222 FEL
Bottom Hole Location:	Sec:30 Twp: 6S 94W	Footage: 2004 FNL 1216 FEL
Log Types:	CBL, RPM
Log Types:	CBL, MUD

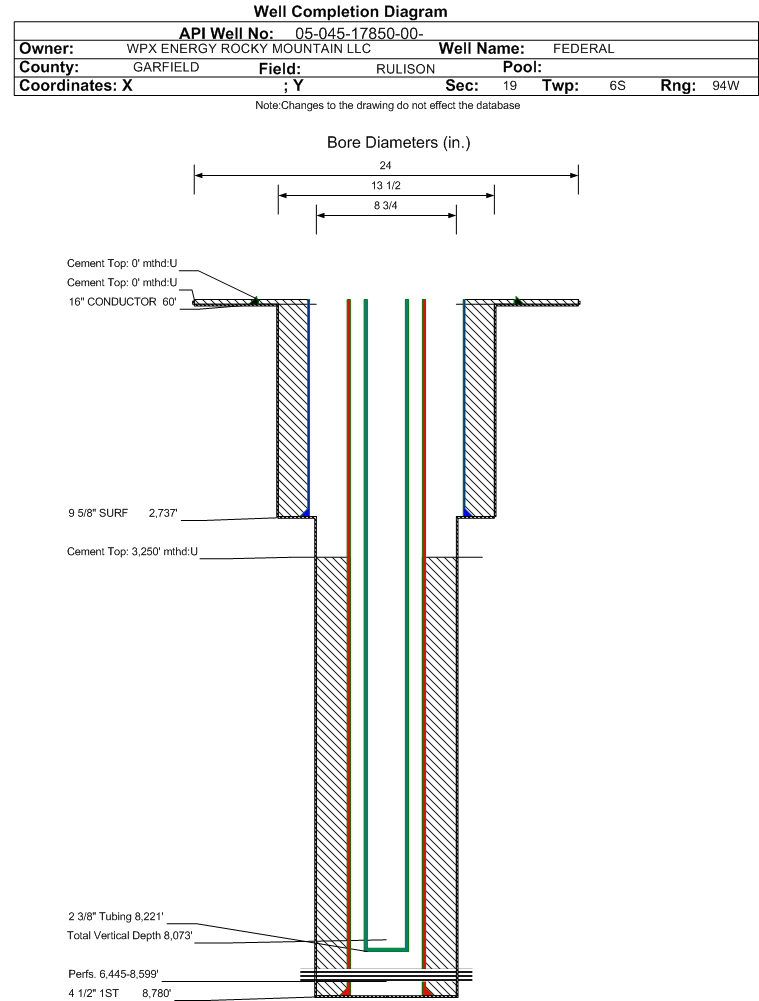

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 22, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2737 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 610, Top: 0 ft., Bottom: 2737 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8780 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 1238, Top: 3250 ft., Bottom: 8780 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	2175 ft.
MESAVERDE	5174 ft.
CAMEO	7681 ft.
ROLLINS	8383 ft.

Formation WFCM Formation Classification: GW Status: PR - 3/31/2010 Interval Top: 6445 ft. Interval Bottom: 8599 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	1/29/2010	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	1/20/2010
Treatment Summary:	3463 GALS 7.5% HCL; 743744# 20/40 SAND; 41357 BBLS SLICKWATER (SUMMARY)

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	8221 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	3/31/2010	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1076
CALC_MCF_GAS	686
CASING_PRESS	1442
MCF_GAS	686
TUBING_PRESS	1891

Perforation Data:
Interval Top:	6445 ft.	# Of Holes:	173
Interval Bottom:	8599 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

February 2025 - January 2026	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	39
Total Gas Produced (MCF)	29398
GOR	753794
GOR Determination	MCFE
Average BOE per Day	13.993
Average MCFE per Day	81.179

Federal Financial Assurance

Tribal Well
