Wellbore #00 Wellbore Classification: GW Status: PR - 3/31/2010 Measured TD: 8674 ft. Vertical TD: 8111 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/31/2010 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20086916 | Expiration Date: | 12/10/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1578 FNL 1791 FEL | | Bottom Hole Location: | Sec:30 Twp: 6S 94W | Footage: 1578 FNL 1791 FEL | | Proposed Depth/Form: | 8452 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 320, Drill Unit: N2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 2567 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 3567 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8452 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

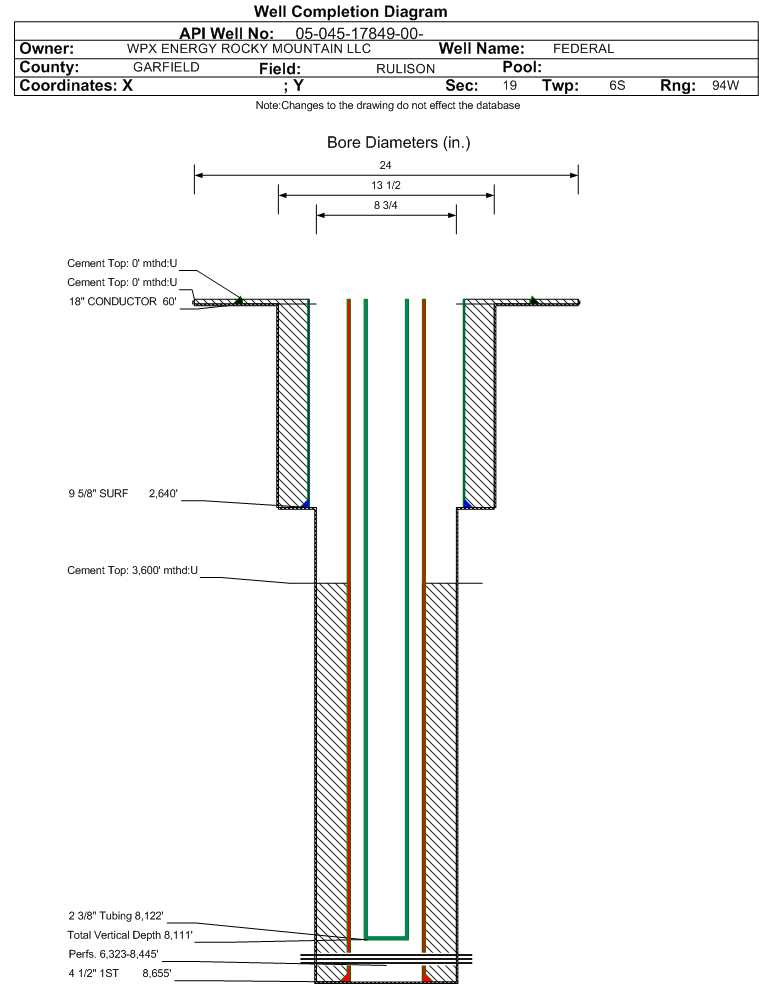

| Wellbore Completed | | Completion Date: | 11/6/2009 | | Spud Date: | 10/26/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 8674 ft. | Measured PB depth: | 8620 ft. | | True Vertical TD: | 8111 ft. | True Vertical PB depth: | 8057 ft. | | Top PZ Location: | Sec:30 Twp: 6S 94W | Footage: 1599 FNL 1284 FEL | | Bottom Hole Location: | Sec:30 Twp: 6S 94W | Footage: 1613 FNL 1307 FEL | | Log Types: | CBL, RESERVOIR MONITOR TOOL ELITE, MUD LOG | | Log Types: | CBL, RESERVOIR MONITOR TOOL ELITE. | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 22, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2640 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 590, Top: 0 ft., Bottom: 2640 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8655 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1265, Top: 3600 ft., Bottom: 8655 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2175 ft. | | | | | MESAVERDE | 5028 ft. | | | | | CAMEO | 7548 ft. | | | | | ROLLINS | 8525 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 3/31/2010 Interval Top: 6323 ft. Interval Bottom: 8445 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 2/5/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 1/20/2010 | | Treatment Summary: | 3778 GALS 7 1/2% HCL; 838204 # 20/40 SAND; 44919 BBLS SLICKWATER. (SUMMARY). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8122 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/31/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1076 | | CALC_MCF_GAS | 801 | | CASING_PRESS | 2280 | | MCF_GAS | 801 | | TUBING_PRESS | 1987 |
| | Perforation Data: | | Interval Top: | 6323 ft. | # Of Holes: | 184 | | Interval Bottom: | 8445 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 38 |
| Total Gas Produced (MCF) | 31770 |
| GOR | 836052 |
| GOR Determination | MCFE |
| Average BOE per Day | 15.118 |
| Average MCFE per Day | 87.636 |
| Federal Financial Assurance | i | Y |
|
|
