Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-17848		Well Classification: GW	Status: PR - 3/31/2010
Well Name/No:	FEDERAL #RWF 531-30 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	COC27871
Facility Status:	PR	Status Date	3/31/2010
FacilityID:	300177	LocationID:	335382
County:	GARFIELD #045	Location:	SWSE 19 6S94W 6
Field:	RULISON - #75400	Elevation:	5539 ft.
Basin:	PICEANCE BASIN
Planned Location:	555FSL 2162 FEL	Lat/Long: 39.504770 / -107.928762	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.504770 / -107.928763	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 3/31/2010 Measured TD: 8458 ft. Vertical TD: 8069 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 3/31/2010
Wellbore Permit			DIRECTIONAL
Permit #:		Expiration Date:	11/2/2010
Proposed Top PZ Location:	Sec: Twp:	Footage: 1225 FNL 1846 FEL
Bottom Hole Location:	Sec:30 Twp: 6S 94W	Footage: 1225 FNL 1846 FEL
Proposed Depth/Form:	8478 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 320, Drill Unit: N2

Wellbore Completed
Completion Date:	11/16/2009
Spud Date:	11/7/2009	Spud Date Is:	ACTUAL
Measured TD:	8458 ft.	Measured PB depth:	8350 ft.
True Vertical TD:	8069 ft.	True Vertical PB depth:	7961 ft.
Top PZ Location:	Sec:30 Twp: 6S 94W	Footage: 1216 FNL 1399 FEL
Bottom Hole Location:	Sec:30 Twp: 6S 94W	Footage: 1234 FNL 1392 FEL
Log Types:	CBL, RESERVOIR MONITOR TOOL ELITE
Log Types:	CBL, RPM

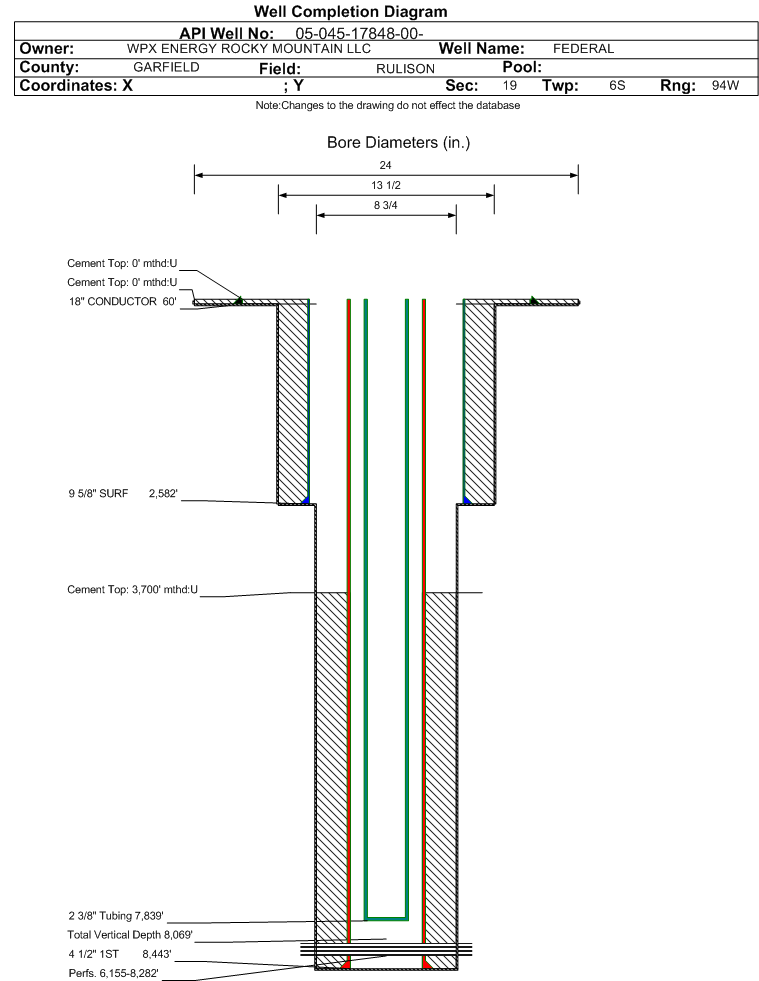

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 22, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2582 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 570, Top: 0 ft., Bottom: 2582 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8443 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 1231, Top: 3700 ft., Bottom: 8443 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	2175 ft.
MESAVERDE	4854 ft.
CAMEO	7372 ft.
ROLLINS	8354 ft.

Formation WFCM Formation Classification: GW Status: PR - 3/31/2010 Interval Top: 6155 ft. Interval Bottom: 8282 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	1/29/2010	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	1/20/2010
Treatment Summary:	3782 gals 7 1/2% hcl; 794786 # 20/40 sand; 44474 bbls slickwater (summary).

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7839 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	3/31/2010	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1071
CASING_PRESS	1361
MCF_GAS	942
TUBING_PRESS	1272

Perforation Data:
Interval Top:	6155 ft.	# Of Holes:	181
Interval Bottom:	8282 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	36
Total Gas Produced (MCF)	29829
GOR	828583
GOR Determination	MCFE
Average BOE per Day	14.196
Average MCFE per Day	82.317

Federal Financial Assurance

Tribal Well
