COGIS - WELL SCOUT CARD

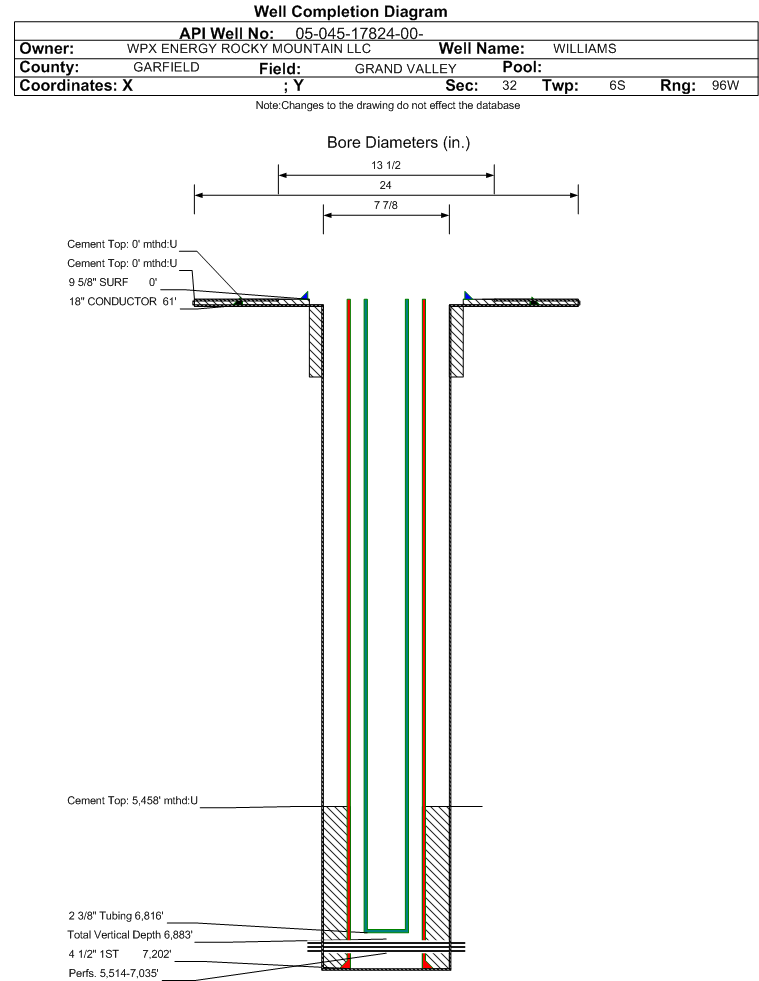

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-17824		Well Classification: GW Status: PR - 4/16/2011
Well Name/No:WILLIAMS #GM 444-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC24099
Facility Status:PRStatus Date4/16/2011
FacilityID:300012LocationID:335492
County:GARFIELD #045Location:SENE 32 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5944 ft.
Basin:PICEANCE BASIN
Planned Location:2595FNL  1068 FELLat/Long: 39.480653 / -108.126453Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.480652 / -108.126454Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 11/30/2010
End Date: 11/30/2010
Reported: 2/22/2012
Prior to rule 205A.b.(2)(A)
Days to report: 449
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/16/2011             Measured TD: 7220 ft.    Vertical TD: 6883 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/16/2011
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:12/22/2010
Proposed Top PZ Location:Sec:32 Twp: 6S 96W Footage: 1302 FSL  98 FEL
Bottom Hole Location:Sec:32 Twp: 6S 96W Footage: 1286 FSL  115 FEL
Proposed Depth/Form:7178 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 160, Drill Unit: SE/4
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: PLANNED
Cement:Sacks: 25, Top: 0 ft., Bottom: 45 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1300 ft., Weight: 32.3 , Citings Type: PLANNED
Cement:Sacks: 454, Top: 0 ft., Bottom: 1300 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7178 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 545, Top: , Bottom: 7178 ft.
Wellbore Completed
Completion Date:10/29/2010
Spud Date:10/20/2010Spud Date Is:ACTUAL
Measured TD:7220 ft.Measured PB depth:7172 ft.
True Vertical TD:6883 ft.True Vertical PB depth:6835 ft.
Top PZ Location:Sec:32 Twp: 6S 96WFootage: 1302 FSL  98 FEL
Bottom Hole Location:Sec:32 Twp: 6S 96WFootage: 1286 FSL  115 FEL
Log Types:CBL AND RESERVOIR PERFORMANCE MONITOR (RPM) Mud
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 61 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 23, Top: 0 ft., Bottom: 61 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 0 ft., Bottom: 836 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7202 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 975, Top: 5458 ft., Bottom: 7202 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: 5230 ft., Depth: 5170 ft., Bottom: 5360 ft., Sacks: 200, Method: SQUEEZE
FormationInterval TopLog BottomCoredDSTs
NOT COMPLETED2535 ft.
NOT COMPLETED2535 ft.
NOT COMPLETED2535 ft.
NOT COMPLETED2535 ft.
MESAVERDE4079 ft.
CAMEO6603 ft.
ROLLINS7081 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/28/2011                 Interval Top: 5514 ft.    Interval Bottom: 7035 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/5/2010Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/30/2010
Treatment Summary:2527 GALS OF 7.5% HCL; 550000# OF 40/70 SAND; 18433 BBLS SLICKWATER (SUMMARY).
Tubing Size:2.375 in.Tubing Setting Depth:6816 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/28/2011Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1071
CASING_PRESS 1223
MCF_GAS 996
TUBING_PRESS 826
Perforation Data:
Interval Top:5514 ft.# Of Holes:139
Interval Bottom:7035 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)33
Total Gas Produced (MCF)16702
GOR506121
GOR DeterminationMCFE
Average BOE per Day7.983
Average MCFE per Day46.291

 Federal Financial Assurance  i Y

 Tribal Well  i No
