Wellbore #00 Wellbore Classification: GW Status: PR - 10/1/2022 Measured TD: 9300 ft. Vertical TD: 9064 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/1/2022 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20086801 | Expiration Date: | 12/3/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 829 FSL 670 FWL | | Bottom Hole Location: | Sec:28 Twp: 5S 97W | Footage: 829 FSL 670 FWL | | Proposed Depth/Form: | 9290 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 510-44 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 570-17 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 60 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 2623 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 2623 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 9290 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

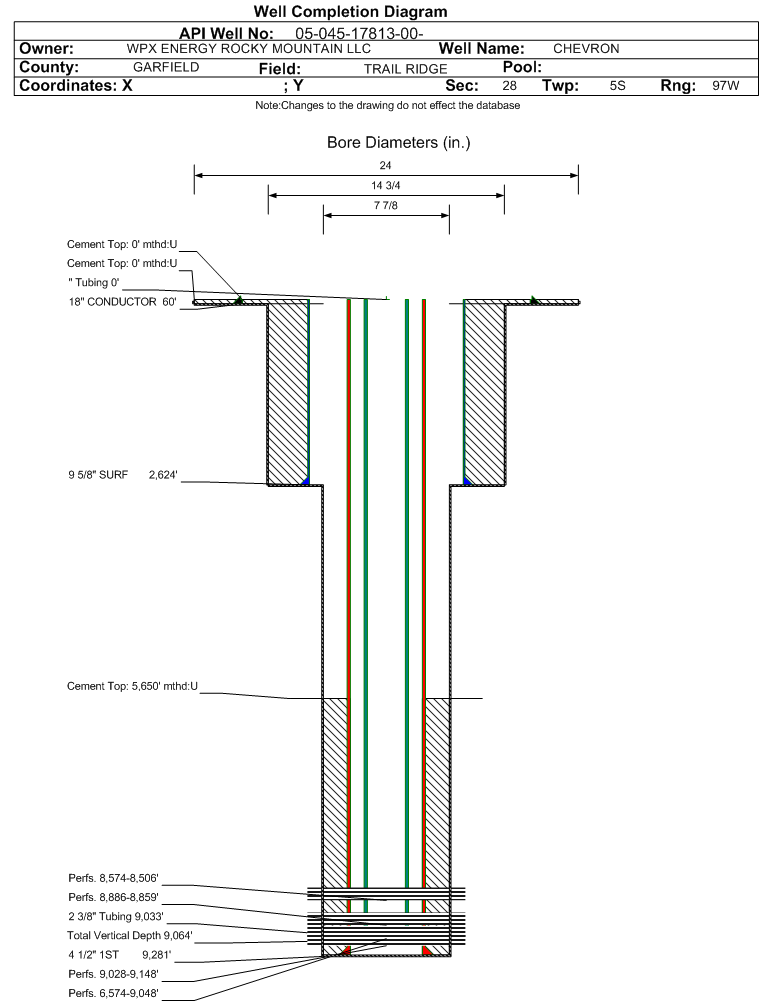

| Wellbore Completed | | Completion Date: | 3/2/2008 | | Spud Date: | 1/23/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 9300 ft. | Measured PB depth: | 9251 ft. | | True Vertical TD: | 9064 ft. | True Vertical PB depth: | 9015 ft. | | Top PZ Location: | Sec:28 Twp: 5S 97W | Footage: 965 FSL 494 FWL | | Bottom Hole Location: | Sec:28 Twp: 5S 97W | Footage: 965 FSL 494 FWL | | Log Types: | CBL, HRl, SPECTRAL DENSITY, DUAL SPACED NEUTRON | | Log Types: | CBL, HRI, SPECTRAL DEPTH, DUAL SPACED NEUTRON | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2624 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 2450, Top: 0 ft., Bottom: 2624 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9281 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 581, Top: 5650 ft., Bottom: 9281 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 5855 ft. | | | | | CAMEO | 8180 ft. | | | | | ROLLINS | 8550 ft. | | | | | COZZETTE | 8727 ft. | | | | | CORCORAN | 8978 ft. | | | |
Formation CRCRN Formation Classification: GW Status: PR - 10/1/2022 Interval Top: 9028 ft. Interval Bottom: 9148 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 8/11/2009 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 8/11/2009 | | Treatment Summary: | 752 GAL 10% HCL ACID 72,700 # 100 MESH AND 30/50 SAND 2295 BBLS SLICKWATER |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | Perforation Data: | | Interval Top: | 9028 ft. | # Of Holes: | 17 | | Interval Bottom: | 9148 ft. | Hole Size: | 0.36 in. |
|
Formation COZZ Formation Classification: GW Status: PR - 10/1/2022 Interval Top: 8859 ft. Interval Bottom: 8886 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 8/13/2009 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 8/13/2009 | | Treatment Summary: | 1504 GAL 10% HCL ACID 160,600 # 100 MESH AND 30/50 SAND 5185 BBLS SLICKWATER |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation COZZ. |
| | Perforation Data: | | Interval Top: | 8859 ft. | # Of Holes: | 30 | | Interval Bottom: | 8886 ft. | Hole Size: | 0.3 in. |
|
Formation WFCM Formation Classification: GW Status: PR - 10/1/2022 Interval Top: 8506 ft. Interval Bottom: 8574 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 8/14/2009 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 8/14/2009 | | Treatment Summary: | 8757 GAL 10% HCL ACID 1,230,200 # 100 MESH AND 35,766 BBLS SLICKWATER |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WFCM. |
| | Perforation Data: | | Interval Top: | 8506 ft. | # Of Holes: | 188 | | Interval Bottom: | 8574 ft. | Hole Size: | 0.36 in. |
|
Formation WFILS Formation Classification: GW Status: CM - 9/3/2009 Interval Top: 6574 ft. Interval Bottom: 9048 ft.| Completed Information for Formation WILLIAMS FORK-ILES | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK-ILES | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 9/3/2009 | | Treatment Summary: | 11,012 GAL 10% HCL ACID 1,463,400 # 100 MESH AND 30/50 SAND 43,247 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9033 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/3/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1 | | CASING_PRESS | 2000 | | MCF_GAS | 956 | | TUBING_PRESS | 1350 |
| | Perforation Data: | | Interval Top: | 6574 ft. | # Of Holes: | 235 | | Interval Bottom: | 9048 ft. | Hole Size: | 0.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 134 |
| Total Gas Produced (MCF) | 52242 |
| GOR | 389865 |
| GOR Determination | MCFE |
| Average BOE per Day | 25.057 |
| Average MCFE per Day | 145.337 |
| Federal Financial Assurance | i | |
|
|
