Wellbore #00 Wellbore Classification: GW Status: PR - 8/8/2011 Measured TD: 9300 ft. Vertical TD: 9096 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/8/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20086799 | Expiration Date: | 12/3/2009 | | Proposed Top PZ Location: | Sec:28 Twp: 5S 97W | Footage: 1378 FSL 635 FWL | | Bottom Hole Location: | Sec:28 Twp: 5S 97W | Footage: 1374 FSL 615 FWL | | Proposed Depth/Form: | 9327 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 510-44 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 570-17 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 60 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 2634 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 2634 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 9327 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

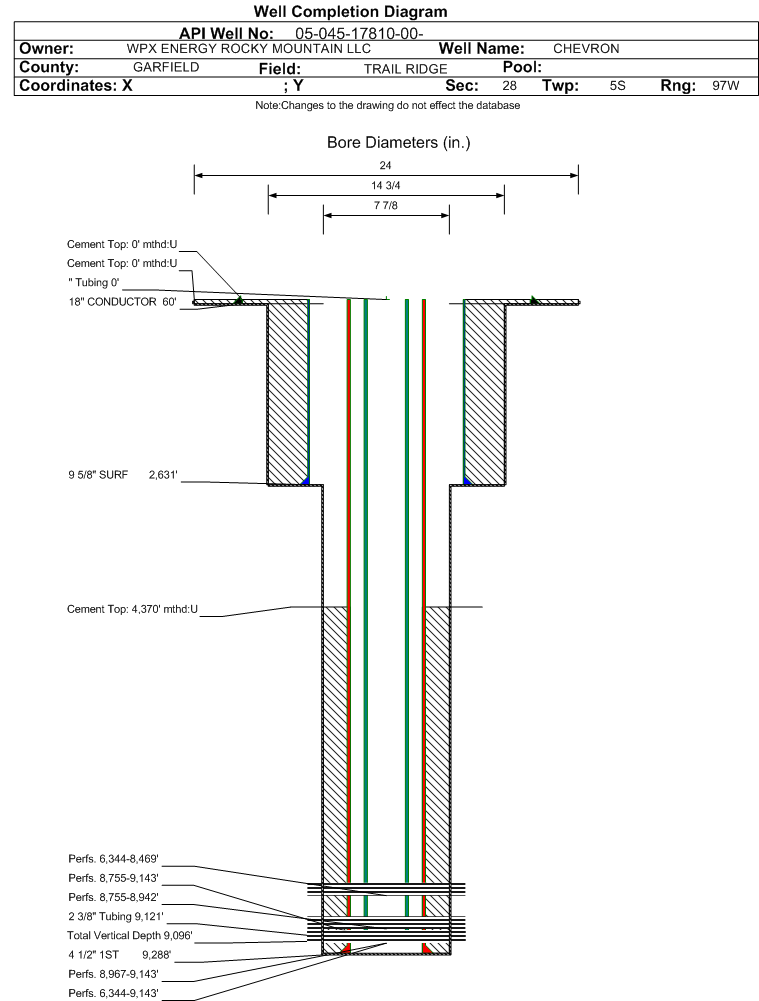

| Wellbore Completed | | Completion Date: | 2/15/2009 | | Spud Date: | 1/20/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 9300 ft. | Measured PB depth: | 9240 ft. | | True Vertical TD: | 9096 ft. | True Vertical PB depth: | 9036 ft. | | Top PZ Location: | Sec:28 Twp: 5S 97W | Footage: 1378 FSL 635 FWL | | Bottom Hole Location: | Sec:28 Twp: 5S 97W | Footage: 1374 FSL 615 FWL | | Log Types: | CBL, RMTE, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2631 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 2050, Top: 0 ft., Bottom: 2631 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9288 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 683, Top: 4370 ft., Bottom: 9288 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 5866 ft. | | | | | CAMEO | 8165 ft. | | | | | ROLLINS | 8525 ft. | | | | | COZZETTE | 8702 ft. | | | | | CORCORAN | 8953 ft. | | | |
Formation CRCRN Formation Classification: GW Status: PR - 9/25/2009 Interval Top: 8967 ft. Interval Bottom: 9143 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 7/31/2009 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 7/31/2009 | | Treatment Summary: | 1,504 GAL 10% HCl ACID, 129,000 # 100 MESH AND 30/50 SAND, 4,350 BBLS SLICKWATER. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | Perforation Data: | | Interval Top: | 8967 ft. | # Of Holes: | 36 | | Interval Bottom: | 9143 ft. | Hole Size: | 0.36 in. |
|
Formation COZZ Formation Classification: GW Status: PR - 9/25/2009 Interval Top: 8755 ft. Interval Bottom: 8942 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 8/12/2009 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 8/12/2009 | | Treatment Summary: | 1,504 GAL 10% HCl ACID, 178,400 # 100 MESH AND 30/50 SAND, 9,839 BBLS SLICKWATER. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation COZZ. |
| | Perforation Data: | | Interval Top: | 8755 ft. | # Of Holes: | 36 | | Interval Bottom: | 8942 ft. | Hole Size: | 0.36 in. |
|
Formation ILES Formation Classification: GW Status: CM - 8/31/2009 Interval Top: 8755 ft. Interval Bottom: 9143 ft.| Completed Information for Formation ILES | | 1st Production Date: | 7/31/2009 | Choke Size: | | | Formation Name: | ILES | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 7/31/2009 | | Treatment Summary: | 3,007 GAL 10% HCL ACID, 308,300 # 100 MESH AND 30/50 SAND, 9,829 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9121 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/31/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BTU_GAS | 1 | | CASING_PRESS | 1100 | | MCF_GAS | 705 | | TUBING_PRESS | 850 |
| | Perforation Data: | | Interval Top: | 8755 ft. | # Of Holes: | 72 | | Interval Bottom: | 9143 ft. | Hole Size: | 0.36 in. |
|
Formation WFCM Formation Classification: GW Status: PR - 4/29/2011 Interval Top: 6344 ft. Interval Bottom: 8469 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 5/9/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 5/9/2010 | | Treatment Summary: | 8512 GAL 10% HCl ACID, 1500390 # 20/40 SAND, 45515 BBLS SLICKWATER. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WFCM. |
| | Perforation Data: | | Interval Top: | 6344 ft. | # Of Holes: | 182 | | Interval Bottom: | 8469 ft. | Hole Size: | 0.36 in. |
|
Formation WFILS Formation Classification: GW Status: CM - 4/29/2011 Interval Top: 6344 ft. Interval Bottom: 9143 ft.| Completed Information for Formation WILLIAMS FORK-ILES | | 1st Production Date: | 8/7/2009 | Choke Size: | | | Formation Name: | WILLIAMS FORK-ILES | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 7/31/2009 | | Treatment Summary: | 9312 GAL 10% HCl ACID, 1808716# 20/40 SAND, 55472 BBLS SLICKWATER. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9121 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/21/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1 | | CASING_PRESS | 1326 | | MCF_GAS | 1263 | | TUBING_PRESS | 1241 |
| | Perforation Data: | | Interval Top: | 6344 ft. | # Of Holes: | 247 | | Interval Bottom: | 9143 ft. | Hole Size: | 0.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 131 |
| Total Gas Produced (MCF) | 49554 |
| GOR | 378274 |
| GOR Determination | MCFE |
| Average BOE per Day | 23.819 |
| Average MCFE per Day | 138.132 |
| Federal Financial Assurance | i | |
|
|
