COGIS - WELL SCOUT CARD

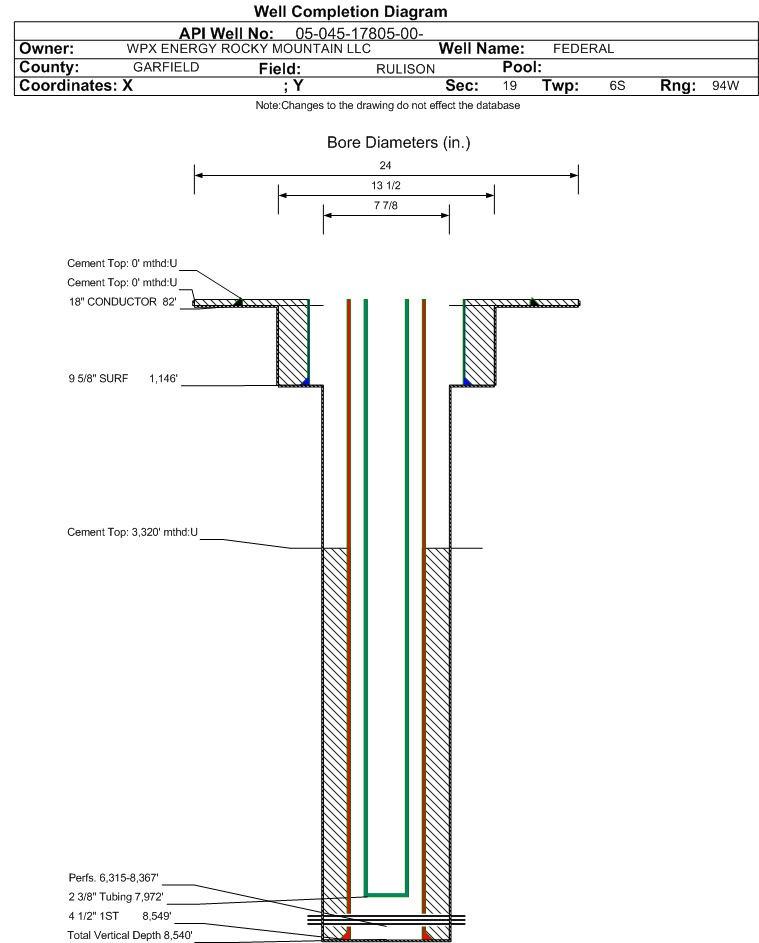

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-17805		Well Classification: GW Status: PR - 10/1/2022
Well Name/No:FEDERAL #RWF 512-19
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC62160
Facility Status:PRStatus Date10/1/2022
FacilityID:299959LocationID:335432
County:GARFIELD #045Location:NWSW 19 6S94W 6
Field:RULISON - #75400Elevation:5822 ft.
Basin:PICEANCE BASIN
Planned Location:2597FSL  144 FWLLat/Long: 39.510287 / -107.937721Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.510286 / -107.937720Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/1/2022             Measured TD: 8569 ft.    Vertical TD: 8540 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/1/2022
Wellbore PermitDIRECTIONAL
Permit #:20086704 Expiration Date:12/2/2009
Proposed Top PZ Location:Sec: Twp: Footage: 2181 FNL  348 FWL
Bottom Hole Location:Sec:19 Twp: 6S 94W Footage: 2181 FNL  348 FWL
Proposed Depth/Form:8482 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 320, Drill Unit: N2
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: PLANNED
Cement:Sacks: 25, Top: 0 ft., Bottom: 45 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1106 ft., Weight: 32.3 , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 1106 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8482 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:9/16/2009
Spud Date:9/5/2009Spud Date Is:ACTUAL
Measured TD:8569 ft.Measured PB depth:8520 ft.
True Vertical TD:8540 ft.True Vertical PB depth:8491 ft.
Top PZ Location:Sec:19 Twp: 6S 94WFootage: 2154 FNL  229 FWL
Bottom Hole Location:Sec:19 Twp: 6S 94WFootage: 2186 FNL  203 FWL
Log Types:GAMMA RAY, ARRAY INDUCTION/SP, CBL , MUD LOG
Log Types:SCHLUMBERGER: PLATFORM EXPRESS, GAMMA RAY, ARRAY INDUCTION/SP
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 82 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 31, Top: 0 ft., Bottom: 82 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1146 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 1146 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8549 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1261, Top: 3320 ft., Bottom: 8549 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND2537 ft.
WASATCH G2537 ft.NN
MESAVERDE4969 ft.
CAMEO7526 ft.
ROLLINS8469 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/1/2022                 Interval Top: 6315 ft.    Interval Bottom: 8367 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:5/23/2010Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:5/21/2010
Treatment Summary:3564 GALS 7 1/2% HCL; 883613 # 20/40 SAND; 21931 BBLS SLICKWATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:7972 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/31/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1111
CASING_PRESS 1702
MCF_GAS 1243
TUBING_PRESS 1586
Perforation Data:
Interval Top:6315 ft.# Of Holes:129
Interval Bottom:8367 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)71
Total Gas Produced (MCF)33340
GOR469577
GOR DeterminationMCFE
Average BOE per Day15.942
Average MCFE per Day92.488

 Federal Financial Assurance  i Y

 Tribal Well  i No
