Wellbore #00 Wellbore Classification: GW Status: PR - 4/16/2011 Measured TD: 7850 ft. Vertical TD: 7575 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/16/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 1/25/2012 | | Proposed Top PZ Location: | Sec:27 Twp: 6S 94W | Footage: 541 FSL 705 FEL | | Bottom Hole Location: | Sec:27 Twp: 6S 94W | Footage: 541 FSL 705 FEL | | Proposed Depth/Form: | 7868 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-66 , Unit Acreage: 320, Drill Unit: E/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1112 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 390, Top: 0 ft., Bottom: 1112 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7868 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 700, Top: 200 ft., Bottom: 7868 ft. |
| | |

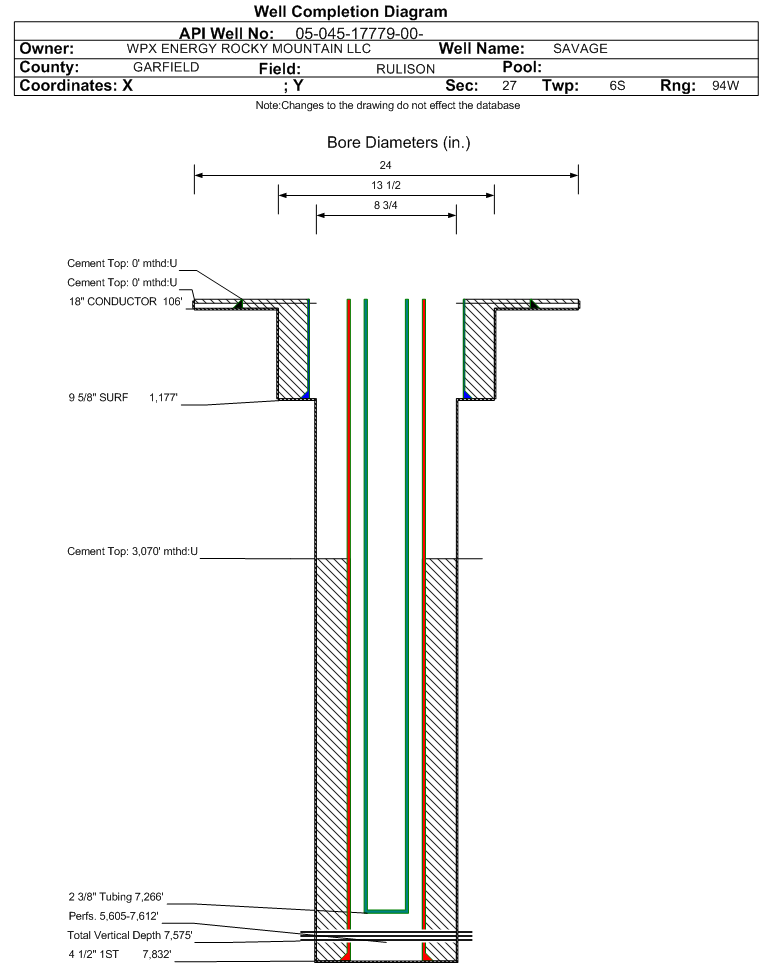

| Wellbore Completed | | Completion Date: | 8/12/2010 | | Spud Date: | 8/4/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 7850 ft. | Measured PB depth: | 7799 ft. | | True Vertical TD: | 7575 ft. | True Vertical PB depth: | 7524 ft. | | Top PZ Location: | Sec:27 Twp: 6S 94W | Footage: 546 FSL 687 FEL | | Bottom Hole Location: | Sec:27 Twp: 6S 94W | Footage: 525 FSL 696 FEL | | Log Types: | RPM AND CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 106 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 40, Top: 0 ft., Bottom: 45 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1177 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 330, Top: 0 ft., Bottom: 1177 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7832 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1445, Top: 3070 ft., Bottom: 7832 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 4074 ft. | | | | | CAMEO | 6801 ft. | | | | | ROLLINS | 7738 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 11/30/2010 Interval Top: 5605 ft. Interval Bottom: 7612 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/18/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 9/16/2010 | | Treatment Summary: | 4489 GALS 7 1/2% HCL; 1006500 # 20/40 SAND; 15542 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7266 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/30/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 989 | | CASING_PRESS | 2346 | | MCF_GAS | 1004 | | TUBING_PRESS | 2118 |
| | Perforation Data: | | Interval Top: | 5605 ft. | # Of Holes: | 136 | | Interval Bottom: | 7612 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 45 |
| Total Gas Produced (MCF) | 21592 |
| GOR | 479822 |
| GOR Determination | MCFE |
| Average BOE per Day | 10.322 |
| Average MCFE per Day | 59.858 |
| Federal Financial Assurance | i | |
|
|
