Wellbore #00 Wellbore Classification: GW Status: PR - 4/1/2015 Measured TD: 6940 ft. Vertical TD: 6834 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/1/2015 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20086433 | Expiration Date: | 11/19/2009 | | Proposed Top PZ Location: | Sec:4 Twp: 7S 95W | Footage: 1138 FSL 590 FWL | | Bottom Hole Location: | Sec:4 Twp: 7S 95W | Footage: 1135 FSL 572 FWL | | Proposed Depth/Form: | 6923 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-35 , Unit Acreage: 640, Drill Unit: SEC |
| | |

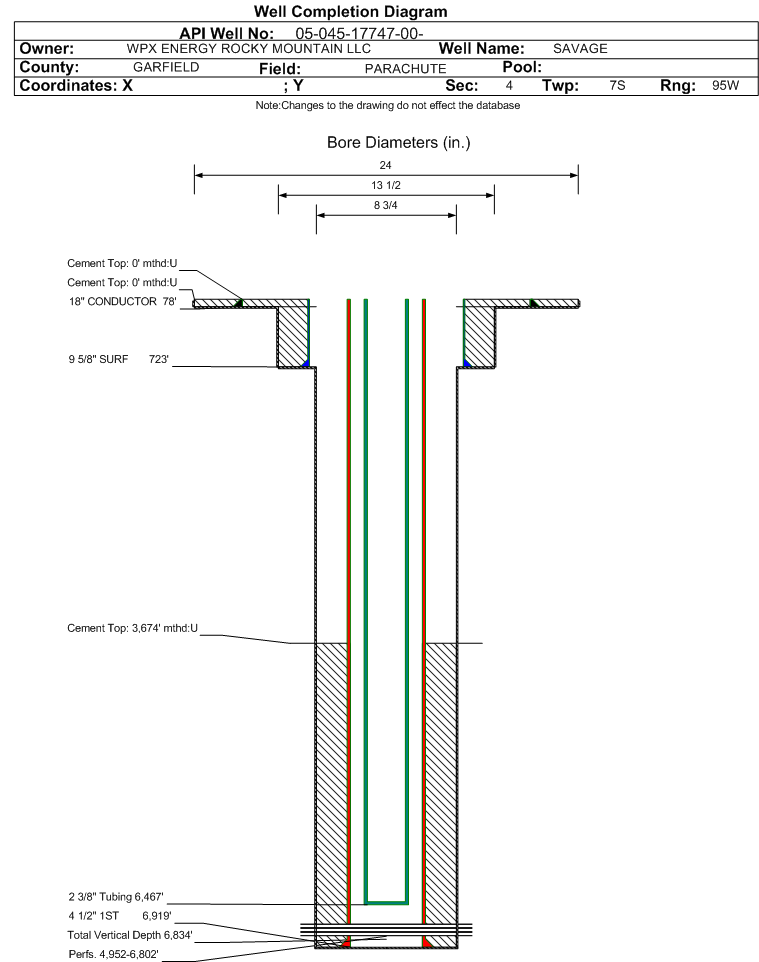

| Wellbore Completed | | Completion Date: | 1/13/2009 | | Spud Date: | 1/1/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 6940 ft. | Measured PB depth: | 6887 ft. | | True Vertical TD: | 6834 ft. | True Vertical PB depth: | 6781 ft. | | Top PZ Location: | Sec:4 Twp: 7S 95W | Footage: 1138 FSL 590 FWL | | Bottom Hole Location: | Sec:4 Twp: 7S 95W | Footage: 1135 FSL 572 FWL | | Log Types: | CBL, HIGH RES.IND.,SPECTRAL DENSITY, DUAL SPACED NEUTRON | | Log Types: | HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 78 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 29, Top: 0 ft., Bottom: 78 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 723 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 211, Top: 0 ft., Bottom: 723 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6919 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1035, Top: 3674 ft., Bottom: 6919 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1590 ft. | | | | | FORT UNION | 1877 ft. | | | | | MESAVERDE | 3782 ft. | | | | | CAMEO | 5965 ft. | | | | | ROLLINS | 6842 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 4/1/2015 Interval Top: 4952 ft. Interval Bottom: 6802 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/20/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 1/18/2010 | | Treatment Summary: | 4016 GALS 7.5% HCL; 1076315# 20/40 SAND; 30886 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6467 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/28/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1057 | | CALC_MCF_GAS | 1121 | | CASING_PRESS | 1682 | | MCF_GAS | 1121 | | TUBING_PRESS | 1555 |
| | Perforation Data: | | Interval Top: | 4952 ft. | # Of Holes: | 156 | | Interval Bottom: | 6802 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2 |
| Total Gas Produced (MCF) | 3801 |
| GOR | 1900500 |
| GOR Determination | MCFE |
| Average BOE per Day | 1.800 |
| Average MCFE per Day | 10.447 |
| Federal Financial Assurance | i | |
|
|
