Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-17636		Well Classification: GW	Status: PR - 6/30/2010
Well Name/No:	FEDERAL #RWF 311-19 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	COC62160
Facility Status:	PR	Status Date	6/30/2010
FacilityID:	299272	LocationID:	335448
County:	GARFIELD #045	Location:	SESW 18 6S94W 6
Field:	RULISON - #75400	Elevation:	5972 ft.
Basin:	PICEANCE BASIN
Planned Location:	210FSL 1588 FWL	Lat/Long: 39.518209 / -107.932601	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.518204 / -107.932600	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 6/30/2010 Measured TD: 8957 ft. Vertical TD: 8703 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 6/30/2010
Wellbore Permit			DIRECTIONAL
Permit #:	20091259	Expiration Date:	5/12/2010
Proposed Top PZ Location:	Sec: Twp:	Footage: 847 FNL 253 FWL
Bottom Hole Location:	Sec:19 Twp: 6S 94W	Footage: 847 FNL 253 FWL
Proposed Depth/Form:	8919 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 320, Drill Unit: N2

Wellbore Completed
Completion Date:	11/14/2009
Spud Date:	11/4/2009	Spud Date Is:	ACTUAL
Measured TD:	8957 ft.	Measured PB depth:	8897 ft.
True Vertical TD:	8703 ft.	True Vertical PB depth:	8643 ft.
Top PZ Location:	Sec:19 Twp: 6S 94W	Footage: 835 FNL 302 FWL
Bottom Hole Location:	Sec:19 Twp: 6S 94W	Footage: 838 FNL 293 FWL
Log Types:	CBL; IND/DEN/NEU, MUD
Log Types:	CBL, RPM

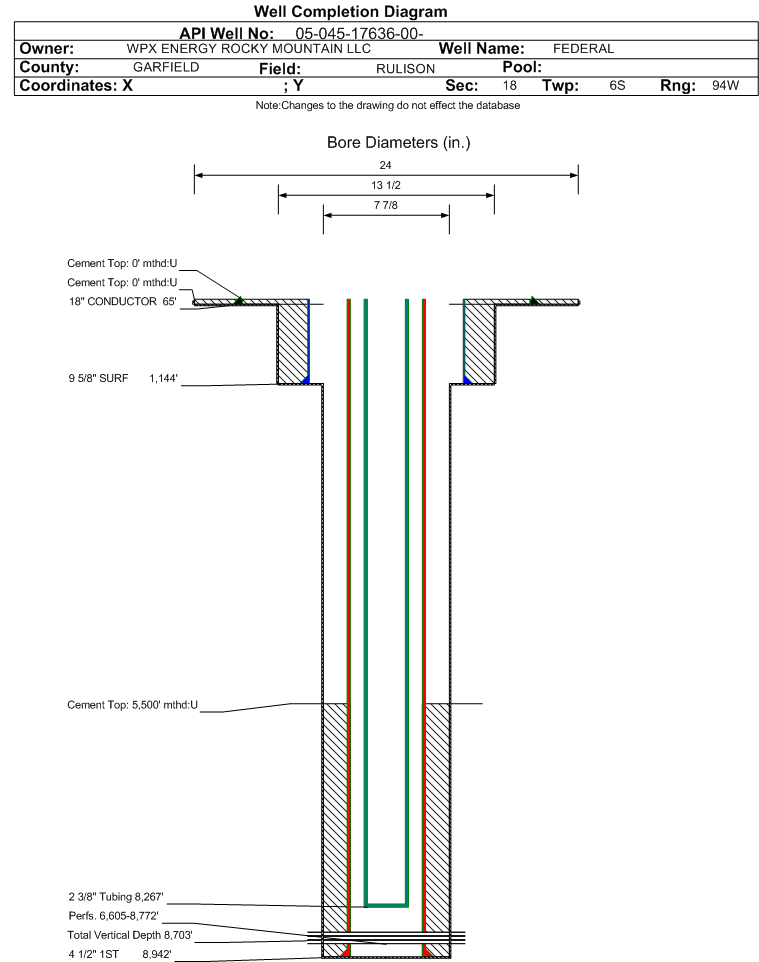

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 65 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 24, Top: 0 ft., Bottom: 65 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1144 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 320, Top: 0 ft., Bottom: 1144 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8942 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 1040, Top: 5500 ft., Bottom: 8942 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
J SAND	2766 ft.
WASATCH G	2766 ft.		N	N
MESAVERDE	5312 ft.
CAMEO	7916 ft.
ROLLINS	8858 ft.

Formation WFCM Formation Classification: GW Status: PR - 8/31/2010 Interval Top: 6605 ft. Interval Bottom: 8772 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	12/20/2009	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	12/18/2009
Treatment Summary:	5559 GALS 7 1/2% HCL: 955230 # 20/40 SAND: 27601 BBLS SLICKWATER (SUMMARY)

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	8267 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	6/30/2010	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1107
CASING_PRESS	1798
MCF_GAS	907
TUBING_PRESS	1586

Perforation Data:
Interval Top:	6605 ft.	# Of Holes:	156
Interval Bottom:	8772 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	45
Total Gas Produced (MCF)	29951
GOR	665577
GOR Determination	MCFE
Average BOE per Day	14.262
Average MCFE per Day	82.729

Federal Financial Assurance

Tribal Well
