Wellbore #00 Wellbore Classification: GW Status: PR - 6/30/2010 Measured TD: 8860 ft. Vertical TD: 8673 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/30/2010 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20091252 | Expiration Date: | 5/12/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1321 FNL 1611 FWL | | Bottom Hole Location: | Sec:19 Twp: 6S 94W | Footage: 1321 FNL 1611 FWL | | Proposed Depth/Form: | 8871 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 320, Drill Unit: N2 |
| | |

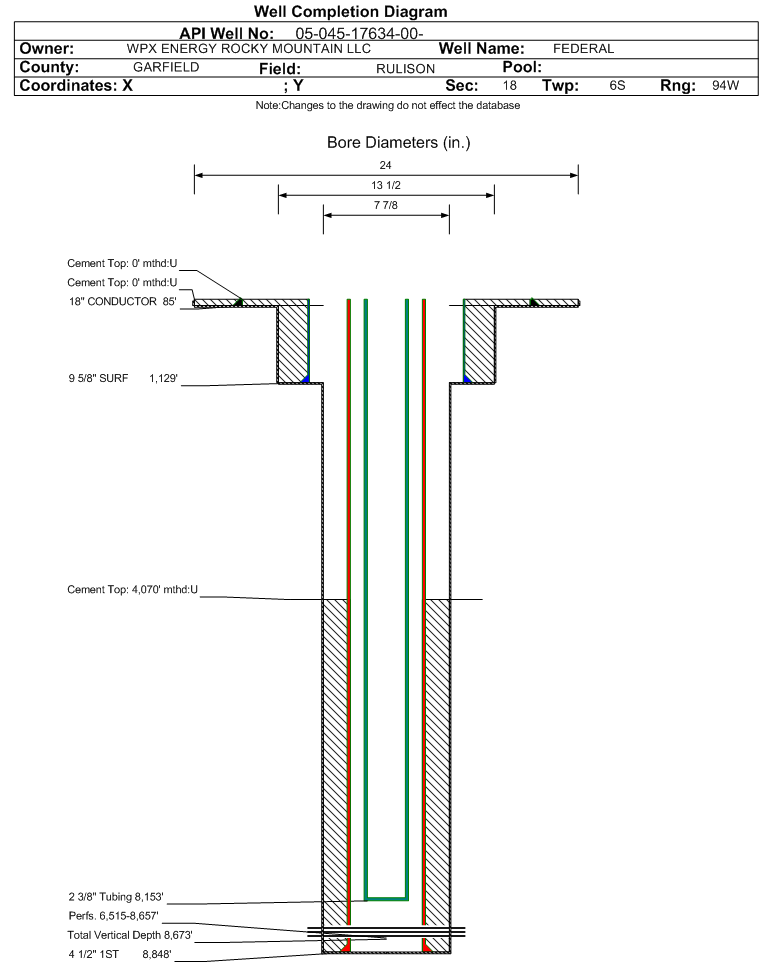

| Wellbore Completed | | Completion Date: | 12/6/2009 | | Spud Date: | 11/24/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 8860 ft. | Measured PB depth: | 8812 ft. | | True Vertical TD: | 8673 ft. | True Vertical PB depth: | 8673 ft. | | Top PZ Location: | Sec:19 Twp: 6S 94W | Footage: 1290 FNL 1537 FWL | | Bottom Hole Location: | Sec:19 Twp: 6S 94W | Footage: 1242 FNL 1550 FWL | | Log Types: | CBL, HIGH RESOLUTION INDUCTION, SPECIAL DENSITY, DUAL SPACED NEUTRON, MUD | | Log Types: | SP/GR/HDIL/ZDL/CN AND CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 85 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 32, Top: 0 ft., Bottom: 85 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1129 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 1129 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8848 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1030, Top: 4070 ft., Bottom: 8848 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | J SAND | 2707 ft. | | | | | WASATCH G | 2707 ft. | | N | N | | MESAVERDE | 5196 ft. | | | | | CAMEO | 7811 ft. | | | | | ROLLINS | 8755 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 6/30/2010 Interval Top: 6515 ft. Interval Bottom: 8657 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/25/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 1/20/2010 | | Treatment Summary: | 3775 GALS 7 1/2% HCL: 1037748 # 20/40 SAND: 26950 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8153 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/30/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1087 | | CASING_PRESS | 1522 | | MCF_GAS | 894 | | TUBING_PRESS | 1398 |
| | Perforation Data: | | Interval Top: | 6515 ft. | # Of Holes: | 158 | | Interval Bottom: | 8657 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 46 |
| Total Gas Produced (MCF) | 29760 |
| GOR | 646956 |
| GOR Determination | MCFE |
| Average BOE per Day | 14.187 |
| Average MCFE per Day | 82.275 |
| Federal Financial Assurance | i | Y |
|
|
