COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-17633		Well Classification: GW	Status: PR - 5/1/2025
Well Name/No:	FEDERAL #RWF 421-19 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	COC62160
Facility Status:	PR	Status Date	5/1/2025
FacilityID:	299269	LocationID:	335448
County:	GARFIELD #045	Location:	SESW 18 6S94W 6
Field:	RULISON - #75400	Elevation:	5972 ft.
Basin:	PICEANCE BASIN
Planned Location:	209FSL 1620 FWL	Lat/Long: 39.518205 / -107.932489	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.518201 / -107.932488	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 5/1/2025 Measured TD: 8727 ft. Vertical TD: 8650 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 5/1/2025
Wellbore Permit			DIRECTIONAL
Permit #:	20091253	Expiration Date:	5/12/2010
Proposed Top PZ Location:	Sec: Twp:	Footage: 684 FNL 1707 FWL
Bottom Hole Location:	Sec:19 Twp: 6S 94W	Footage: 684 FNL 1707 FWL
Proposed Depth/Form:	8744 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 320, Drill Unit: N2

Wellbore Completed
Completion Date:	12/27/2009
Spud Date:	12/16/2009	Spud Date Is:	ACTUAL
Measured TD:	8727 ft.	Measured PB depth:	8674 ft.
True Vertical TD:	8650 ft.	True Vertical PB depth:	8597 ft.
Top PZ Location:	Sec:19 Twp: 6S 94W	Footage: 629 FNL 2028 FWL
Bottom Hole Location:	Sec:19 Twp: 6S 94W	Footage: 631 FNL 2039 FWL
Log Types:	CBL; MUD
Log Types:	CBL, RPM

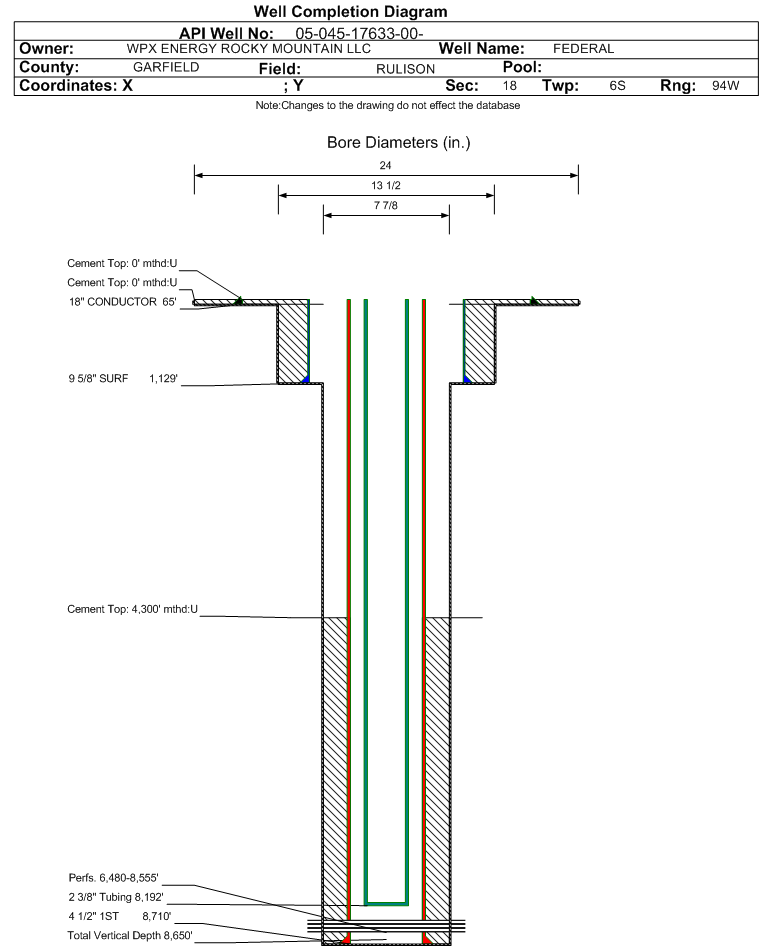

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 65 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 24, Top: 0 ft., Bottom: 65 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1129 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 320, Top: 0 ft., Bottom: 1129 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8710 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 1050, Top: 4300 ft., Bottom: 8710 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
J SAND	2641 ft.
WASATCH G	2641 ft.		N	N
MESAVERDE	5103 ft.
CAMEO	7726 ft.
ROLLINS	8637 ft.

Formation WFCM Formation Classification: GW Status: PR - 5/1/2025 Interval Top: 6480 ft. Interval Bottom: 8555 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	1/25/2010	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	1/20/2010
Treatment Summary:	3766 GALS 7 1/2% HCL: 961023 # 20/40 SAND: 27670 BBLS SLICKWATER (SUMMARY)

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	8192 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	6/30/2010	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1097
CASING_PRESS	1265
MCF_GAS	1014
TUBING_PRESS	1128

Perforation Data:
Interval Top:	6480 ft.	# Of Holes:	169
Interval Bottom:	8555 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	43
Total Gas Produced (MCF)	33193
GOR	771930
GOR Determination	MCFE
Average BOE per Day	15.657
Average MCFE per Day	90.825

Federal Financial Assurance

Tribal Well
