Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-17632		Well Classification: GW	Status: PR - 6/30/2010
Well Name/No:	FEDERAL #RWF 321-19 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	COC62160
Facility Status:	PR	Status Date	6/30/2010
FacilityID:	299268	LocationID:	335448
County:	GARFIELD #045	Location:	SESW 18 6S94W 6
Field:	RULISON - #75400	Elevation:	5972 ft.
Basin:	PICEANCE BASIN
Planned Location:	207FSL 1612 FWL	Lat/Long: 39.518200 / -107.932515	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.518195 / -107.932513	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 6/30/2010 Measured TD: 8744 ft. Vertical TD: 8638 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 6/30/2010
Wellbore Permit			DIRECTIONAL
Permit #:	20091254	Expiration Date:	5/12/2010
Proposed Top PZ Location:	Sec: Twp:	Footage: 979 FNL 1537 FWL
Bottom Hole Location:	Sec:19 Twp: 6S 94W	Footage: 979 FNL 1537 FWL
Proposed Depth/Form:	8800 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 320, Drill Unit: N2

Wellbore Completed
Completion Date:	12/15/2009
Spud Date:	12/6/2009	Spud Date Is:	ACTUAL
Measured TD:	8744 ft.	Measured PB depth:	8693 ft.
True Vertical TD:	8638 ft.	True Vertical PB depth:	8587 ft.
Top PZ Location:	Sec:19 Twp: 6S 94W	Footage: 893 FNL 1729 FWL
Bottom Hole Location:	Sec:19 Twp: 6S 94W	Footage: 898 FNL 1729 FWL
Log Types:	MUD
Log Types:	CBL, RPM

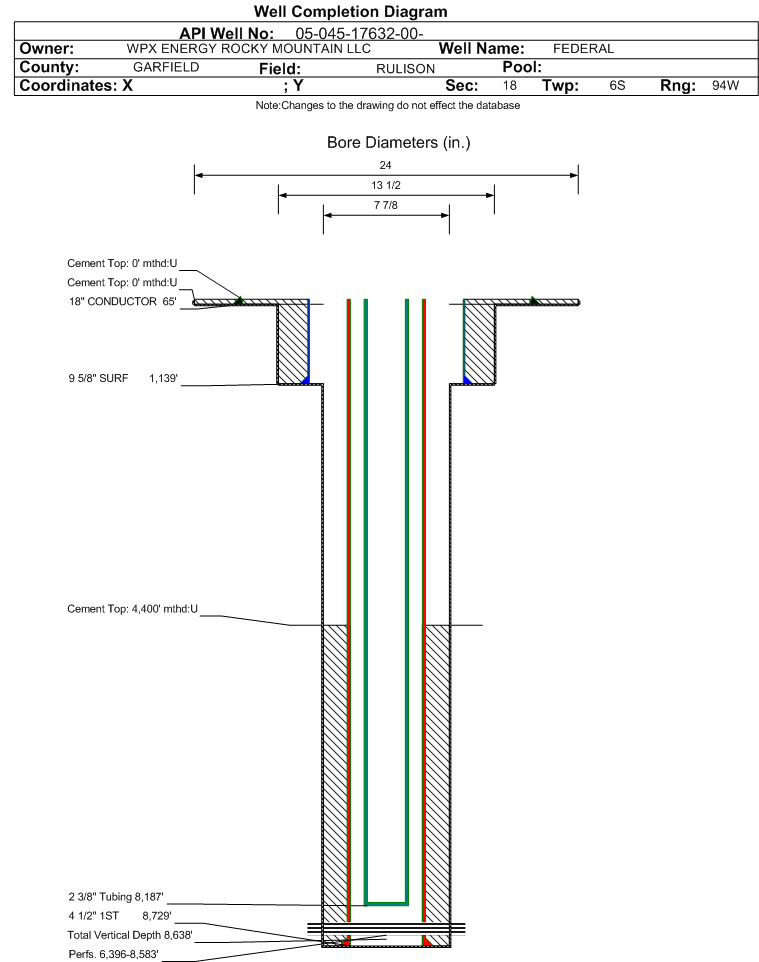

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 65 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 24, Top: 0 ft., Bottom: 65 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1139 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 320, Top: 0 ft., Bottom: 1139 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8729 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 1052, Top: 4400 ft., Bottom: 8729 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	2705 ft.
MESAVERDE	5121 ft.
CAMEO	7752 ft.
ROLLINS	8666 ft.

Formation WFCM Formation Classification: GW Status: PR - 6/30/2010 Interval Top: 6396 ft. Interval Bottom: 8583 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	1/25/2010	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	1/20/2010
Treatment Summary:	3752 GALS 7 1/2 % HCL 1006552 # 20/40 SAND: 28003 BBLS SLICKWATER (SUMMARY)

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	8187 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	6/30/2010	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1076
CASING_PRESS	1561
MCF_GAS	1026
TUBING_PRESS	1385

Perforation Data:
Interval Top:	6396 ft.	# Of Holes:	169
Interval Bottom:	8583 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	57
Total Gas Produced (MCF)	36311
GOR	637035
GOR Determination	MCFE
Average BOE per Day	17.318
Average MCFE per Day	100.437

Federal Financial Assurance

Tribal Well
