COGIS - WELL SCOUT CARD

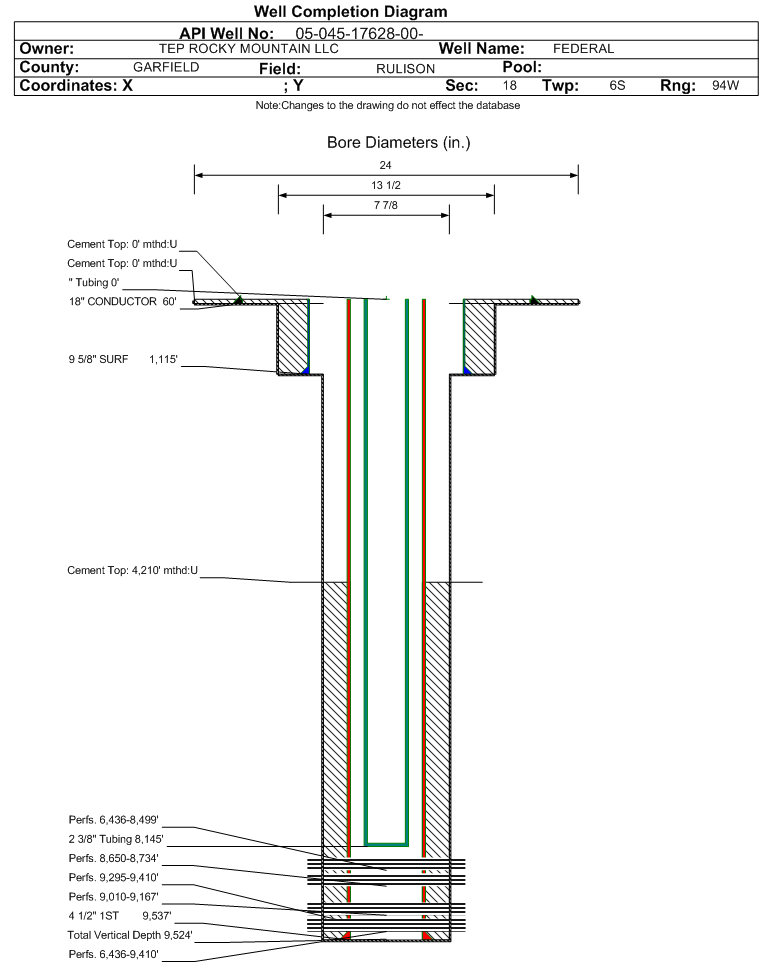

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-17628		Well Classification: GW Status: PR - 5/1/2018
Well Name/No:FEDERAL #RWF 414-18
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC62160
Facility Status:PRStatus Date5/1/2018
FacilityID:299264LocationID:335448
County:GARFIELD #045Location:SESW 18 6S94W 6
Field:RULISON - #75400Elevation:5972 ft.
Basin:PICEANCE BASIN
Planned Location:220FSL  1624 FWLLat/Long: 39.518237 / -107.932473Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.518232 / -107.932472Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/1/2018             Measured TD: 9560 ft.    Vertical TD: 9524 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/1/2018
Wellbore PermitDIRECTIONAL
Permit #:20091249 Expiration Date:5/12/2010
Proposed Top PZ Location:Sec: Twp: Footage: 707 FSL  705 FWL
Bottom Hole Location:Sec:18 Twp: 6S 94W Footage: 707 FSL  705 FWL
Proposed Depth/Form:8746 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 139-16 , Unit Acreage: 320, Drill Unit: S/2
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:3/16/2010
Spud Date:2/26/2010Spud Date Is:ACTUAL
Measured TD:9560 ft.Measured PB depth:8602 ft.
True Vertical TD:9524 ft.True Vertical PB depth:8566 ft.
Top PZ Location:Sec:18 Twp: 6S 94WFootage: 619 FSL  1115 FWL
Bottom Hole Location:Sec:18 Twp: 6S 94WFootage: 628 FSL  1123 FWL
Log Types:CBL, RESERVOIR MONITOR TOOL ELITE, MUD LOG, SPECTRALOG
Log Types:RPM and CBL
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48 , Citings Type: ACTUAL
Cement:Sacks: 22, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1115 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 1115 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9537 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1220, Top: 4210 ft., Bottom: 9537 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: 4700 ft., Depth: , Bottom: 4700 ft., Sacks: 200, Method: SQUEEZE
FormationInterval TopLog BottomCoredDSTs
WASATCH G2687 ft.
MESAVERDE5126 ft.
CAMEO7698 ft.
ROLLINS8644 ft.
COZZETTE8983 ft.
CORCORAN9293 ft.

Formation CRCRN                   Formation Classification:  GW                   Status:  AB - 2/20/2018                 Interval Top: 9295 ft.    Interval Bottom: 9410 ft.

 Completed Information for Formation CORCORAN
1st Production Date:4/17/2010Choke Size:
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/16/2010
Treatment Summary:1000 Gals 10% HCL; 87500# 20/40 Sand; 2642 Bbls Slickwater (Summary)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CRCRN.
Perforation Data:
Interval Top:9295 ft.# Of Holes:21
Interval Bottom:9410 ft.Hole Size:0.35 in.

Formation COZZ                     Formation Classification:  GW                     Status:  AB - 2/20/2018                 Interval Top: 9010 ft.    Interval Bottom: 9167 ft.

 Completed Information for Formation COZZETTE
1st Production Date:4/17/2010Choke Size:
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/12/2010
Treatment Summary:500 Gals 10% HCL; 175000 # 20/40 Sand; 4655 Bbls Slickwater (Summary)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation COZZ.
Perforation Data:
Interval Top:9010 ft.# Of Holes:30
Interval Bottom:9167 ft.Hole Size:0.35 in.

Formation RLNS                     Formation Classification:  GW                     Status:  AB - 2/20/2018                 Interval Top: 8650 ft.    Interval Bottom: 8734 ft.

 Completed Information for Formation ROLLINS
1st Production Date:4/17/2010Choke Size:
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:6/11/2010
Treatment Summary:514 Gals 10% HCL; 60400# 20/40 Sand; 1941 Bbls Slickwater (Summary)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RLNS.
Perforation Data:
Interval Top:8650 ft.# Of Holes:18
Interval Bottom:8734 ft.Hole Size:0.35 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/1/2018                  Interval Top: 6436 ft.    Interval Bottom: 8499 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:4/25/2010Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/17/2010
Treatment Summary:5507 Gals 10% HCL; 104700 # 20/40 Sand; 1047725 100/Mesh; 31576 Bbls Slickwater (summary)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
Perforation Data:
Interval Top:6436 ft.# Of Holes:191
Interval Bottom:8499 ft.Hole Size:0.35 in.

Formation WFILS                   Formation Classification:  GW                   Status:  CM - 8/31/2010                 Interval Top: 6436 ft.    Interval Bottom: 9410 ft.

 Completed Information for Formation WILLIAMS FORK-ILES
1st Production Date:4/17/2010Choke Size:
Formation Name:WILLIAMS FORK-ILESCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:4/16/2010
Treatment Summary:7521 Gals 10% HCL; 367200 # 20/40 Sand; 1047725 100/Mesh; 40816 Bbls Slickwater (Summary)
Tubing Size:2.375 in.Tubing Setting Depth:8145 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/31/2010Test Method:Flowing
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BTU_GAS 976
CALC_MCF_GAS 1163
CASING_PRESS 2459
MCF_GAS 1163
TUBING_PRESS 2295
Perforation Data:
Interval Top:6436 ft.# Of Holes:260
Interval Bottom:9410 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)86
Total Gas Produced (MCF)40880
GOR475348
GOR DeterminationMCFE
Average BOE per Day19.554
Average MCFE per Day113.416

 Federal Financial Assurance  i Y

 Tribal Well  i No
