COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-17579		Well Classification: GW Status: PR - 1/1/2023
Well Name/No:GMU #33-3D1(G33NW)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 54737
Facility Status:PRStatus Date1/1/2023
FacilityID:299159LocationID:335399
County:GARFIELD #045Location:SWNE 33 6S93W 6
Field:MAMM CREEK - #52500Elevation:6650 ft.
Basin:PICEANCE BASIN
Planned Location:1760FNL  1563 FELLat/Long: 39.485131 / -107.776342Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.485129 / -107.776335Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/1/2023             Measured TD: 9415 ft.    Vertical TD: 9175 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/1/2023
Wellbore PermitDIRECTIONAL
Permit #:20085731 Expiration Date:10/20/2009
Proposed Top PZ Location:Sec: Twp: Footage: 970 FNL  2020 FWL
Bottom Hole Location:Sec:33 Twp: 6S 93W Footage: 970 FNL  2020 FWL
Proposed Depth/Form:9631 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:GMU Unit Number:COC56608E
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 920 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 307, Top: 0 ft., Bottom: 920 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 9631 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 876, Top: , Bottom: 9631 ft.

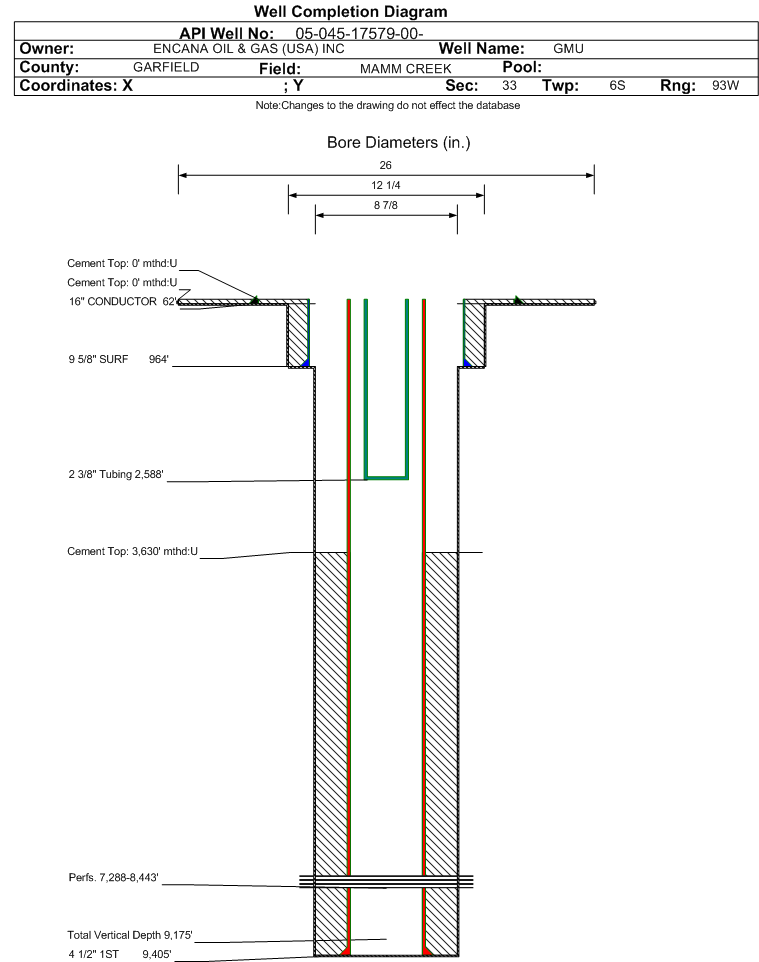

Wellbore Completed
Completion Date:4/28/2009
Spud Date:3/20/2009Spud Date Is:ACTUAL
Measured TD:9415 ft.Measured PB depth:9363 ft.
True Vertical TD:9175 ft.True Vertical PB depth:9123 ft.
Top PZ Location:Sec:33 Twp: 6S 96WFootage: 990 FNL  2019 FWL
Bottom Hole Location:Sec:33 Twp: 6S 96WFootage: 1009 FNL  1985 FWL
Log Types:RST AND CBL
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 62 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 0, Top: 0 ft., Bottom: 62 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 964 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 333, Top: 0 ft., Bottom: 964 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9405 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 967, Top: 3630 ft., Bottom: 9405 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
OHIO CREEK5583 ft.6100 ft.
WILLIAMS FORK6101 ft.7274 ft.
ROLLINS9250 ft.9415 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 1/1/2023                  Interval Top: 7288 ft.    Interval Bottom: 8443 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:8/14/2009Choke Size:
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/17/2009
Treatment Summary:STAGES 3-7 TREATED WITH A TOTAL OF BBLS OF SLICKWATER AND 1000 OF 7.5 HCL.
Tubing Size:2.375 in.Tubing Setting Depth:2588 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/26/2009Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 92
BTU_GAS 1170
CALC_BBLS_H2O 92
CALC_MCF_GAS 986
CASING_PRESS 750
MCF_GAS 986
TUBING_PRESS 325
Perforation Data:
Interval Top:7288 ft.# Of Holes:135
Interval Bottom:8443 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)17
Total Gas Produced (MCF)5195
GOR305588
GOR DeterminationMCFE
Average BOE per Day2.497
Average MCFE per Day14.492

 Federal Financial Assurance  i Y

 Tribal Well  i No
