Wellbore #00 Wellbore Classification: GW Status: PR - 1/1/2023 Measured TD: 9138 ft. Vertical TD: 9099 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/1/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20085486 | Expiration Date: | 10/16/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1040 FNL 1385 FEL | | Bottom Hole Location: | Sec:33 Twp: 6S 93W | Footage: 1040 FNL 1385 FEL | | Proposed Depth/Form: | 9377 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GRASS MESA UNIT | Unit Number: | COC56608E | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

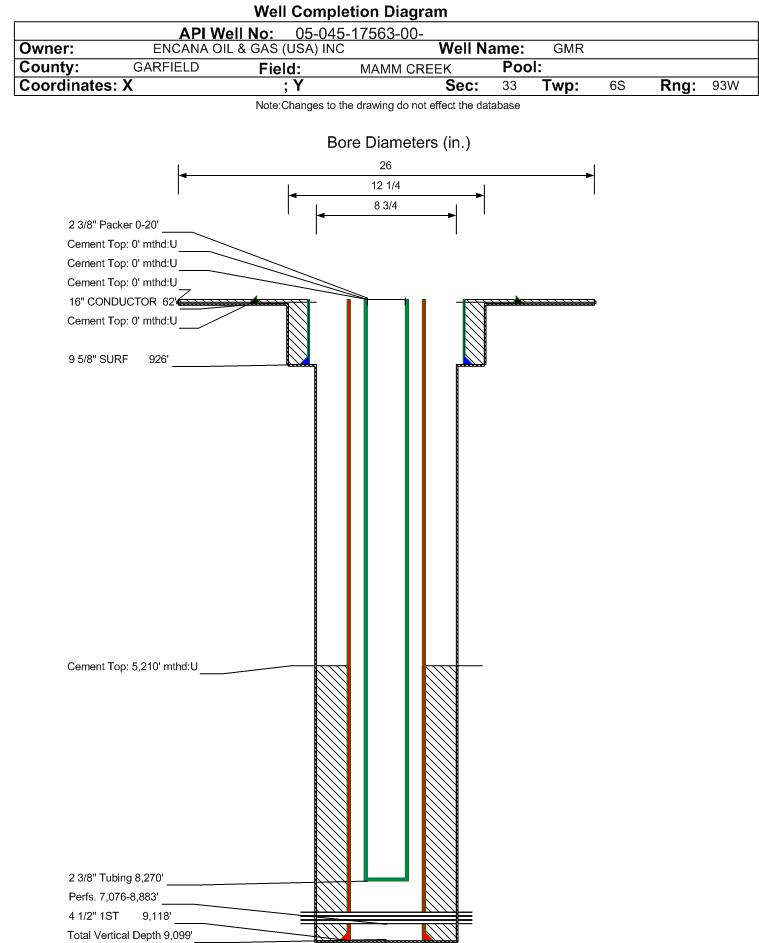

| Wellbore Completed | | Completion Date: | 4/10/2009 | | Spud Date: | 3/24/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 9138 ft. | Measured PB depth: | 9070 ft. | | True Vertical TD: | 9099 ft. | True Vertical PB depth: | 9031 ft. | | Top PZ Location: | Sec:33 Twp: 6S 93W | Footage: 1058 FNL 1387 FEL | | Bottom Hole Location: | Sec:33 Twp: 6S 93W | Footage: 1058 FNL 1387 FEL | | Log Types: | RST,CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 62 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 926 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 325, Top: 0 ft., Bottom: 926 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9118 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 789, Top: 5210 ft., Bottom: 9138 ft., Determination Method: CBL | | Casing: | String Type: 3RD, Hole Size: , Size: , Top: 0 ft., Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Casing: | String Type: 1ST LINER, Hole Size: , Size: , Top: 0 ft., Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 5392 ft. | N | N | | OHIO CREEK | 5393 ft. | 5933 ft. | N | N | | WILLIAMS FORK | 5934 ft. | 9022 ft. | N | N | | ROLLINS | 9023 ft. | 9138 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 1/1/2023 Interval Top: 7076 ft. Interval Bottom: 8883 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 8/15/2009 | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/11/2009 | | Treatment Summary: | STAGES 01-07, TREATED WITH A TOTAL OF; 61049.7 BBLS OF SLICKWATER, 347700 LBS 20-40 SND, 418700 LBS 20/40 WHITE SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8270 ft. | | Tubing Packer Depth: | 0 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/30/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 2 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 2 | | CALC_GOR | 0 | | CALC_MCF_GAS | 912 | | CASING_PRESS | 875 | | MCF_GAS | 912 | | TUBING_PRESS | 600 |
| | Perforation Data: | | Interval Top: | 7076 ft. | # Of Holes: | 189 | | Interval Bottom: | 8883 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 64 |
| Total Gas Produced (MCF) | 15791 |
| GOR | 246734 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.638 |
| Average MCFE per Day | 44.275 |
| Federal Financial Assurance | i | Y |
|
|
