Wellbore #00 Wellbore Classification: GW Status: PR - 8/13/2008 Measured TD: 6637 ft. Vertical TD: 6578 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/13/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20085492 | Expiration Date: | 10/15/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2136 FNL 1436 FEL | | Bottom Hole Location: | Sec:32 Twp: 6S 96W | Footage: 2136 FNL 1436 FEL | | Proposed Depth/Form: | 6603 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-13 , Unit Acreage: 160, Drill Unit: NE4 |
| | |

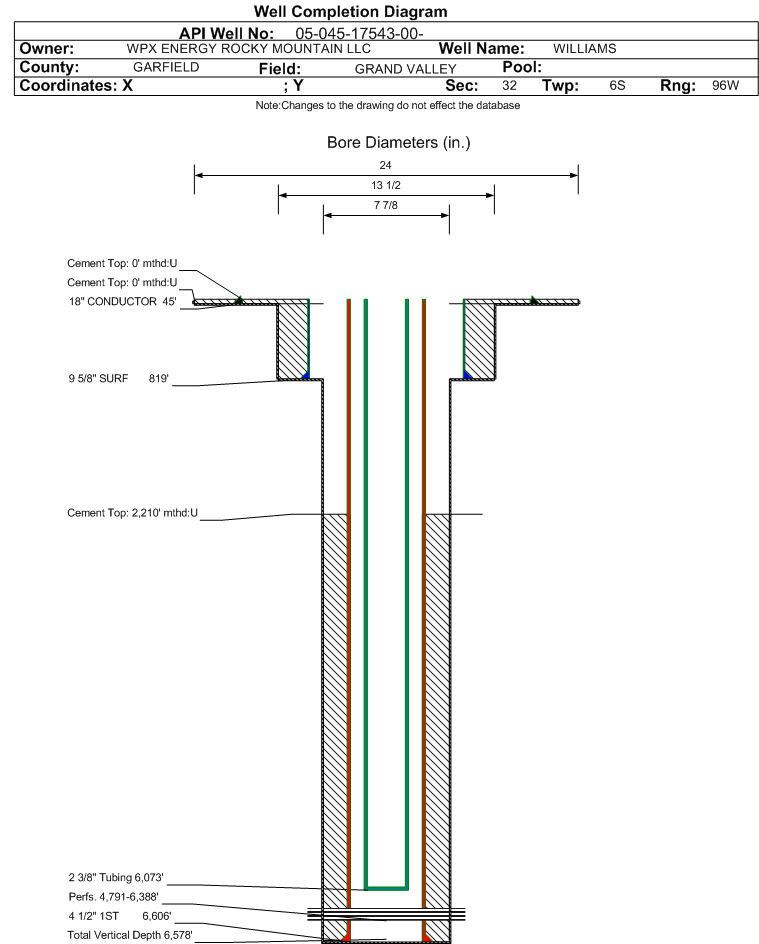

| Wellbore Completed | | Completion Date: | 1/26/2009 | | Spud Date: | 1/15/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 6637 ft. | Measured PB depth: | 6567 ft. | | True Vertical TD: | 6578 ft. | True Vertical PB depth: | 6508 ft. | | Top PZ Location: | Sec:32 Twp: 6S 96W | Footage: 2118 FNL 1419 FEL | | Bottom Hole Location: | Sec:32 Twp: 6S 96W | Footage: 2118 FNL 1419 FEL | | Log Types: | CBL; RMTE, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 819 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 235, Top: 0 ft., Bottom: 819 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6606 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 735, Top: 2210 ft., Bottom: 6606 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1894 ft. | | N | N | | MESAVERDE | 3525 ft. | | N | N | | CAMEO | 6043 ft. | | N | N | | ROLLINS | 6495 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 6/30/2009 Interval Top: 4791 ft. Interval Bottom: 6388 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 3/5/2009 | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/4/2009 | | Treatment Summary: | 3492 GALS 7.5% HCL; 688,100# 30/50 SAND; 19595 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6073 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/30/2009 | Test Method: | FLOWING | | Hours Tested: | 21 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1103 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CASING_PRESS | 571 | | MCF_GAS | 1048 | | TUBING_PRESS | 381 |
| | Perforation Data: | | Interval Top: | 4791 ft. | # Of Holes: | 120 | | Interval Bottom: | 6388 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 11 |
| Total Gas Produced (MCF) | 7602 |
| GOR | 691090 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.615 |
| Average MCFE per Day | 20.996 |
| Federal Financial Assurance | i | |
|
|
