Wellbore #00 Wellbore Classification: GW Status: PR - 8/6/2008 Measured TD: 7000 ft. Vertical TD: 6739 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/6/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20085506 | Expiration Date: | 10/14/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 731 FNL 1289 FEL | | Bottom Hole Location: | Sec:31 Twp: 6S 96W | Footage: 731 FNL 1289 FEL | | Proposed Depth/Form: | 6999 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-17 , Unit Acreage: 160, Drill Unit: NE4 |
| | |

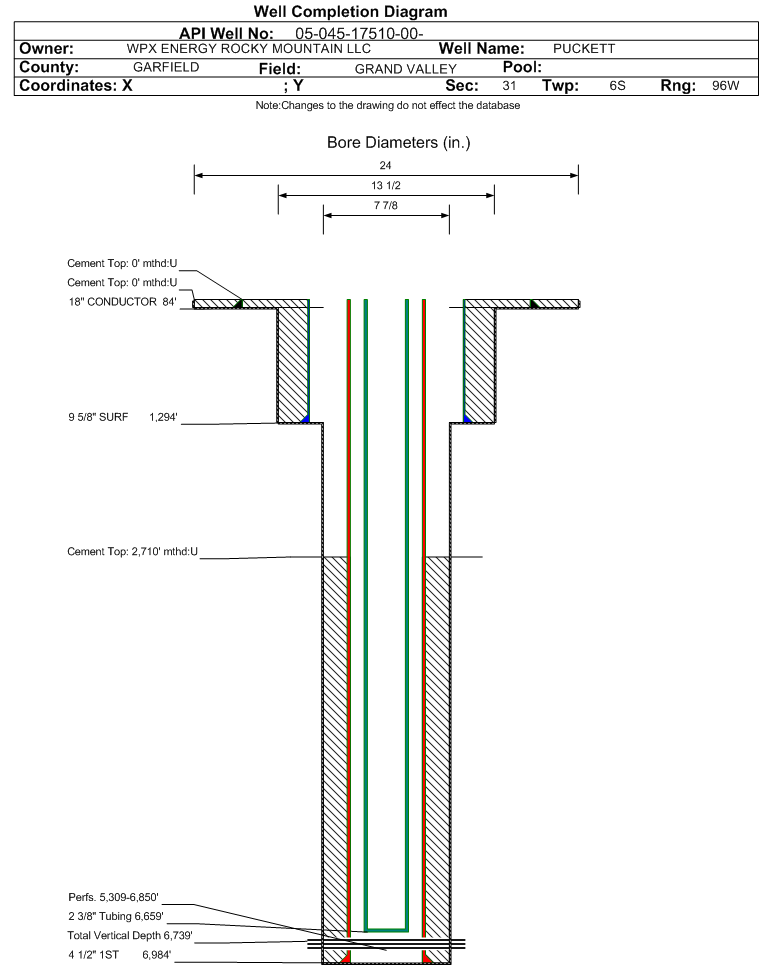

| Wellbore Completed | | Completion Date: | 7/5/2009 | | Spud Date: | 6/29/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 7000 ft. | Measured PB depth: | 6951 ft. | | True Vertical TD: | 6739 ft. | True Vertical PB depth: | 6690 ft. | | Top PZ Location: | Sec:31 Twp: 6S 96W | Footage: 729 FNL 1281 FEL | | Bottom Hole Location: | Sec:31 Twp: 6S 96W | Footage: 729 FNL 1281 FEL | | Log Types: | CBL; HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 84 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 84 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1294 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 270, Top: 0 ft., Bottom: 1294 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6984 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 740, Top: 2710 ft., Bottom: 6984 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2241 ft. | | N | N | | MESAVERDE | 3925 ft. | | N | N | | CAMEO | 6445 ft. | | N | N | | ROLLINS | 6918 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 10/31/2009 Interval Top: 5309 ft. Interval Bottom: 6850 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 8/12/2009 | Choke Size: | 0.188 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/12/2009 | | Treatment Summary: | 3000 GALS 7.5% HCL; 778314# 30/50 SAND; 24869 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6659 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/31/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1043 | | CASING_PRESS | 1645 | | MCF_GAS | 1089 | | TUBING_PRESS | 1540 |
| | Perforation Data: | | Interval Top: | 5309 ft. | # Of Holes: | 112 | | Interval Bottom: | 6850 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 30 |
| Total Gas Produced (MCF) | 23393 |
| GOR | 779766 |
| GOR Determination | MCFE |
| Average BOE per Day | 11.141 |
| Average MCFE per Day | 64.623 |
| Federal Financial Assurance | i | |
|
|
