Wellbore #00 Wellbore Classification: GW Status: PR - 8/6/2008 Measured TD: 6918 ft. Vertical TD: 6764 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/6/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20085511 | Expiration Date: | 10/13/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1006 FNL 1216 FEL | | Bottom Hole Location: | Sec:31 Twp: 6S 96W | Footage: 1006 FNL 1216 FEL | | Proposed Depth/Form: | 6896 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-17 , Unit Acreage: 160, Drill Unit: NE4 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1300 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 1300 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6896 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

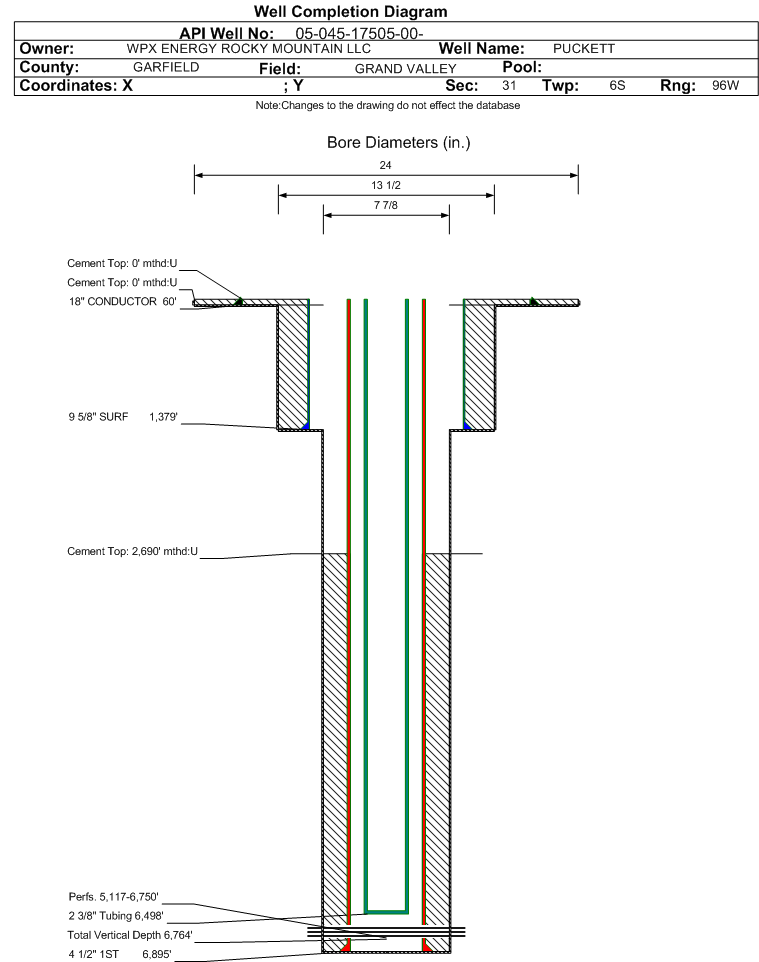

| Wellbore Completed | | Completion Date: | 6/29/2009 | | Spud Date: | 6/22/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 6918 ft. | Measured PB depth: | 6865 ft. | | True Vertical TD: | 6764 ft. | True Vertical PB depth: | 6711 ft. | | Top PZ Location: | Sec:31 Twp: 6S 96W | Footage: 1006 FNL 1212 FEL | | Bottom Hole Location: | Sec:31 Twp: 6S 96W | Footage: 1011 FNL 1234 FEL | | Log Types: | CBL, RMTE, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 60 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1379 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 345, Top: 0 ft., Bottom: 1379 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6895 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 750, Top: 2690 ft., Bottom: 6895 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2201 ft. | | N | N | | MESAVERDE | 3806 ft. | | N | N | | CAMEO | 6324 ft. | | N | N | | ROLLINS | 6799 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 10/31/2009 Interval Top: 5117 ft. Interval Bottom: 6750 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 8/12/2009 | Choke Size: | 0.188 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/12/2009 | | Treatment Summary: | 3023 GALS 7.5% HCL; 843171# 30/50 SAND; 24436 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6498 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/31/2009 | Test Method: | FLOWING | | Hours Tested: | 21 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1043 | | CASING_PRESS | 1532 | | MCF_GAS | 983 | | TUBING_PRESS | 1413 |
| | Perforation Data: | | Interval Top: | 5117 ft. | # Of Holes: | 113 | | Interval Bottom: | 6750 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 11 |
| Total Gas Produced (MCF) | 8240 |
| GOR | 749090 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.922 |
| Average MCFE per Day | 22.763 |
| Federal Financial Assurance | i | |
|
|
