COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-17503		Well Classification: GW	Status: PR - 10/14/2008
Well Name/No:	PUCKETT #GM 341-31 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PR	Status Date	10/14/2008
FacilityID:	298969	LocationID:	335222
County:	GARFIELD #045	Location:	SENE 31 6S96W 6
Field:	GRAND VALLEY - #31290	Elevation:	5938 ft.
Basin:	PICEANCE BASIN
Planned Location:	1885FNL 515 FEL	Lat/Long: 39.481583 / -108.143542	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.481577 / -108.143535	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 8/6/2008 Measured TD: 6825 ft. Vertical TD: 6763 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 8/6/2008
Wellbore Permit			DIRECTIONAL
Permit #:	20085512	Expiration Date:	10/13/2009
Proposed Top PZ Location:	Sec: Twp:	Footage: 1169 FNL 659 FEL
Bottom Hole Location:	Sec:31 Twp: 6S 96W	Footage: 1169 FNL 659 FEL
Proposed Depth/Form:	6845 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 479-17 , Unit Acreage: 160, Drill Unit: NE/4

Wellbore Completed
Completion Date:	6/16/2009
Spud Date:	6/10/2009	Spud Date Is:	ACTUAL
Measured TD:	6825 ft.	Measured PB depth:	6773 ft.
True Vertical TD:	6763 ft.	True Vertical PB depth:	6711 ft.
Top PZ Location:	Sec:31 Twp: 6S 96W	Footage: 1170 FNL 666 FEL
Bottom Hole Location:	Sec:31 Twp: 6S 96W	Footage: 1170 FNL 666 FEL
Log Types:	CBL; HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON; MUD

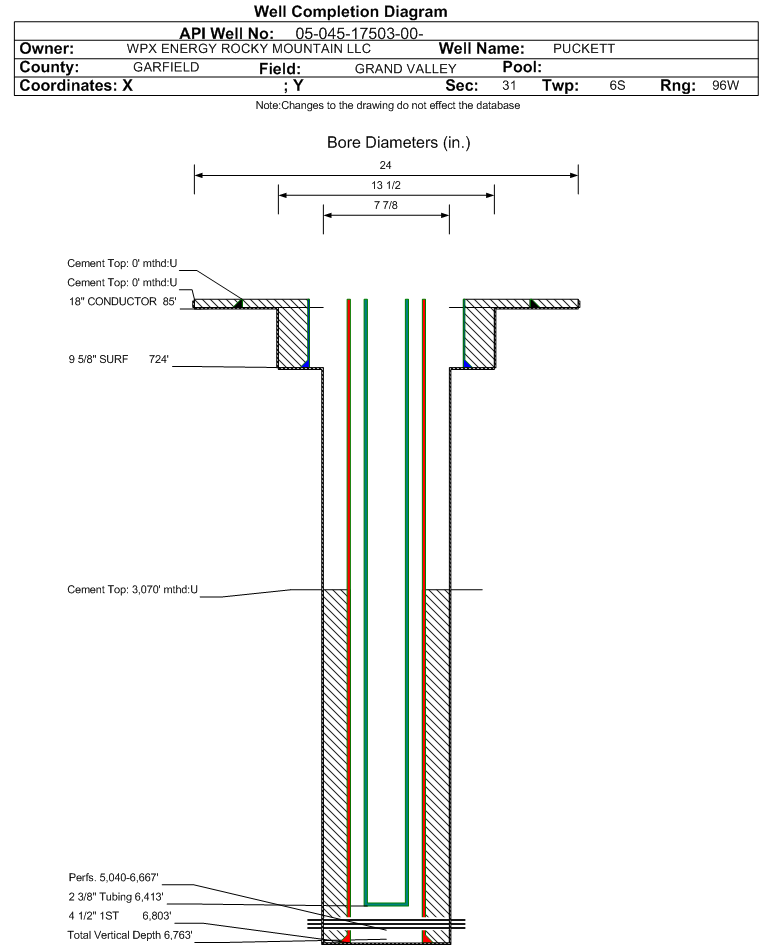

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 85 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: , Top: 0 ft., Bottom: 85 ft., Determination Method:
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 724 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 210, Top: 0 ft., Bottom: 724 ft., Determination Method:
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6803 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 750, Top: 3070 ft., Bottom: 6803 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	2166 ft.		N	N
MESAVERDE	3754 ft.		N	N
CAMEO	6256 ft.		N	N
ROLLINS	6718 ft.		N	N

Formation WFCM Formation Classification: GW Status: PR - 10/31/2009 Interval Top: 5040 ft. Interval Bottom: 6667 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	8/12/2009	Choke Size:	0.203 in.
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	8/12/2009
Treatment Summary:	3001 GALS 7.5% HCL; 608128# 30/50 SAND; 122130# 100MESH; 22377 BBLS SLICKWATER

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	6413 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	10/31/2009	Test Method:	FLOWING
Hours Tested:	21	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1051
CASING_PRESS	1511
MCF_GAS	994
TUBING_PRESS	1385

Perforation Data:
Interval Top:	5040 ft.	# Of Holes:	123
Interval Bottom:	6667 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	15
Total Gas Produced (MCF)	12659
GOR	843933
GOR Determination	MCFE
Average BOE per Day	6.014
Average MCFE per Day	34.897

Federal Financial Assurance

Tribal Well
