Wellbore #00 Wellbore Classification: GW Status: PR - 5/1/2012 Measured TD: 6943 ft. Vertical TD: 6761 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/1/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 7/10/2012 | | Proposed Top PZ Location: | Sec:33 Twp: 6S 96W | Footage: 2378 FNL 159 FWL | | Bottom Hole Location: | Sec:33 Twp: 6S 96W | Footage: 2378 FNL 159 FWL | | Proposed Depth/Form: | 6896 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-17 , Unit Acreage: 160, Drill Unit: NW/4 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 770 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 250, Top: 0 ft., Bottom: 770 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6896 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 540, Top: , Bottom: 6896 ft. |
| | |

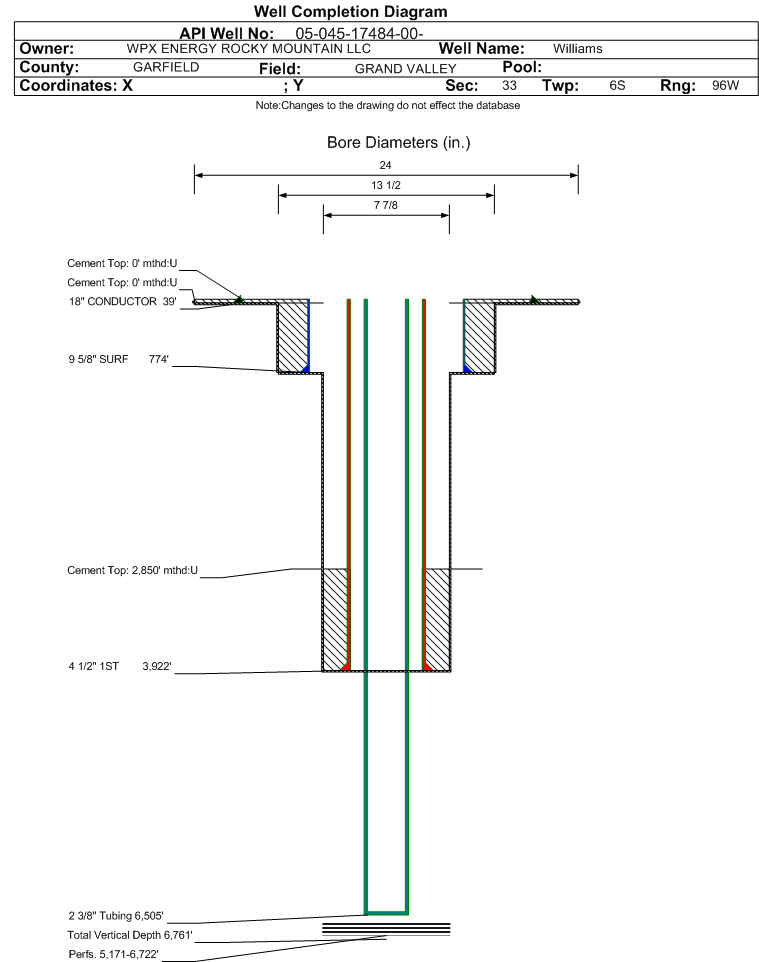

| Wellbore Completed | | Completion Date: | 10/4/2010 | | Spud Date: | 9/26/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 6943 ft. | Measured PB depth: | 6860 ft. | | True Vertical TD: | 6761 ft. | True Vertical PB depth: | 6678 ft. | | Top PZ Location: | Sec:33 Twp: 6S 96W | Footage: 2365 FNL 205 FWL | | Bottom Hole Location: | Sec:33 Twp: 6S 96W | Footage: 2383 FNL 182 FWL | | Log Types: | GAMMA RAY, HIGH DEFINITION INDUCTION LOG, COMPENSATED Z-DENSILOG, COMPENSATED NEUTRON LOG AND CBL. | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 39 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 15, Top: 0 ft., Bottom: 39 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 774 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 240, Top: 0 ft., Bottom: 774 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 3922 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 980, Top: 2850 ft., Bottom: 3922 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2077 ft. | | | | | MESAVERDE | 3728 ft. | | | | | CAMEO | 6300 ft. | | | | | ROLLINS | 6806 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 5/1/2012 Interval Top: 5171 ft. Interval Bottom: 6722 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/30/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 11/29/2010 | | Treatment Summary: | 2537 GALS 7 1/2% HCL; 524278# 40/70 SAND; 17865 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6505 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/28/2011 | Test Method: | FLOWING | | Hours Tested: | 21 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1063 | | CASING_PRESS | 309 | | MCF_GAS | 673 | | TUBING_PRESS | 220 |
| | Perforation Data: | | Interval Top: | 5171 ft. | # Of Holes: | 111 | | Interval Bottom: | 6722 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 21 |
| Total Gas Produced (MCF) | 17416 |
| GOR | 829333 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.280 |
| Average MCFE per Day | 48.063 |
| Federal Financial Assurance | i | Y |
|
|
