Wellbore #00 Wellbore Classification: GW Status: PR - 10/10/2013 Measured TD: 8045 ft. Vertical TD: 7638 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/10/2013 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 10/27/2013 | | Proposed Top PZ Location: | Sec:34 Twp: 6S 94W | Footage: 634 FNL 730 FWL | | Bottom Hole Location: | Sec:34 Twp: 6S 94W | Footage: 634 FNL 730 FWL | | Proposed Depth/Form: | 8010 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 320, Drill Unit: W/2W/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1792 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 462, Top: 0 ft., Bottom: 1792 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8010 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 694, Top: 0 ft., Bottom: 8010 ft. |
| | |

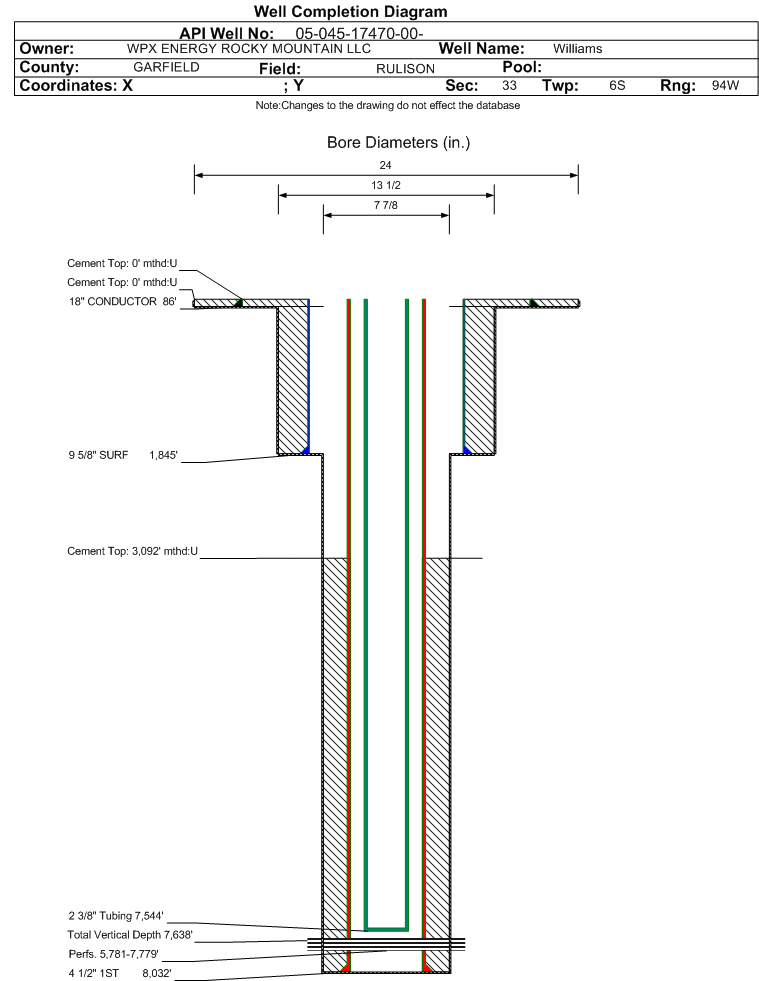

| Wellbore Completed | | Completion Date: | 6/27/2013 | | Spud Date: | 6/18/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 8045 ft. | Measured PB depth: | 7998 ft. | | True Vertical TD: | 7638 ft. | True Vertical PB depth: | 7591 ft. | | Top PZ Location: | Sec:34 Twp: 6S 94W | Footage: 640 FNL 747 FWL | | Bottom Hole Location: | Sec:34 Twp: 6S 94W | Footage: 632 FNL 746 FWL | | Log Types: | RPM/CBL/MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 86 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 32, Top: 0 ft., Bottom: 86 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1845 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 445, Top: 0 ft., Bottom: 1845 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8032 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1420, Top: 3092 ft., Bottom: 8032 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1591 ft. | | | | | MESAVERDE | 4202 ft. | | | | | CAMEO | 7012 ft. | | | | | ROLLINS | 7851 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 8/31/2013 Interval Top: 5781 ft. Interval Bottom: 7779 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 8/12/2013 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/12/2013 | Treatment End Date: | 8/16/2013 | | Treatment Summary: | 1378 Gals 7 ½% HCL; 727350 # 40/70 Sand: 19727 Bbls Slickwater (Summary)
| | Total fluid used in treatment (bbls): | 19759 | Max pressure during treatment (psi): | 5938 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 6 | | Total acid used in treatment (bbls): | 32 | Min frac gradient (psi/ft): | 0.91 | | Recycled water used in treatment (bbls): | 19727 | Total flowback volume recovered (bbls): | 7928 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 727350 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7544 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/31/2013 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1060 | | CALC_MCF_GAS | 1001 | | CASING_PRESS | 2032 | | MCF_GAS | 1001 | | TUBING_PRESS | 1689 |
| | Perforation Data: | | Interval Top: | 5781 ft. | # Of Holes: | 132 | | Interval Bottom: | 7779 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 52 |
| Total Gas Produced (MCF) | 29044 |
| GOR | 558538 |
| GOR Determination | MCFE |
| Average BOE per Day | 13.866 |
| Average MCFE per Day | 80.428 |
| Federal Financial Assurance | i | |
|
|
