Wellbore #00 Wellbore Classification: GW Status: PR - 1/13/2010 Measured TD: 7194 ft. Vertical TD: 6842 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/13/2010 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20085304 | Expiration Date: | 10/6/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 225 FSL 660 FEL | | Bottom Hole Location: | Sec:28 Twp: 6S 92W | Footage: 225 FSL 660 FEL | | Proposed Depth/Form: | 7185 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 160, Drill Unit: SE4 |
| | |

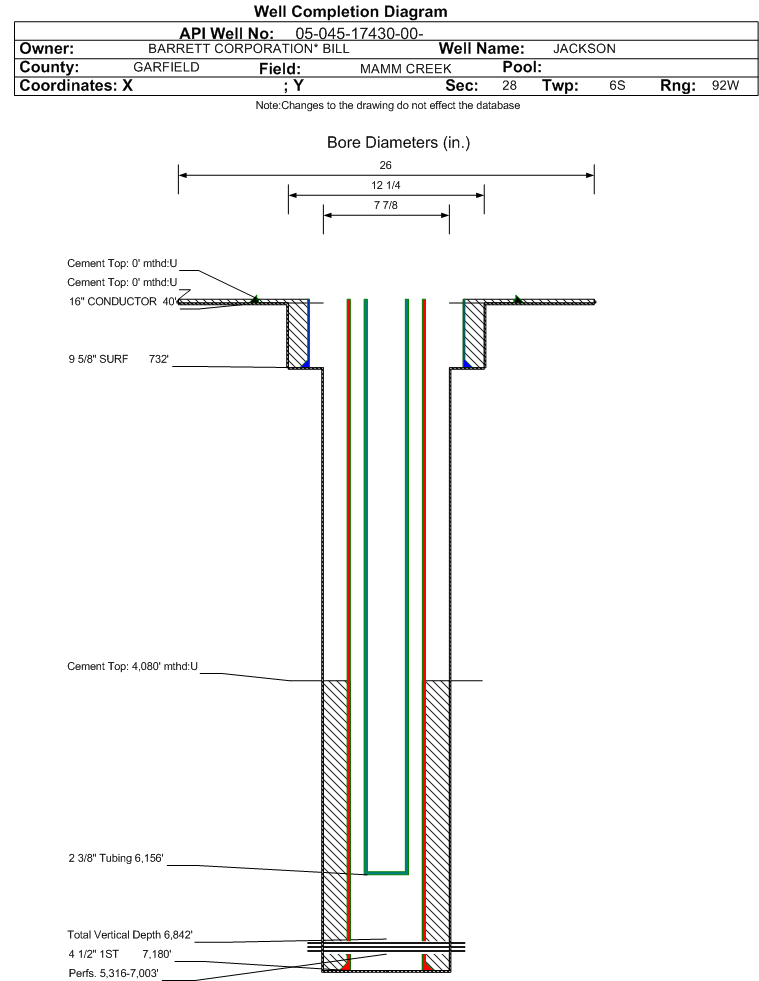

| Wellbore Completed | | Completion Date: | 6/22/2009 | | Spud Date: | 11/19/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 7194 ft. | Measured PB depth: | 7180 ft. | | True Vertical TD: | 6842 ft. | True Vertical PB depth: | 6828 ft. | | Top PZ Location: | Sec:28 Twp: 6S 92W | Footage: 244 FSL 649 FEL | | Bottom Hole Location: | Sec:28 Twp: 6S 92W | Footage: 244 FSL 649 FEL | | Log Types: | TRIPLE COMBO, TEMP LOG, CBL, MUD, AISF, HOLE VOL, DEN/NEU | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 732 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 732 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7180 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 575, Top: 4080 ft., Bottom: 7194 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3265 ft. | | N | N | | ROLLINS | 7058 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 1/13/2010 Interval Top: 5316 ft. Interval Bottom: 7003 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 12/29/2009 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/15/2009 | | Treatment Summary: | 952600 LBS 20-40 SAND, 107800 LBS SLC 20-40, 49488 BBLS SLICKWATER. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6156 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/13/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 235 | | BBLS_OIL | 47 | | BTU_GAS | 1140 | | CALC_BBLS_H2O | 235 | | CALC_BBLS_OIL | 47 | | CALC_GOR | 44863 | | CALC_MCF_GAS | 2109 | | CASING_PRESS | 1300 | | MCF_GAS | 2109 | | TUBING_PRESS | 1250 |
| | Perforation Data: | | Interval Top: | 5316 ft. | # Of Holes: | 160 | | Interval Bottom: | 7003 ft. | Hole Size: | 0.3 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 53 |
| Total Gas Produced (MCF) | 11708 |
| GOR | 220905 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.619 |
| Average MCFE per Day | 32.613 |
