COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-17428		Well Classification: GW Status: PR - 11/11/2010
Well Name/No:JACKSON #33A-28-692
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date11/11/2010
FacilityID:298796LocationID:335505
County:GARFIELD #045Location:NWSE 28 6S92W 6
Field:MAMM CREEK - #52500Elevation:5784 ft.
Basin:PICEANCE BASIN
Planned Location:1483FSL  1571 FELLat/Long: 39.494783 / -107.667684Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.494785 / -107.667685Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/11/2010             Measured TD: 7175 ft.    Vertical TD: 7150 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/11/2010
Wellbore PermitDIRECTIONAL
Permit #:20085301 Expiration Date:10/6/2009
Proposed Top PZ Location:Sec: Twp: Footage: 1515 FSL  1980 FEL
Bottom Hole Location:Sec:28 Twp: 6S 92W Footage: 1515 FSL  1980 FEL
Proposed Depth/Form:7170 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-10 , Unit Acreage: 160, Drill Unit: SE4
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:7/13/2009
Spud Date:11/21/2008Spud Date Is:ACTUAL
Measured TD:7175 ft.Measured PB depth:7164 ft.
True Vertical TD:7150 ft.True Vertical PB depth:7139 ft.
Top PZ Location:Sec:28 Twp: 6S 92WFootage: 1526 FSL  1983 FEL
Bottom Hole Location:Sec:28 Twp: 6S 92WFootage: 1526 FSL  1983 FEL
Log Types:TC, TEMP LOG, CBL, MUD, HOLE VOL, CD/CN, MONOPOLE, FULL WAVE SONIC,, AISF

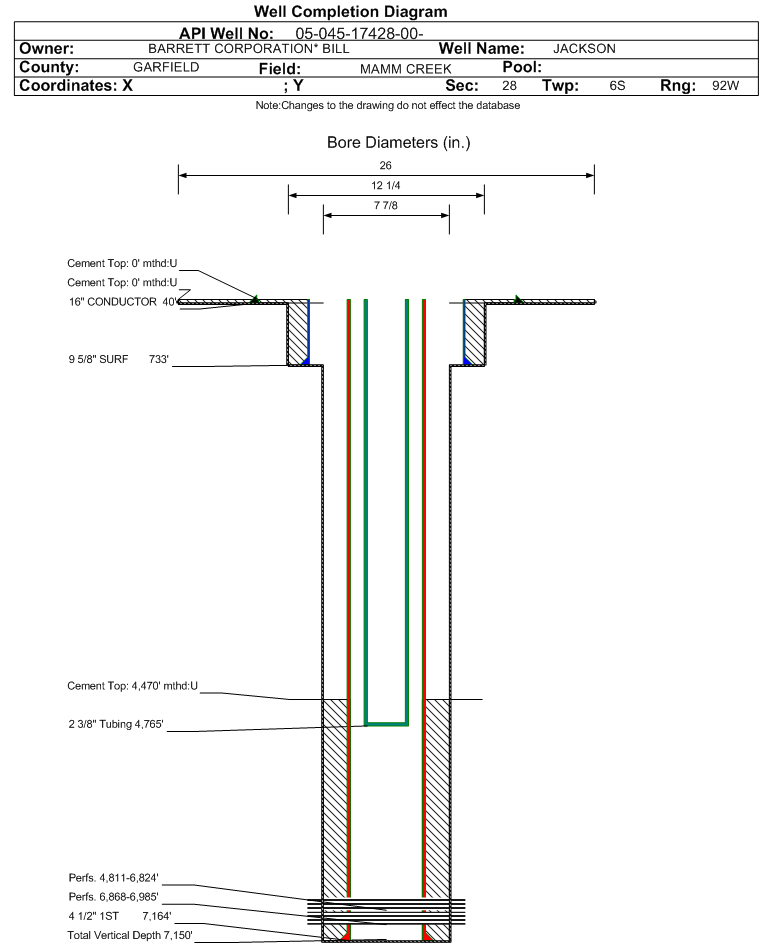

Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 733 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 732 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7164 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 545, Top: 4470 ft., Bottom: 7175 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3160 ft.NN
ROLLINS6858 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 1/11/2010                 Interval Top: 6868 ft.    Interval Bottom: 6985 ft.

 Completed Information for Formation ROLLINS
1st Production Date:1/1/2010Choke Size:0.375 in.
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/16/2009
Treatment Summary:143000 LBS 20-40 SAND, 16000 LBS SLC 20-40, 7375 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:4765 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/11/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1140
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 79
CASING_PRESS 1500
MCF_GAS 79
TUBING_PRESS 1320
Perforation Data:
Interval Top:6868 ft.# Of Holes:24
Interval Bottom:6985 ft.Hole Size:0.3 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 11/11/2010                Interval Top: 4811 ft.    Interval Bottom: 6824 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:1/1/2010Choke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/17/2009
Treatment Summary:1095000 LBS 20-40 SAND, 122800 LBS SLC 20-40, 51683 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:4765 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/11/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 82
BBLS_OIL 8
BTU_GAS 1140
CALC_BBLS_H2O 82
CALC_BBLS_OIL 8
CALC_GOR 190987
CALC_MCF_GAS 1509
CASING_PRESS 1500
MCF_GAS 1509
TUBING_PRESS 1320
Perforation Data:
Interval Top:4811 ft.# Of Holes:188
Interval Bottom:6824 ft.Hole Size:0.3 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)52
Total Gas Produced (MCF)11117
GOR213788
GOR DeterminationMCFE
Average BOE per Day5.357
Average MCFE per Day31.065

 Federal Financial Assurance  i

 Tribal Well  i No
