Wellbore #00 Wellbore Classification: GW Status: PR - 6/3/2009 Measured TD: 6930 ft. Vertical TD: 6713 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/3/2009 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20084806 | Expiration Date: | 9/21/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 197 FNL 810 FWL | | Bottom Hole Location: | Sec:34 Twp: 6S 96W | Footage: 197 FNL 810 FWL | | Proposed Depth/Form: | 6874 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-8 , Unit Acreage: 320, Drill Unit: N/2 |
| | |

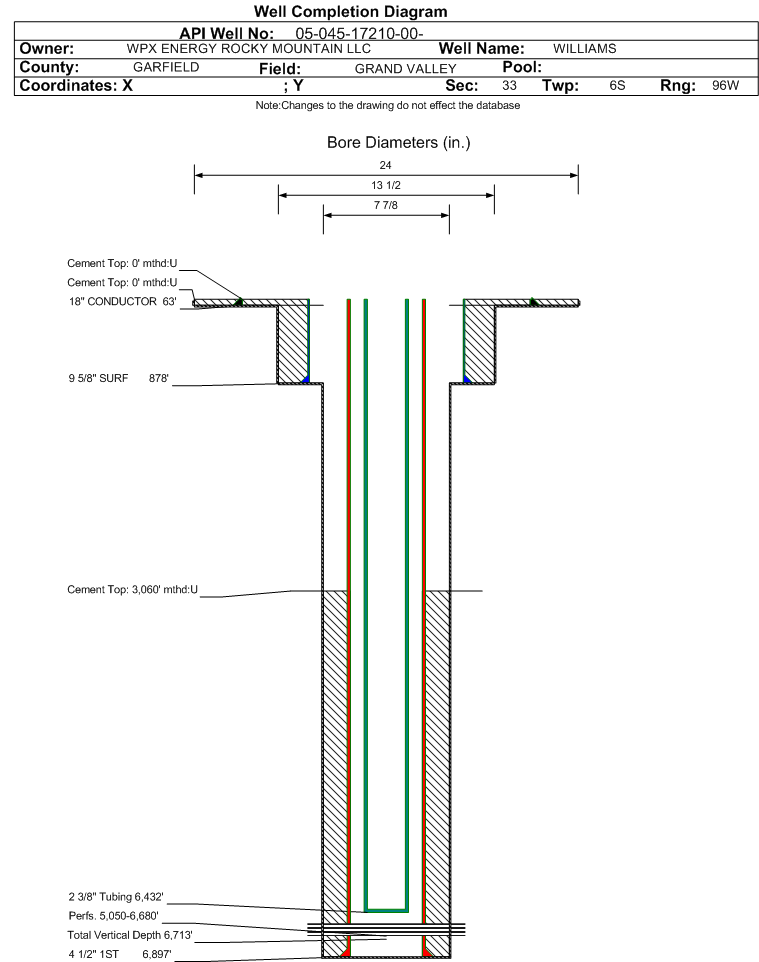

| Wellbore Completed | | Completion Date: | 3/23/2009 | | Spud Date: | 3/16/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 6930 ft. | Measured PB depth: | 6852 ft. | | True Vertical TD: | 6713 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:34 Twp: 6S 96W | Footage: 210 FNL 788 FWL | | Bottom Hole Location: | Sec:34 Twp: 6S 96W | Footage: 210 FNL 788 FWL | | Log Types: | CBL; RMTE; MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 63 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 63 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 878 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 257, Top: 0 ft., Bottom: 878 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6897 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 953, Top: 3060 ft., Bottom: 6897 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1825 ft. | | N | N | | FORT UNION | 2231 ft. | | N | N | | MESAVERDE | 3640 ft. | | N | N | | CAMEO | 6321 ft. | | N | N | | ROLLINS | 6782 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 6/3/2009 Interval Top: 5050 ft. Interval Bottom: 6680 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/22/2009 | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/21/2009 | | Treatment Summary: | 3034 GALS 7.5% HCL; 836,900# 30/50 SAND; 22,046 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6432 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/3/2009 | Test Method: | FLOWING | | Hours Tested: | 21 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1078 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1134 | | CASING_PRESS | 1571 | | MCF_GAS | 993 | | TUBING_PRESS | 706 |
| | Perforation Data: | | Interval Top: | 5050 ft. | # Of Holes: | 115 | | Interval Bottom: | 6680 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 11 |
| Total Gas Produced (MCF) | 7940 |
| GOR | 721818 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.785 |
| Average MCFE per Day | 21.941 |
