Wellbore #00 Wellbore Classification: GW Status: PR - 7/16/2008 Measured TD: 6776 ft. Vertical TD: 6536 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/16/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20084810 | Expiration Date: | 9/21/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2542 FNL 321 FEL | | Bottom Hole Location: | Sec:33 Twp: 6S 96W | Footage: 2542 FNL 321 FEL | | Proposed Depth/Form: | 6734 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-8 , Unit Acreage: 160, Drill Unit: NE/4 |
| | |

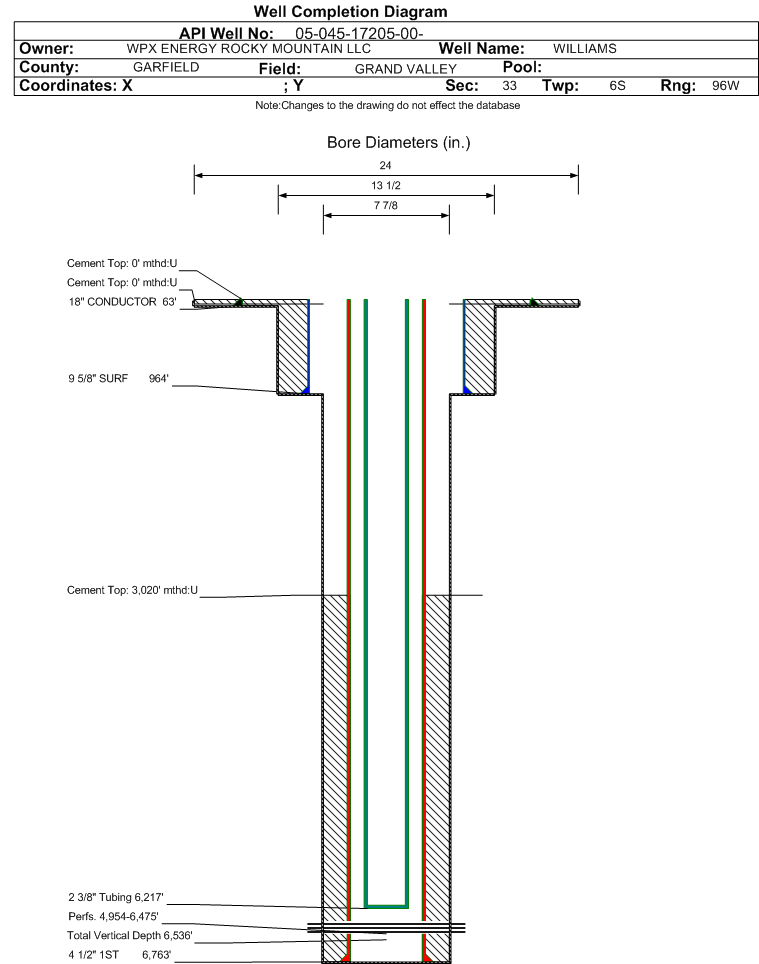

| Wellbore Completed | | Completion Date: | 4/1/2009 | | Spud Date: | 3/24/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 6776 ft. | Measured PB depth: | 6728 ft. | | True Vertical TD: | 6536 ft. | True Vertical PB depth: | 6488 ft. | | Top PZ Location: | Sec:33 Twp: 6S 96W | Footage: 2523 FNL 297 FEL | | Bottom Hole Location: | Sec:33 Twp: 6S 96W | Footage: 2523 FNL 297 FEL | | Log Types: | CBL;RESERVOIR MONITOR TOOL ELITE, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 63 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 964 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 281, Top: 0 ft., Bottom: 964 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6763 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 934, Top: 3020 ft., Bottom: 6763 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1823 ft. | | N | N | | MESAVERDE | 3573 ft. | | N | N | | CAMEO | 6157 ft. | | N | N | | ROLLINS | 6634 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 6/28/2009 Interval Top: 4954 ft. Interval Bottom: 6475 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/22/2009 | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/21/2009 | | Treatment Summary: | 2526 GALS 7 1/2% HCL; 690500# 30/50 SAND; 18812 BBLS SLICKWATER; |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6217 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/28/2009 | Test Method: | FLOWING | | Hours Tested: | 21 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1073 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CASING_PRESS | 708 | | MCF_GAS | 878 | | TUBING_PRESS | 242 |
| | Perforation Data: | | Interval Top: | 4954 ft. | # Of Holes: | 90 | | Interval Bottom: | 6475 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 25 |
| Total Gas Produced (MCF) | 15742 |
| GOR | 629680 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.508 |
| Average MCFE per Day | 43.539 |
| Federal Financial Assurance | i | |
|
|
