COGIS - WELL SCOUT CARD

Related Insp MIT GIS Old GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-17197		Well Classification: GW	Status: PR - 12/31/2009
Well Name/No:	SAVAGE #RWF 23-28 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PR	Status Date	12/31/2009
FacilityID:	298418	LocationID:	335282
County:	GARFIELD #045	Location:	SWSW 28 6S94W 6
Field:	RULISON - #75400	Elevation:	5541 ft.
Basin:	PICEANCE BASIN
Planned Location:	440FSL 684 FWL	Lat/Long: 39.490306 / -107.899637	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.490304 / -107.899634	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 12/31/2009 Measured TD: 8340 ft. Vertical TD: 7909 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 12/31/2009
Wellbore Permit			DIRECTIONAL
Permit #:	20084759	Expiration Date:	9/18/2009
Proposed Top PZ Location:	Sec: Twp:	Footage: 2423 FSL 767 FWL
Bottom Hole Location:	Sec:28 Twp: 6S 94W	Footage: 2423 FSL 767 FWL
Proposed Depth/Form:	8321 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 320, Drill Unit: W/2

Wellbore Completed
Completion Date:	5/1/2009
Spud Date:	4/14/2009	Spud Date Is:	ACTUAL
Measured TD:	8340 ft.	Measured PB depth:	8291 ft.
True Vertical TD:	7909 ft.	True Vertical PB depth:	7860 ft.
Top PZ Location:	Sec:28 Twp: 6S 94W	Footage: 2447 FSL 707 FWL
Bottom Hole Location:	Sec:28 Twp: 6S 94W	Footage: 2416 FSL 696 FWL
Log Types:	CBL, MUD; TRIP-COMBO
Log Types:	CBL, RESERVOIR MONITOR TOOL ELITE

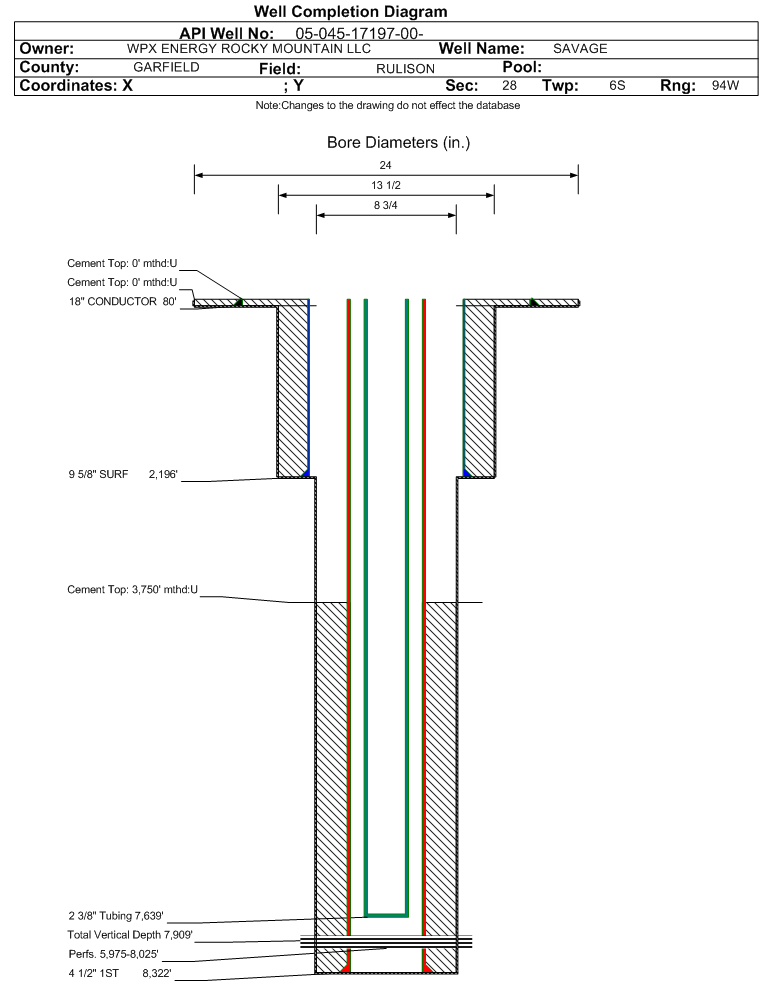

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 30, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2196 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 539, Top: 0 ft., Bottom: 2196 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8322 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 1253, Top: 3750 ft., Bottom: 8322 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	1914 ft.
MESAVERDE	4654 ft.
CAMEO	7345 ft.
ROLLINS	8233 ft.

Formation WFCM Formation Classification: GW Status: PR - 12/31/2009 Interval Top: 5975 ft. Interval Bottom: 8025 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	10/28/2009	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	10/20/2009
Treatment Summary:	3536 GALS 7 1/2% HCL; 706600 # 20/40 SAND; 17600 BBLS SLICKWATER (SUMMARY)

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7639 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	12/31/2009	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1062
CALC_MCF_GAS	1137
CASING_PRESS	1797
MCF_GAS	1137
TUBING_PRESS	1657

Perforation Data:
Interval Top:	5975 ft.	# Of Holes:	145
Interval Bottom:	8025 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

February 2025 - January 2026	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	32
Total Gas Produced (MCF)	25543
GOR	798218
GOR Determination	MCFE
Average BOE per Day	12.153
Average MCFE per Day	70.519

Federal Financial Assurance

Tribal Well
