COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-17117		Well Classification: GW Status: PR - 1/20/2010
Well Name/No:JACKSON #44C-28-692
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/20/2010
FacilityID:298301LocationID:335505
County:GARFIELD #045Location:NWSE 28 6S92W 6
Field:MAMM CREEK - #52500Elevation:5784 ft.
Basin:PICEANCE BASIN
Planned Location:1452FNL  1515 FELLat/Long: 39.494699 / -107.667484Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.494701 / -107.667485Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/20/2010             Measured TD: 7231 ft.    Vertical TD: 7078 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/20/2010
Wellbore PermitDIRECTIONAL
Permit #:20085302 Expiration Date:9/11/2009
Proposed Top PZ Location:Sec: Twp: Footage: 855 FSL  660 FEL
Bottom Hole Location:Sec:28 Twp: 6S 92W Footage: 855 FSL  660 FEL
Proposed Depth/Form:7234 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-10 , Unit Acreage: 160, Drill Unit: SE/4
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 160, Drill Unit: SE/4
Wellbore Completed
Completion Date:6/14/2009
Spud Date:11/18/2008Spud Date Is:ACTUAL
Measured TD:7231 ft.Measured PB depth:7220 ft.
True Vertical TD:7078 ft.True Vertical PB depth:7067 ft.
Top PZ Location:Sec:28 Twp: 6S 92WFootage: 868 FSL  649 FEL
Bottom Hole Location:Sec:28 Twp: 6S 92WFootage: 868 FSL  649 FEL
Log Types:TRIPLE COMBO, TEMP LOG, CBL, MUD, CN/CD, AISF, HOLE VOL

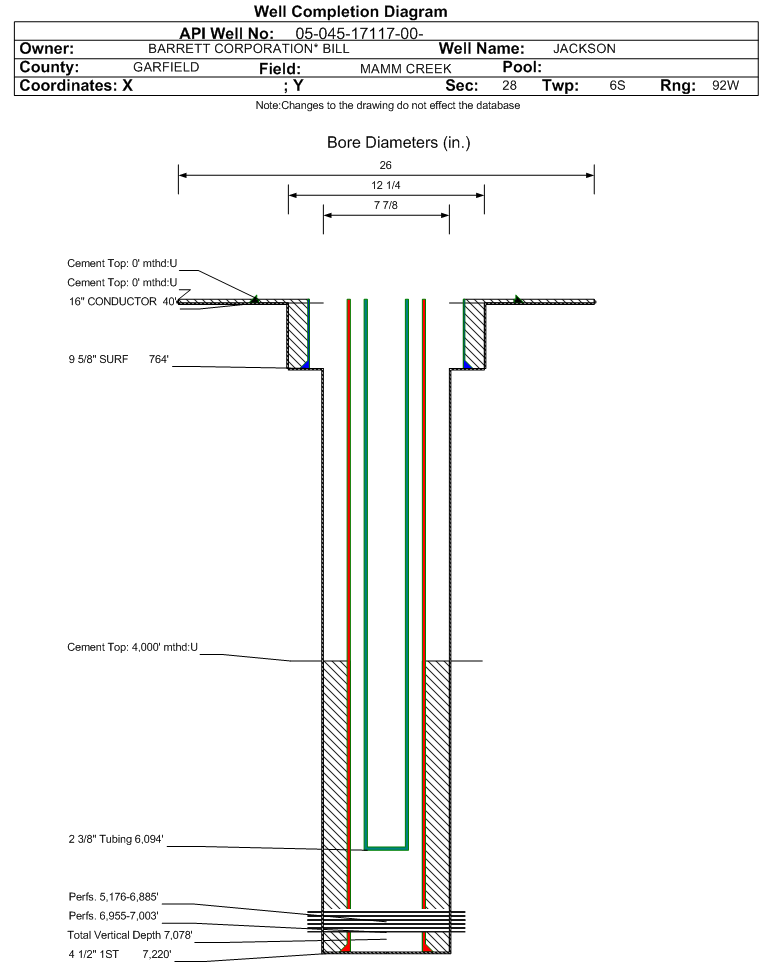

Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 764 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 764 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7220 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 575, Top: 4000 ft., Bottom: 7231 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3146 ft.NN
ROLLINS6913 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 1/20/2010                 Interval Top: 6955 ft.    Interval Bottom: 7003 ft.

 Completed Information for Formation ROLLINS
1st Production Date:12/25/2009Choke Size:0.375 in.
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/15/2009
Treatment Summary:93100 LBS 20-40 SAND, 10630 LBS SLC 20-40, 4286 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:6094 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/20/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1140
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 50
CASING_PRESS 860
MCF_GAS 50
TUBING_PRESS 820
Perforation Data:
Interval Top:6955 ft.# Of Holes:8
Interval Bottom:7003 ft.Hole Size:0.3 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 1/20/2010                 Interval Top: 5176 ft.    Interval Bottom: 6885 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:12/25/2009Choke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/15/2009
Treatment Summary:837990 LBS 20-40 SAND, 95670 LBS SLC 20-40, 38568 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:6094 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/20/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 198
BBLS_OIL 14
BTU_GAS 1140
CALC_BBLS_H2O 198
CALC_BBLS_OIL 14
CALC_GOR 65861
CALC_MCF_GAS 948
CASING_PRESS 860
MCF_GAS 948
TUBING_PRESS 820
Perforation Data:
Interval Top:5176 ft.# Of Holes:156
Interval Bottom:6885 ft.Hole Size:0.3 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)141
Total Gas Produced (MCF)27236
GOR193163
GOR DeterminationMCFE
Average BOE per Day13.256
Average MCFE per Day76.894

 Federal Financial Assurance  i

 Tribal Well  i No
