COGIS - WELL SCOUT CARD

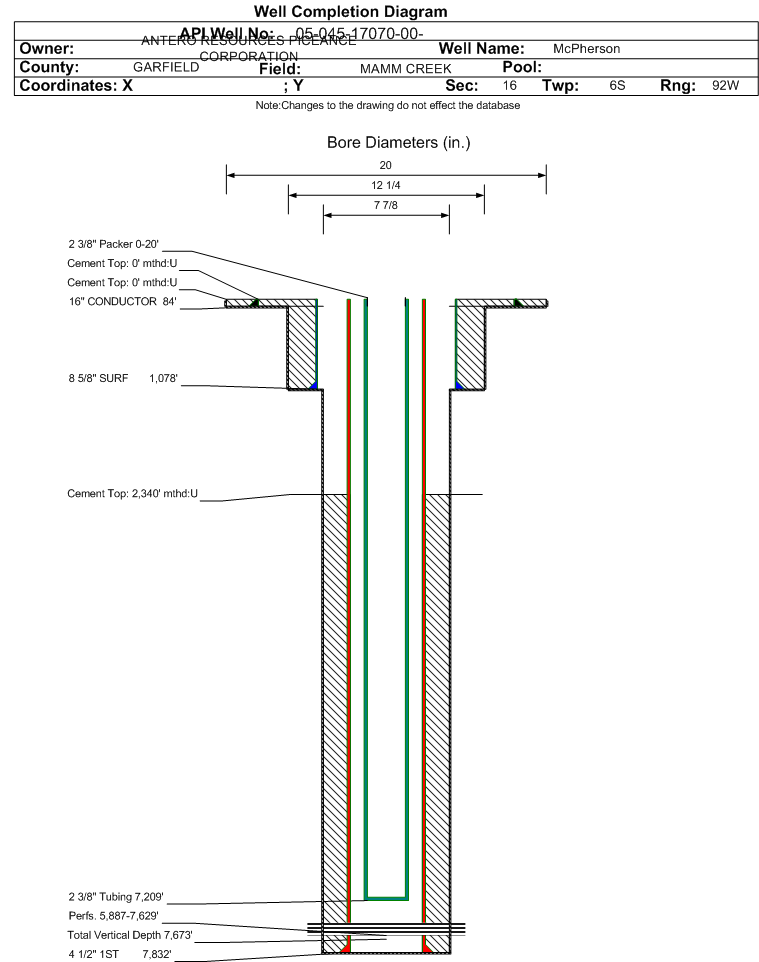

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-17070		Well Classification: GW Status: PR - 5/23/2012
Well Name/No:MCPHERSON #A12
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/23/2012
FacilityID:298103LocationID:335539
County:GARFIELD #045Location:NENW 16 6S92W 6
Field:MAMM CREEK - #52500Elevation:5449 ft.
Basin:PICEANCE BASIN
Planned Location:1043FNL  1586 FWLLat/Long: 39.531114 / -107.675613Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.531114 / -107.675614Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 5/10/2012
End Date: 5/10/2012
Reported: 7/16/2012
Days to report: 67
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/23/2012             Measured TD: 7842 ft.    Vertical TD: 7673 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/23/2012
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:5/30/2013
Proposed Top PZ Location:Sec:16 Twp: 6S 92W Footage: 728 FNL  2208 FEL
Bottom Hole Location:Sec:16 Twp: 6S 92W Footage: 728 FNL  2208 FEL
Proposed Depth/Form:7944 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-25 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WFILS , Formation: WILLIAMS FORK-ILES , Order: 191-34 , Unit Acreage: 160, Drill Unit: NW
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-17 , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 55# , Citings Type: PLANNED
Cement:Sacks: 177, Top: 0 ft., Bottom: 60 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 24/32# , Citings Type: PLANNED
Cement:Sacks: 416, Top: 0 ft., Bottom: 1000 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7944 ft., Weight: 11.6# , Citings Type: PLANNED
Cement:Sacks: 356, Top: , Bottom: 7944 ft.
Casing:String Type: 2ND, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 8746 ft., Weight: 17# , Citings Type: PLANNED
Cement:Sacks: 798, Top: 4271 ft., Bottom: 8746 ft.
Wellbore Completed
Completion Date:3/31/2012
Spud Date:2/14/2012Spud Date Is:ACTUAL
Measured TD:7842 ft.Measured PB depth:7785 ft.
True Vertical TD:7673 ft.True Vertical PB depth:7623 ft.
Top PZ Location:Sec:16 Twp: 6S 92WFootage: 490 FNL  2509 FWL
Bottom Hole Location:Sec:16 Twp: 6S 92WFootage: 495 FNL  2516 FWL
Log Types:CBL, Temp, Mud
Log Types:CBL, Temp, Mud
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 84 ft., Weight: 84# , Citings Type: ACTUAL
Cement:Sacks: 177, Top: 0 ft., Bottom: 84 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1078 ft., Weight: 32# , Citings Type: ACTUAL
Cement:Sacks: 365, Top: 0 ft., Bottom: 1094 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7832 ft., Weight: 11.6# , Citings Type: ACTUAL
Cement:Sacks: 1020, Top: 2340 ft., Bottom: 7842 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3995 ft.
ROLLINS7656 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/23/2012                 Interval Top: 5887 ft.    Interval Bottom: 7629 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:5/4/2012Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/29/2012
Treatment Summary:WFCM - Frac'd with 90,593 bbls 2% KCL Slickwater, 1,713,900 lbs 20/40 sand and 180,900 lbs 20/40 SLC sand.
Tubing Size:2.375 in.Tubing Setting Depth:7209 ft.
Tubing Packer Depth:0 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/23/2012Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 640
BTU_GAS 1143
CALC_BBLS_H2O 640
CALC_MCF_GAS 1196
CASING_PRESS 675
MCF_GAS 1196
TUBING_PRESS 1375
Perforation Data:
Interval Top:5887 ft.# Of Holes:206
Interval Bottom:7629 ft.Hole Size:0.37 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)359
Total Gas Produced (MCF)22127
GOR61635
GOR DeterminationMCFE
Average BOE per Day11.441
Average MCFE per Day66.376

 Federal Financial Assurance  i

 Tribal Well  i No
