COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-16999		Well Classification: GW	Status: PR - 4/1/2023
Well Name/No:	DIAMOND ELK #PA 444-36 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PR	Status Date	4/1/2023
FacilityID:	297897	LocationID:	335029
County:	GARFIELD #045	Location:	SWSE 36 6S95W 6
Field:	PARACHUTE - #67350	Elevation:	5447 ft.
Basin:	PICEANCE BASIN
Planned Location:	969FSL 2454 FEL	Lat/Long: 39.476462 / -107.946561	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.476459 / -107.946559	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 4/1/2023 Measured TD: 8256 ft. Vertical TD: 7795 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 4/1/2023
Wellbore Permit			DIRECTIONAL
Permit #:	20091189	Expiration Date:	7/12/2010
Proposed Top PZ Location:	Sec: Twp:	Footage: 480 FSL 247 FEL
Bottom Hole Location:	Sec:36 Twp: 6S 95W	Footage: 480 FSL 247 FEL
Proposed Depth/Form:	8286 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 320, Drill Unit: S2

Wellbore Completed
Completion Date:	8/9/2009
Spud Date:	7/31/2009	Spud Date Is:	ACTUAL
Measured TD:	8256 ft.	Measured PB depth:	8200 ft.
True Vertical TD:	7795 ft.	True Vertical PB depth:	7739 ft.
Top PZ Location:	Sec:36 Twp: 6S 95W	Footage: 583 FSL 270 FEL
Bottom Hole Location:	Sec:36 Twp: 6S 95W	Footage: 583 FSL 270 FEL

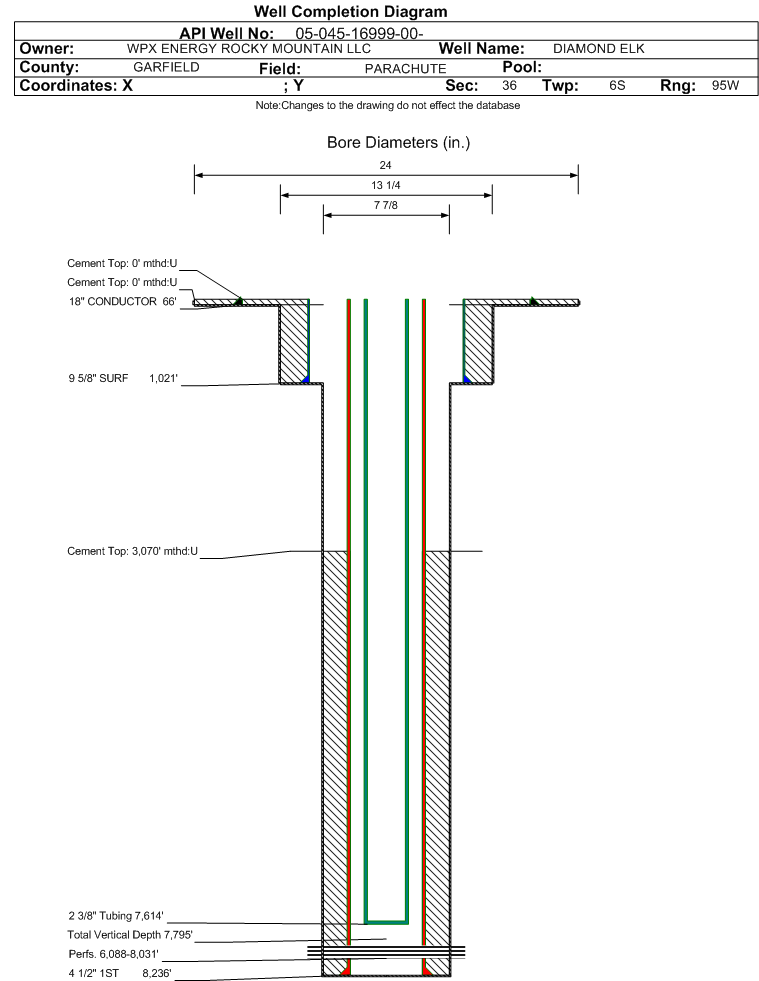

Log Types:	CBL; RESERVOIR MONITOR TOOL ELITE, MUD
Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 66 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: , Top: 0 ft., Bottom: 66 ft., Determination Method:
Casing:	String Type: SURF, Hole Size: 13.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1021 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 280, Top: 0 ft., Bottom: 1021 ft., Determination Method:
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8236 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 1000, Top: 3070 ft., Bottom: 8236 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	1942 ft.		N	N
MESAVERDE	4597 ft.		N	N
CAMEO	7176 ft.		N	N
ROLLINS	8190 ft.		N	N

Formation WFCM Formation Classification: GW Status: PR - 4/1/2023 Interval Top: 6088 ft. Interval Bottom: 8031 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	10/7/2009	Choke Size:	0.172 in.
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	9/30/2009
Treatment Summary:	3497 GALS 7.5% HCL; 927600# 30/50 SAND; 24913 BBLS SLICKWATER (SUMMARY)

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7614 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	11/30/2009	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1033
CASING_PRESS	1998
MCF_GAS	995
TUBING_PRESS	1870

Perforation Data:
Interval Top:	6088 ft.	# Of Holes:	119
Interval Bottom:	8031 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	23
Total Gas Produced (MCF)	18364
GOR	798434
GOR Determination	MCFE
Average BOE per Day	8.739
Average MCFE per Day	50.701
