COGIS - WELL SCOUT CARD

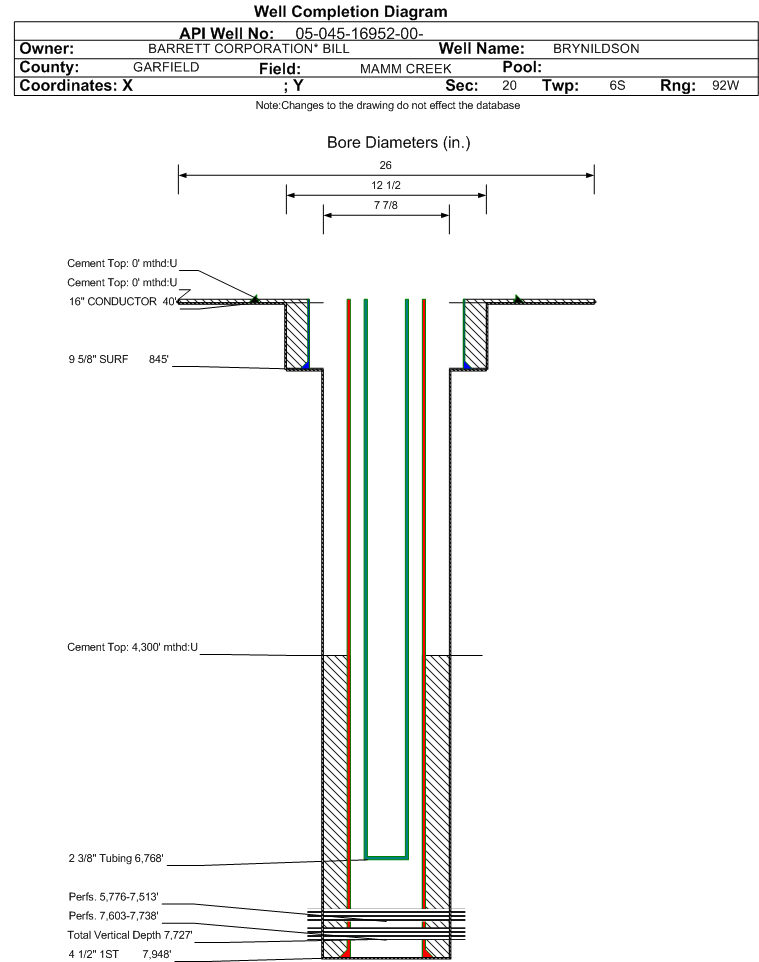

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-16952		Well Classification: GW Status: PR - 3/16/2009
Well Name/No:BRYNILDSON #12C-20-692
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/16/2009
FacilityID:297757LocationID:335379
County:GARFIELD #045Location:NWSW 20 6S92W 6
Field:MAMM CREEK - #52500Elevation:5669 ft.
Basin:PICEANCE BASIN
Planned Location:1895FSL  602 FWLLat/Long: 39.510261 / -107.697666Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.510265 / -107.697664Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/16/2009             Measured TD: 7973 ft.    Vertical TD: 7727 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/16/2009
Wellbore PermitDIRECTIONAL
Permit #:20084685 Expiration Date:8/13/2009
Proposed Top PZ Location:Sec: Twp: Footage: 1800 FNL  665 FWL
Bottom Hole Location:Sec:20 Twp: 6S 92W Footage: 1800 FNL  665 FWL
Proposed Depth/Form:7942 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-10 , Unit Acreage: 640, Drill Unit: ALL
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 640, Drill Unit: ALL
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: , Depth: 40 ft., Weight: 42 , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 800 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 250, Top: 0 ft., Bottom: 800 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7942 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 470, Top: 500 ft., Bottom: 7942 ft.
Wellbore Completed
Completion Date:9/13/2008
Spud Date:8/24/2008Spud Date Is:ACTUAL
Measured TD:7973 ft.Measured PB depth:7948 ft.
True Vertical TD:7727 ft.True Vertical PB depth:7702 ft.
Top PZ Location:Sec:20 Twp: 6S 92WFootage: 1950 FNL  530 FWL
Bottom Hole Location:Sec:20 Twp: 6S 92WFootage: 1960 FNL  544 FWL
Log Types:TRIPLE COMBO, TEMP, CBL
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.5 in., Size: 9.625 in., Top: 0 ft., Depth: 845 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 831 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7948 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 642, Top: 4300 ft., Bottom: 7948 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3808 ft.NN
ROLLINS7555 ft.NN

Formation RLNS                     Formation Classification:  OW                     Status:  PR - 3/16/2009                 Interval Top: 7603 ft.    Interval Bottom: 7738 ft.

 Completed Information for Formation ROLLINS
1st Production Date:2/21/2009Choke Size:
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/16/2009
Treatment Summary:92340 LBS 20-40 SAND, 10260 LBS OPTIPROP 20-40, 4626 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:6768 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/16/2009Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1030
CALC_MCF_GAS 101
CASING_PRESS 2000
MCF_GAS 101
TUBING_PRESS 1400
Perforation Data:
Interval Top:7603 ft.# Of Holes:18
Interval Bottom:7738 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 3/16/2009                 Interval Top: 5776 ft.    Interval Bottom: 7513 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:2/21/2009Choke Size:
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/16/2009
Treatment Summary:1155560 LBS 20-40 SAND, 130140 LBS OPTIPROP 20-40, 58159 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:6768 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/16/2009Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 73
BBLS_OIL 8
BTU_GAS 1030
CALC_BBLS_H2O 73
CALC_BBLS_OIL 8
CALC_GOR 239750
CALC_MCF_GAS 1918
CASING_PRESS 2000
GRAVITY_OIL 52
MCF_GAS 1918
TUBING_PRESS 1400
Perforation Data:
Interval Top:5776 ft.# Of Holes:162
Interval Bottom:7513 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)137
Total Gas Produced (MCF)18437
GOR134576
GOR DeterminationMCFE
Average BOE per Day9.085
Average MCFE per Day52.688

 Federal Financial Assurance  i

 Tribal Well  i No
