Wellbore #00 Wellbore Classification: GW Status: PR - 4/30/2009 Measured TD: 7091 ft. Vertical TD: 6535 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/30/2009 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20083754 | Expiration Date: | 8/12/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 658 FSL 1463 FWL | | Bottom Hole Location: | Sec:32 Twp: 6S 96W | Footage: 658 FSL 1463 FWL | | Proposed Depth/Form: | 7040 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 320, Drill Unit: W2/32 |
| | |

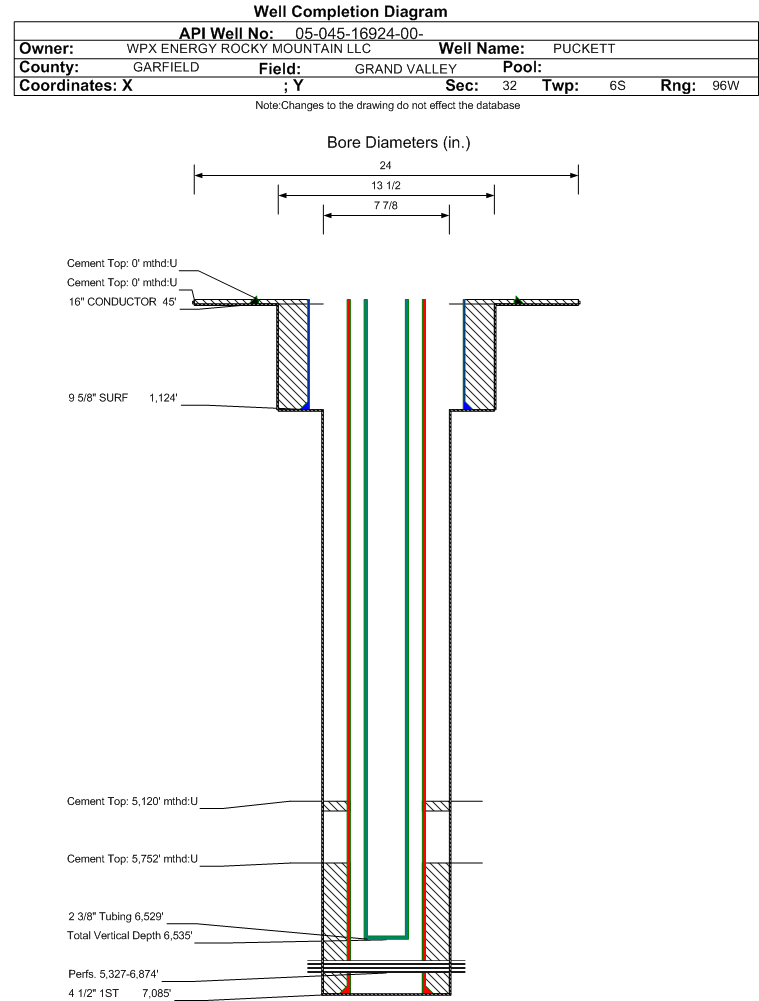

| Wellbore Completed | | Completion Date: | 1/8/2009 | | Spud Date: | 12/27/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 7091 ft. | Measured PB depth: | 7056 ft. | | True Vertical TD: | 6535 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:32 Twp: 6S 96W | Footage: 652 FSL 1422 FWL | | Bottom Hole Location: | Sec:32 Twp: 6S 96W | Footage: 652 FSL 1422 FWL | | Log Types: | CBL; R M T E; MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1124 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 325, Top: 0 ft., Bottom: 1124 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7085 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 975, Top: 5752 ft., Bottom: 7085 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 150, Top: 5120 ft., Bottom: 5221 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2152 ft. | | N | N | | MESAVERDE | 3914 ft. | | N | N | | CAMEO | 6436 ft. | | N | N | | ROLLINS | 6936 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 4/30/2009 Interval Top: 5327 ft. Interval Bottom: 6874 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 2/12/2009 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/11/2009 | | Treatment Summary: | 2499 GALS 7.5% HCL; 669,000# 30/50 SAND; 18,446 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6529 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/30/2009 | Test Method: | FLOWING | | Hours Tested: | 21 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1099 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1256 | | CASING_PRESS | 1456 | | MCF_GAS | 1099 | | TUBING_PRESS | 1324 |
| | Perforation Data: | | Interval Top: | 5327 ft. | # Of Holes: | 96 | | Interval Bottom: | 6874 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 26 |
| Total Gas Produced (MCF) | 17249 |
| GOR | 663423 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.211 |
| Average MCFE per Day | 47.644 |
| Federal Financial Assurance | i | Y |
|
|
