Wellbore #00 Wellbore Classification: GW Status: PR - 6/1/2011 Measured TD: 8108 ft. Vertical TD: 7718 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/1/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20091086 | Expiration Date: | 7/12/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1959 FSL 694 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 94W | Footage: 1959 FSL 694 FEL | | Proposed Depth/Form: | 8231 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-66 , Unit Acreage: 640, Drill Unit: ALL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1918 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 1918 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8231 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

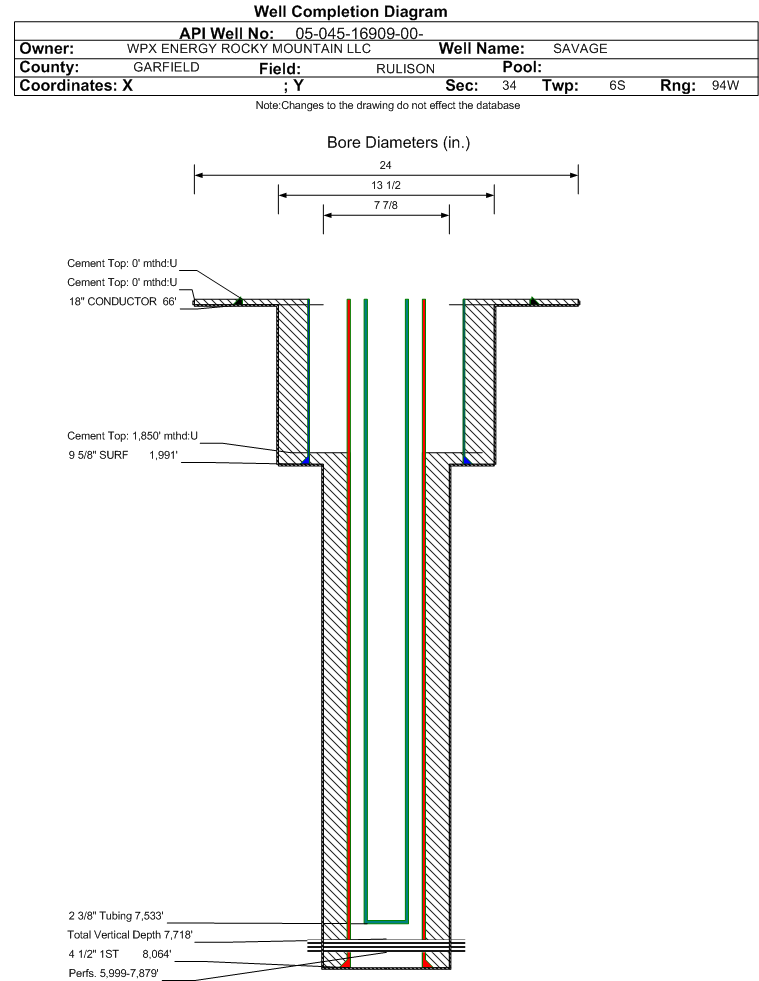

| Wellbore Completed | | Completion Date: | 3/24/2010 | | Spud Date: | 3/14/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 8108 ft. | Measured PB depth: | 8032 ft. | | True Vertical TD: | 7718 ft. | True Vertical PB depth: | 7642 ft. | | Top PZ Location: | Sec:34 Twp: 6S 94W | Footage: 1984 FSL 673 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 94W | Footage: 1960 FSL 666 FEL | | Log Types: | CBL, RESeRVOIR MONITOR TOOL ELITE; mud | | Log Types: | CBL,RPM | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 66 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 66 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1991 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 496, Top: 0 ft., Bottom: 1991 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8064 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1415, Top: 1850 ft., Bottom: 8064 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 1606 ft. | | | | | WASATCH G | 1606 ft. | | | | | MESAVERDE | 4384 ft. | | | | | CAMEO | 7164 ft. | | | | | ROLLINS | 8024 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 6/1/2011 Interval Top: 5999 ft. Interval Bottom: 7879 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/24/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 4/20/2010 | | Treatment Summary: | 350 GALS 7 1/2% HCL; 956600# 20/40 SAND; 25404 BBLS SLICKWATER(SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7533 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/31/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1047 | | CASING_PRESS | 2401 | | MCF_GAS | 1106 | | TUBING_PRESS | 2124 |
| | Perforation Data: | | Interval Top: | 5999 ft. | # Of Holes: | 152 | | Interval Bottom: | 7879 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 29 |
| Total Gas Produced (MCF) | 16742 |
| GOR | 577310 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.987 |
| Average MCFE per Day | 46.339 |
| Federal Financial Assurance | i | |
|
|
